Name: UL1032 Certified Battery Cable with 1000V Rated Voltage and 90C Working Temperature for New Energy Applications
Brand: MYSUN
Price: 1 USD

Home >

UL1032 Certified Battery Cable with 1000V Rated Voltage and 90C Working Temperature for New Energy Applications

Categories	Battery Cable
Model Number:	UL1032
Brand Name:	MYSUN
Place of Origin:	Guangdong, China
MOQ:	5
Conductor Material:	Copper
Insulation Material:	PVC
Rated Voltage:	1000VAC
Working Temperature:	90C
Wire Sizes:	4/0AWG, 3/0AWG, 2/0AWG, 1/0AWG, 2AWG, 4AWG, 6AWG, 8AWG, 10AWG, 7AWG, 9AWG, 12AWG, 14AWG, 16AWG, 18AWG, 20AWG, 22AWG, 24AWG, 26AWG, 28AWG
Conductor Construction:	7/0.127 to 105/0.254
Conductor Diameter:	0.38mm to 3.02mm
Insulation Thickness:	0.78mm
Insulation Diameter:	1.94mm to 4.91mm
Jacket Thickness:	0.13-1.0mm
Max Conductor Resistance:	239Ω/KM to 2.813Ω/KM
Unit Length:	305M to 1220M
Covering Thickness:	0.78mm
Covering Diameter:	2.06mm to 4.58mm
Type:	High Voltage

Contact Now

Add to Cart

Company Info.

Shenzhen Mysun Insulation Materials Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

UL1032 Certified Battery Cable with 1000V Rated Voltage and 90C Working Temperature for New Energy Applications

UL1032 PVC Wire - 1000V 90°C High Voltage New Energy Cable

Supplies Fortune 500 Companies - Top New Energy Cable Supplier in China

Product Specifications

Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	Thickness (mm)	Thickness (mm)	Max. Cond Resistance (Ω/KM)	Unit Length (M)(Ft)
28	7/0.127	0.38	0.78	1.94	0.13-1.0	0.78	239	1220/4000
26	7/0.16	0.50	0.78	2.06	0.13-1.0	0.78	150	610/2000
24	7/0.20	0.60	0.78	2.16	0.13-1.0	0.78	94.2	610/2000
22	17/0.16	0.76	0.78	2.32	0.13-1.0	0.78	59.4	610/2000
20	21/0.18	0.94	0.78	2.50	0.13-1.0	0.78	36.7	305/1000
18	16/0.254	1.19	0.78	2.75	0.13-1.0	0.78	23.2	610/2000
16	26/0.254	1.50	0.78	3.06	0.13-1.0	0.78	14.6	610/2000
14	41/0.254	1.89	0.78	3.45	0.13-1.0	0.78	8.96	610/2000
12	65/0.254	2.37	0.78	3.93	0.13-1.0	0.78	5.64	610/2000
10	105/0.254	3.02	0.78	4.58	0.13-1.0	0.78	3.55	610/2000
9	37/0.475	3.35	0.78	4.91	0.13-1.0	0.78	2.813	610/2000

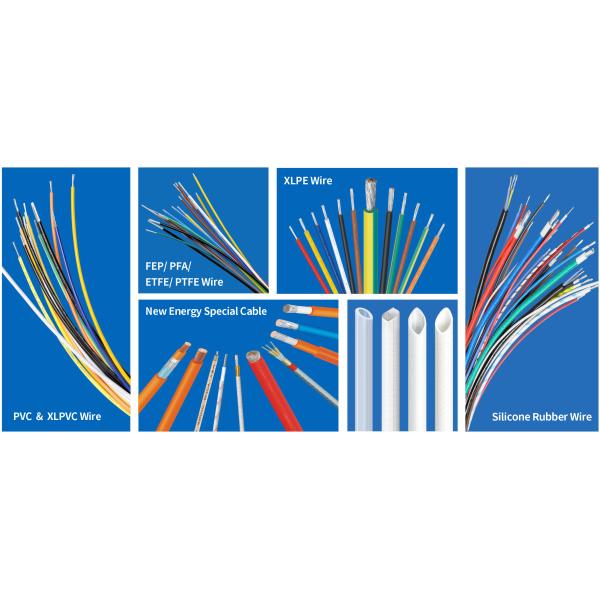

Our Products

Application

Company Profile

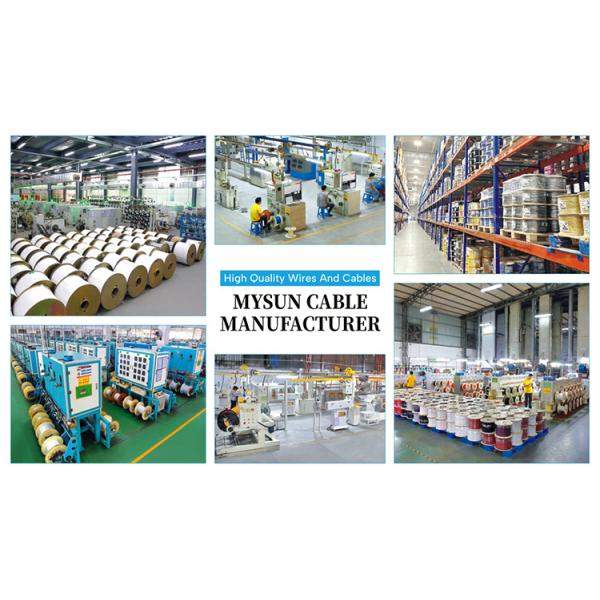

Manufacturing facilities and capabilities

Our Overseas Clients

Exhibition

Certifications

Frequently Asked Questions

Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
What Can We Provide? We provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment currency: USD, EUR, CNY. Accepted payment type: T/T, L/C, PayPal, Western Union, Cash.
