Large Format Inkjet Plotter with 230ml Refillable Ink Cartridge, 120sqm/h Printing Speed and EPSON TX806 Printing Head

Categories Large Format Inkjet Plotter
Place of Origin: Hubei, China
Brand Name: KAEMI or OEM
Price: $1,760.00/sets 1-2 sets
MOQ: 1set
Condition: New
Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction works , Other, Advertising Company, All Other Fileds Need Cut Cutting or Printing
Weight (KG): 100
Showroom Location: Turkey, Viet Nam, Bangladesh, Cambodia
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Motor, Mother Board and Drivers
Warranty: 1 Year, 1 Year Warranty for Full Machine
Product Name: Hot Factory Outlet EPSONN Printing Head Big Ink Tank Cutting Plotter
Power: 300-400W
Printing Resolution: 150-600 DPI
Connection Port: Network/LAN Port
Printing Paper: 40-80gsm White Plotter Paper; 80-250gsm Kraft Paper
Ink Cartridge: Refillable 230ml Big Ink Cartridge
Cutting Function: Yes, with Cutting Blade to Cut Down Paper After Printing
Printing Speed: 120sqm/h Dual Way Fast Printing
Application: Paper Pattern, Graph,Contour Printing
Support Files Formats: HPGL, PLT, DXF, HPGL Language, Compatible with Various CAD Softwares
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Large Format Inkjet Plotter with 230ml Refillable Ink Cartridge, 120sqm/h Printing Speed and EPSON TX806 Printing Head

EPSON Printing Head Big Ink Tank Cutting Plotter
This high-performance cutting plotter features a large 230ml refillable ink cartridge and EPSON TX806 printing head, delivering exceptional value for industrial printing applications.
Key Features
  • Large 230ml refillable ink cartridge (standard HP45 type plotters use only 42ml)
  • High-quality EPSON TX806 printing head with fast dual-way printing
  • Printing speed of 120 square meters per hour
  • Quality triangle cutting blade for automatic paper cutting after printing

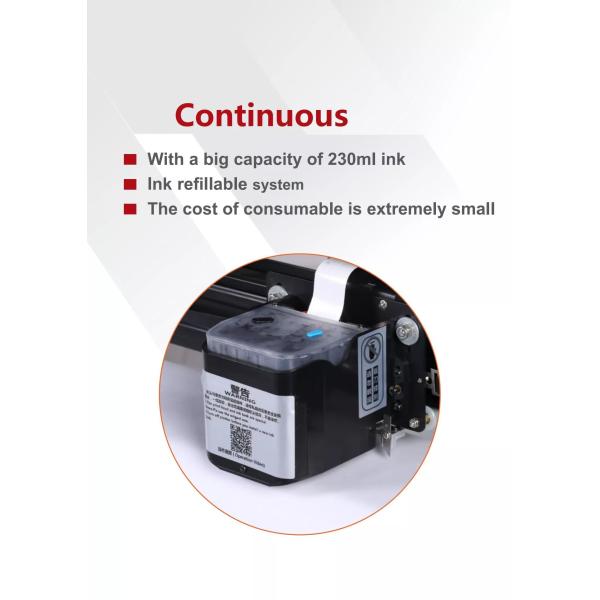

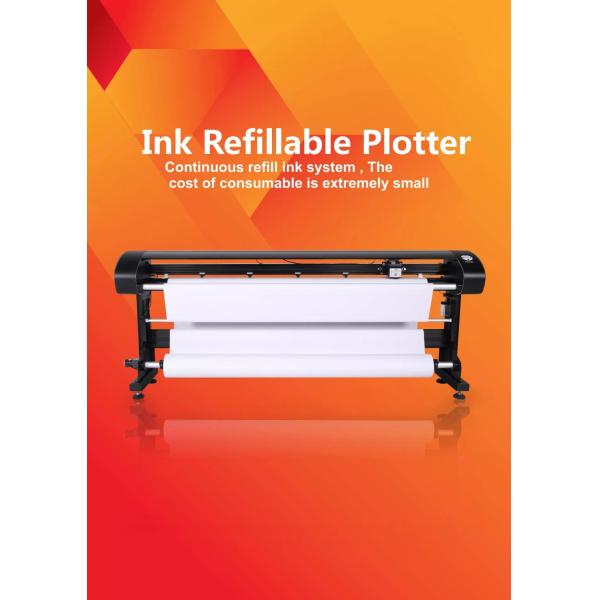

EPSON Big Ink Tank Cutting Plotter front view Plotter side view showing paper handling Close-up of printing mechanism Control panel interface Ink cartridge system detail Paper feeding system Cutting blade mechanism Internal components view Machine structure detail Complete plotter setup
Technical Specifications
Model #EP806-130EP806-170EP806-190EP806-210EP806-230EP806-250
Plot width125cm165cm185cm205cm225cm245cm
Paper width130cm170cm190cm210cm230cm250cm
Plot speed90 square meters per hour
File formatHPGL language, compatible with various CAD software
Cutting functionAuto cutting after plotting one marker
Resolution150-600DPI
Print head typeEpson TX806
Print head safetyInktruck reset automatic protection
Ink tank capacity230ml
Line qualityClean, smooth, and adjustable line thickness
Clean print headAuto cleaning print head
Load paper systemFront loading, Maximum roll diameter 28cm
Feed paper systemHidden infrared precision paper system, accurate and efficient
Take-up paper systemTake-up plotting mode or drop-on-floor plotting mode
Paper compatibilityWhite plotter paper 40-80 gsm, Kraft paper 80-250 gsm
InterfaceNetwork (LAN Port or Ethernet Port)
Power supply220V/50Hz
PanelSimple, convenient and durable
Machine structureAluminum alloy structure, high machine precision, long lifetime
Software centerDrive-free, fully automatic online, support multiple independent control
Product Configuration

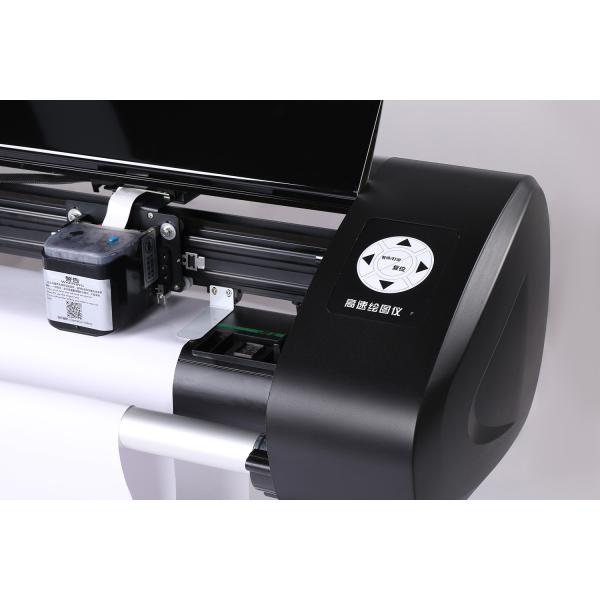

230ml Refillable Big Ink Cartridge
230ml Refillable Big Ink Cartridge
Triangle Cutting Blade
Triangle Blade to Cut Down Paper

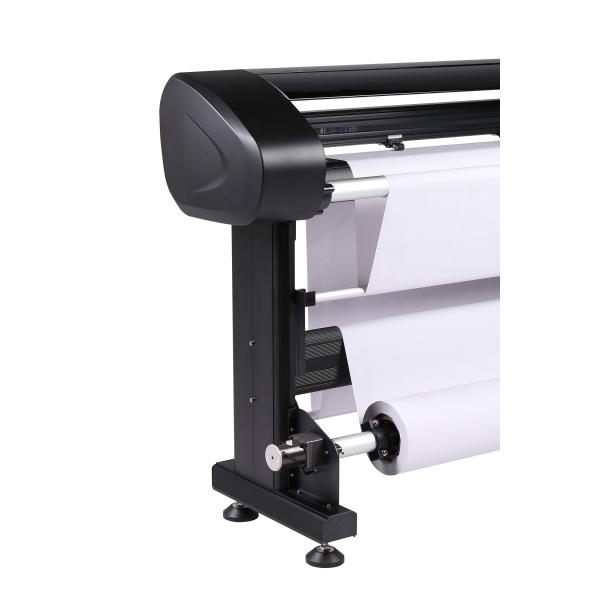

High Quality Speed Motor
High Quality & Speed Motor
Manufacturer Profile
Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained numerous software copyright and patent certificates. Based on profound understanding of China's garment, luggage and footwear industry, GM series cutting machines combine the essence of Chinese and foreign technologies, closely integrating world's advanced technology with Chinese manufacturing advantages.
GEMEI manufacturing facility CCTV Listed Brand certification National High Tech Enterprise recognition Patents and certificates
Packaging Options
Plotter Quality Wooden Case
Plotter Quality Wooden Case
Flatbed Cutter Wooden Case
Flatbed Cutter Wooden Case
CNC Digital Cutter Big Wooden Case
CNC Digital Cutter Big Wooden Case
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters in this field for 10 years.
Q: How do you pack these products?
A: Usually packed in wooden cases and can be packed according to export standards or your requirements.
Q: Is it customizable?
A: Yes, we have basic sizes commonly applied in the field and can customize according to your requirements.
Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or Skype.
Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days.
