| Categories | Anti Drone module-50W |
|---|---|
| Brand Name: | OEM/ODM |
| Model Number: | JYT-G5.2-50 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1Pc |
| Price: | Negotiate |
| Payment Terms: | T/T |
| Delivery Time: | 1-3 working days after payment received |
| Packaging Details: | Neutral Package |
Product Description
Product Parameters
Main Components :
1, Adjustable Bandwidth 2, Adjustable Bandwidth 3, Adjustable Driver Tube Voltage
4, Tube Voltage 5, Adjustable GAN Voltage 6, GAN Voltage 7, Isolation Protector
1.RF Data
| Item | Spec. | Remarks | |
| Frequency Range(MHz) | 5150-5350 | Bandwidth Range±10MHz | |
| Working Voltage | 28V | 24-30V | |
| Analog sweeping speed | 250KHz | ||
| Output Power (Max) | ≥47dBm | 50W | |
| Gain (Max) | 47±1 dB | ||
| Ripple in Band | ≤ 3 dB | Peak | |
| Bandwidth adjustment | Yes | By screw | |
| Center adjustment | Yes | By screw | |
| Enable control | Yes | 24-28V | |
| Output VSWR | ≤1.5 | ||

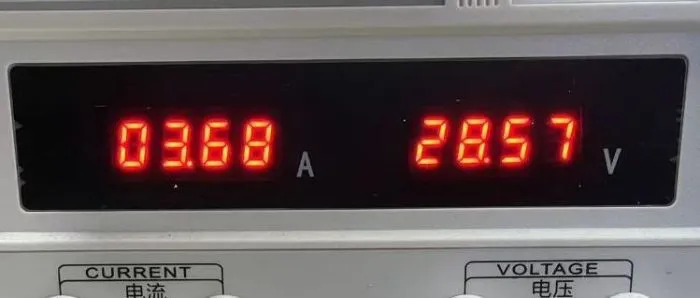

| Working current@+28V dc | ≤4.5A | ||
| High LowTemperature test | Working Temperature | -20~＋65℃ | Working properly |
| Gain Stability | ±1 dB | at -20℃~+55℃ | |
| Power stability | ±1 dB | at -20℃~+55℃ | |
| Power supply Port | Positive and negative lines | 24-28V; GND | |
| Center adjustment | SMA-Female | ||
| LED indicator light | Power ON/OFF | ||
| Dimension | 117*58*16 mm | ||
| Screw Size | 4-Ø3.20 mm | ||
| Weight | 180g | ||
2.Size
|
