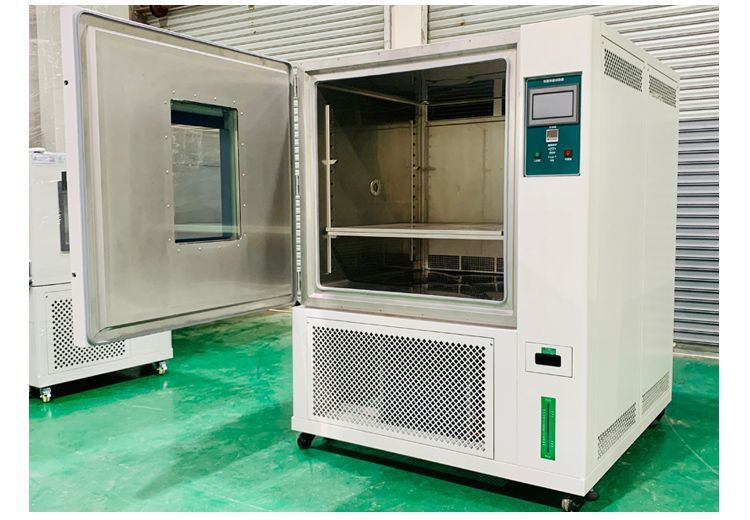

800L Programmable Constant Temperature and Humidity Testing Machine
Introduction
Model | GC-TH-800Z | ||
Inner box size W*H*D (cm) | 100*100*80 | ||
Carton size W*H*D (cm) | 155*185*130 | ||
Inner box volume | 800L | ||
Temperature and humidity control range | TH: -40ºC~150ºC RH: 20%-98% (Special temperature and humidity specifications can be customized) | ||
Function | Temperature and humidity fluctuation | ±0.5ºC; ±2.5% RH. | |
Temperature and humidity deviation | ±0.5ºC-±2ºC; ±3% RH (>75% RH); ±5% RH (≤75% RH) | ||
Controller resolution | ±0.3ºC; ±2.5% RH | ||
Controller Brand programmable | Korea TEMI880 touch screen controller | ||
Material | Inner wall | SUS304#steel plate | |
Outer wall | SUS304#steel plate mist treatment | ||
Thermal insulation material | High temperature resistant high density ethyl chloroformed foam insulating material system | ||
air circulation mode | Centrifugal fan-broadband forced air circulation | ||
Cooling mode | Single stage mechanical compression system | ||
Refrigerating machine | Fully enclosed piston French Tecumseh compressor | ||
Refrigerant | R404A or American DuPont environmental refrigerant (R23+R404) | ||
Condensation method | Air-cooled | ||
Heater | Ni-Cr wire heater | ||
Humidifier | Semi-closed steam humidification | ||
Water supply mode | Automatic circulating water supply | ||
Safety device | No fuse switch, (compressor overload, refrigerant high and low pressure, ultra-humidity and over-temperature) protection switch, fuse failure warning system) | ||
Power | 220V AC±10% 60HZ |
![]() |
