Stainless steel PT1000 temperature indicator transmitter with analog output and digital output

BT93420-I PT100 4-20mA Output stainless steel Temperature Indicator Transmitter


BT93420 Temperature Indicator Transmitter

Introduction of tempertature indicator transmitter:

BT93420-I temperature indicator transmitter adopts a dedicated temperature module, which can perform linear correction on various types of thermocouples and resistance temperature detectors (RTDs) and output standard analog signals. It features high accuracy, good stability, strong anti-interference capability, water resistance, explosion-proof design, high temperature resistance, and shock resistance. It can be integrated with control systems to enable automated temperature control and monitoring

Product Features:
  1. Full stainless steel structure, good corrosion resistance
  2. Analog output and digital output are both available for selection
  3. Terminal box, 2088 LCD, or LED display are available for selection
Applications:
  1. Monitor the temperature of generators, transformers, cables, and other critical equipment.
  2. Industrial Automation.
  3. Temperature measurement of various gases or liquids in pipelines in industries such as petroleum, chemical, power, and hydrology.
Performance Parameters
Measurement Range-55~1200ºC
Accuracy @ 25ºC±0.5% (Typ.) ±1% (Max.)
Repeatability±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability±0.2%F.S/year (Max.)
Operating Temperature-30~80ºC
Storage Temperature-40~100ºC
Housing Material1Cr18Ni9Ti
Diaphragm Material316L Stainless Steel
Insulation Resistance>=100MΩ@100VDC
Maximum temperature120% of the rated temperature range
Protection RatingIP65
Weight~0.5Kg

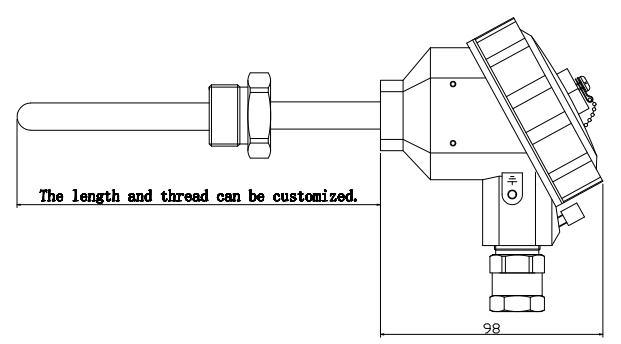

Outline Construction
Terminal BoxPT100 4-20mA Output Temperature Sensor
Order Guide
BT93420Temperature Indicator Transmitter
CodeOutline Construction
IBlue Terminal Box
II2088 housing
III2088+LED
IIIA3051+LED
Measurement Range-55~1200ºC
CodePower Supply
D124VDC
D2Other
CodeOutput Signal
S14~20mADCS40~10mADC
S21~5VDCS50~20mADC
S30~5VDCS60~10VDC
CodePressure Connection
J1M27X2 Male
J2Other
CodeInsertion depth
LActual insertion depth
PT100 4-20mA Output Temperature Sensor
