SHACMAN 8X4 Fuel Tank Truck 35000-40000 Liters Diesel Tanker Truck LHD Driving Type

Categories Fuel Tank Truck
Brand Name: SHAANXI 8*4 Oil Tank Truck
Place of Origin: Hubei, China
Price: CN¥314,535.45/units 1-1 units
Condition: New
Storage: Oil
Drive Wheel: 8X4
Horsepower: 251 - 350hp
Transmission Type: Manual
Fuel Type: Diesel
Tank Volume: > 30000L
Dimensions (L x W x H) (mm): 11425*2500*3470
Gross Vehicle Weight: 31000
After-sales Service Provided: Video technical support, Online support
Capacity (Load): 11 - 20T
Engine Capacity: > 8L, 9726CC
Forward Shift Number: 10
Maximum Torque(Nm): 1000-1500Nm
Fuel Truck Chassis Model Optional: Sinotruck howo,Beiben,Shacman,Dongfeng,ISUZU,HiNO and So on
Fuel Tanker Capacity: from 95HP engine to 375HP engine
Drive type: 4*2-4*4-6*2-6*6-8*4-8*8
Sales Manager: Ms.Pinky
Mobile No.: 0086 15897603919
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

SHACMAN 8X4 Fuel Tank Truck 35000-40000 Liters Diesel Tanker Truck LHD Driving Type

SHAANXI 8*4 35000 -40000 Liters Oil Tank Truck Fuel Diesel Tanker Truck Call 0086 15897603919 Ms.Pinky


SHAANXI 8*4 Oil Tank Truck also name refueling tank truck, oil tank truck, fuel tanker, diesel tank truck, crude oil tank truck, gasoline tank truck, heavy oil tank truck, tank truck and Fuel Oil Diesel Gasoline Bowser Truck so on.

SHAANXI 8*4 Oil Tank Truck including tank body, power take off, transmission shaft, gear pump, computer fueling machines, pipe system and so on.

More information, please contact with me.

0086 15897603919 Ms. Pinky


SHAANXI 8*4 Oil Tank Truck specification:

SHACMAN 8X4 OIL TANK TRUCK LHD DRIVE
ModelSX1315NM456
Traction8x4
Driving typeLHD (RHD is optional)
CabSHACMAN, D’LONG high roof( A/C) & two seats & two BEDS
Vehicle Main DimensionsL-W-H(mm)11779,11850×2490×4000
Wheel base(mm)1800+4500+1350
Wheel track(mm)Front track(mm):2036
Rear track(mm):1860
Approach/Departure angle(°)16/14.
Overhang(front/rear)(mm)1525/2604,2675
Tare Weight(kg)12650
Front axle7.5Ton MAN DRUM(Steering axle)
Rear axle13Ton MAN (Double reduction driving axle, differential lock)
Axle Ratio4.266
Driving Speed(km/h)78
EngineBrandWEICHAI
ModelWP10.270 / WP10.290 / WP10.336
EmissionEuro III
Engine typeDiesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & inter cooling
Displacement9.726 L /Diesel
Max. output270,290,336hp@2200rpm
Max torque1100,1160,1250NM@1200-1600rpm
Bore/Stroke(mm)126/130
Gear BoxBrandFAST (Fuller US technology)
Model9JS119,9JS135
TypeNo. of speed:9 forward speed,1 reverse speed
ClutchΦ430 Diaphragm-spring
steeringZF Technology from Germany
Tire12.00R20 (rim: 8.5-20)
Fuel tank300L Aluminum Tank
SpringHeavy duty leaf Spring 13/13/12
ManufactureSHAANXI AUTOBOBILE GROUP CO.,LTD
OriginP. R .China

High quality carbon steel Q235-A 6mm thickness.

With pump model: 80YHCB-60


COMMON OUTLET FOR FUEL TANK TRUCK:

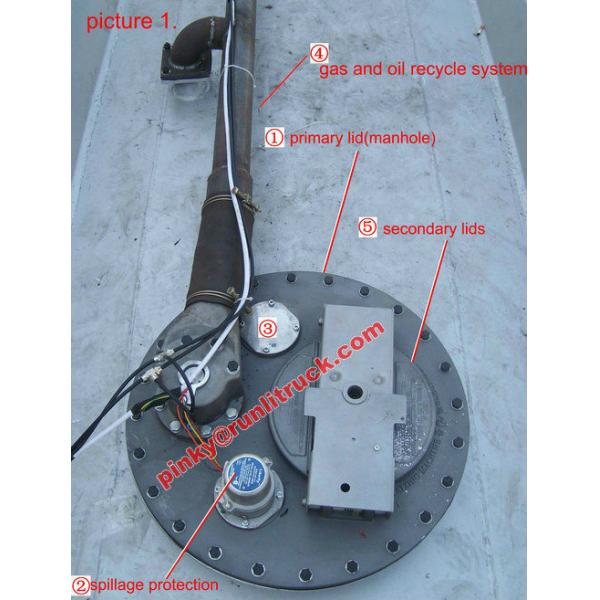

Optinal equipment for Shacman Fuel Tank Truck, European Standard manhole and outlet:



Optional Material of tank body:

steel optionCarbon steel Q235/Q345/ 16 manganese steel/
stainless SS201/SS304 /SS316 tanker
oil/petrol,Fuel diesel/Methanol/Tank trucksteel tank with oil pump/ gun fuel truck nozzle

More Information pleaes contact with Oversea Market Sales Manager:


Welcome to Visit our factory in Suizhou City, Hubei Province!


Cheap SHACMAN 8X4 Fuel Tank Truck 35000-40000 Liters Diesel Tanker Truck LHD Driving Type for sale
