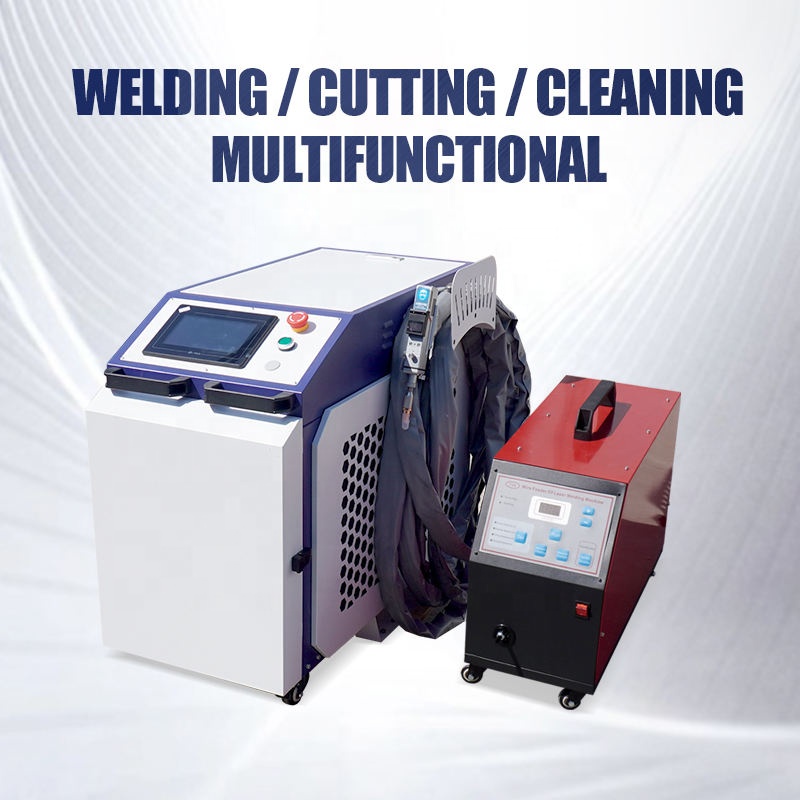

RAYCUS CW Fiber Laser Laser Welders 4 Functions 1500W 2000W 3000W 4 in 1 Handheld Laser Cutting Cleaning Welding Machine

Categories	Laser welding machine-2
condition:	New
Output Power:	3000W
usage:	WELDING
place of origin:	China
brand name:	HM
single pulse energy:	80-120J
pulse width:	0.1-50ms
wavelength:	1064nm -1070nm
focal spot diameter:	0.2-2mm
dimensions:	1000x550x1150mm
warranty:	3 years
laser source brand:	RAYCUS
laser head brand:	HIGHYAG
weight (kg):	100 KG
key selling points:	Easy to Operate
Product name:	Laser Welding Machine 3
Laser power:	1000W 1500W 2000W 3000W Optional
Laser type:	CW Fiber Laser
After-sales Service Provided:	Online Support
Function:	welding cutting cleaning
Applicable Industries:	hotels, Garment Shops, Machinery Repair Shops, Food & Beverage Factory, Home Use, Retail, Construction works , Advertising Company
Machinery Test Report:	Provided
Video outgoing-inspection:	Provided
Warranty of core components:	4 years
Core Components:	Pressure vessel, motor, Other, Bearing, PLC, Pump, Engine, Gearbox
Marketing Type:	New Product 2024
Price:	CN¥2,867.44/pieces >=1 pieces

Contact Now

Add to Cart

Company Info.

Wuhan hongmeng Laser Technology Co., Ltd.

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Laser welding machine parameters
Model	HM1000	HM1500	HM2000	HM3000
Laser Source	Everfoton/Raycus/MAX/BWT	Everfoton/Raycus/MAX/BWT	Everfoton/Raycus/MAX/BWT	Everfoton/Raycus/MAX/BWT
Laser Power	1000w	1500w	2000w	3000w
Laser Source Type	CW Fiber Laser	CW Fiber Laser	CW Fiber Laser	CW Fiber Laser
Power Adjustment Range	10-100%	10-100%	10-100%	10-100%
Laser Wavelength	1080±10nm	1080±10nm	1080±10nm	1080±10nm
Modulation Frequency	20khz	20khz	5khz	5khz
Laser Welding Head	Super/Relfar	Super/Relfar	Super/Relfar	Super/Relfar
Welding Speed	0-120mm/s	0-120mm/s	0-150mm/s	0-150mm/s
Scan Width Adjustable	0.1~6mm	0.1~6mm	0.1~6mm	0.1~6mm
Gas Requirements	10-15L/min(Ar/N2)	10-15L/min(Ar/N2)	10-15L/min(Ar/N2)	10-15L/min(Ar/N2)
Cooling Method	Air Cooling	Water Cooling	Water Cooling	Water Cooling
Optical Cable Length	7m/10m/15m	7m/10m/15m	7m/10m/15m	7m/10m/15m
Operating Voltage	AC220V 50/60Hz	AC220V 50/60Hz	AC220V 50/60Hz	AC380V 50/60Hz
Ambient Temperature	10~45 ℃	10~45 ℃	10~45 ℃	10~45 ℃
Environment Humidity	10%-85%	10%-85%	10%-85%	10%-85%
Energy Consumption	3.8KW	5.5KW	7.0KW	10KW
Machine Size	1000mm650mm720mm	1000mm650mm720mm	1000mm650mm720mm	1140mm750mm1050mm
Net Weight	105kg	110kg	120kg	175kg
Wire Feeding Diameter	0.8mm/1.0mm/1.2mm/1.6mm	0.8mm/1.0mm/1.2mm/1.6mm	0.8mm/1.0mm/1.2mm/1.6mm/2.0mm	0.8mm/1.0mm/1.2mm/1.6mm/2.0mm
