| Categories | Battery Sorting Machine |
|---|---|
| Brand Name: | AWT |
| Model Number: | HFX-4in1 |
| Place of Origin: | CHINA |
| MOQ: | 1 |
| Company Info. |
| Supo (Xiamen) Intelligent Equipment Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

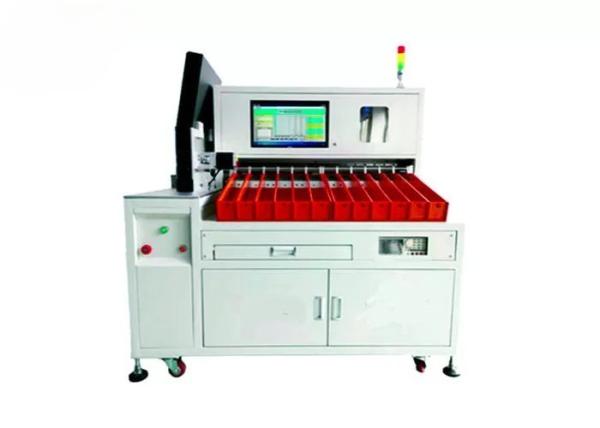

Used for 18650 21700 26650 32700 cylindrical battery cell sorting
The test sorting is composed of PLC control + PC industrial computer. PLC controls AC servo motor, stepping motor and cylinder to complete the sorting function. PC is responsible for data acquisition, processing and data storage. Speed is 5000pcs/Hrs. The mechanical structure design is simple and generous, and the system test performance is stable. At present, it is one of the most cost-effective cylindrical battery sorting equipment in the market.
Specification:
| Equipment efficiency | 60 ~ 70PPM |
| Speed | 4500-5000pcs/Hrs 18650 21700 3200-3800pcs/Hrs 32700 26650 |
| Equipment mobile rate: | more than 95% |
| IR Accuracy | +/-0.5% RDG, display resolution 0.01 milliohm; |
| Voltage Accuracy: | +/-0.05% RDG, display resolution: 0.1 MV; |
| IR Error | < 1 milliohm (AC resistance test) |
| Voltage Repeatable error | < 1 MV |
| Equipment Dimension | L*W*H=1450*670*1650mm |
| Air Pressure | 0.6Mpa |
| Input power: | AC220V/60HZ 1KW |
|
