| Categories | Drone Propulsion System |
|---|---|
| Brand Name: | Furious Motor |
| Model Number: | 10860 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | $ 480 |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 3000 pcs per month |
| Delivery Time: | 5-8 working days |
| Packaging Details: | Carton witn protection (EPE) |
| Model: | 10860 |
| Dimension: | 108 mm * 60 mm |
| KV: | 100 |
| Max. Thrust: | 26 kg |
| Max. Torque: | 16 N.m |
| Max. RPM: | 5100 |
| Suggested ESC: | 75 V 200 A |
| Suggested Prop: | 36 inch propeller |
| Max. Current: | 150 A |
| Max. Voltage: | 53 V |
| Max. Power: | 8 kW |
| Li - Po: | 10 S - 16 S |
| Hall Sensor: | Optional |
| Weight: | 1.2 kg |
| Application: | Multi rotor drone |
| Company Info. |
| Dongguan Furious Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Intoroduction
Furious Motor 10860 brushless motor is engineered for precision and power, making it the ideal choice for multi-rotor drones, delivery drones, camera drones, quadcopters, and heavy-lift applications. With an maximum thrust capability of up to 26kg, the 10860 motor seamlessly pairs with a 36-inch propeller and a 75V 200A ESC to deliver optimal efficiency and performance.
Designed for versatility, our motors can be fully customized to meet your specific requirements, ensuring each flight is tailored to your exact needs. With a commitment to quality and reliability, trust in our expertise to elevate your aerial projects with power, precision, and dependability.

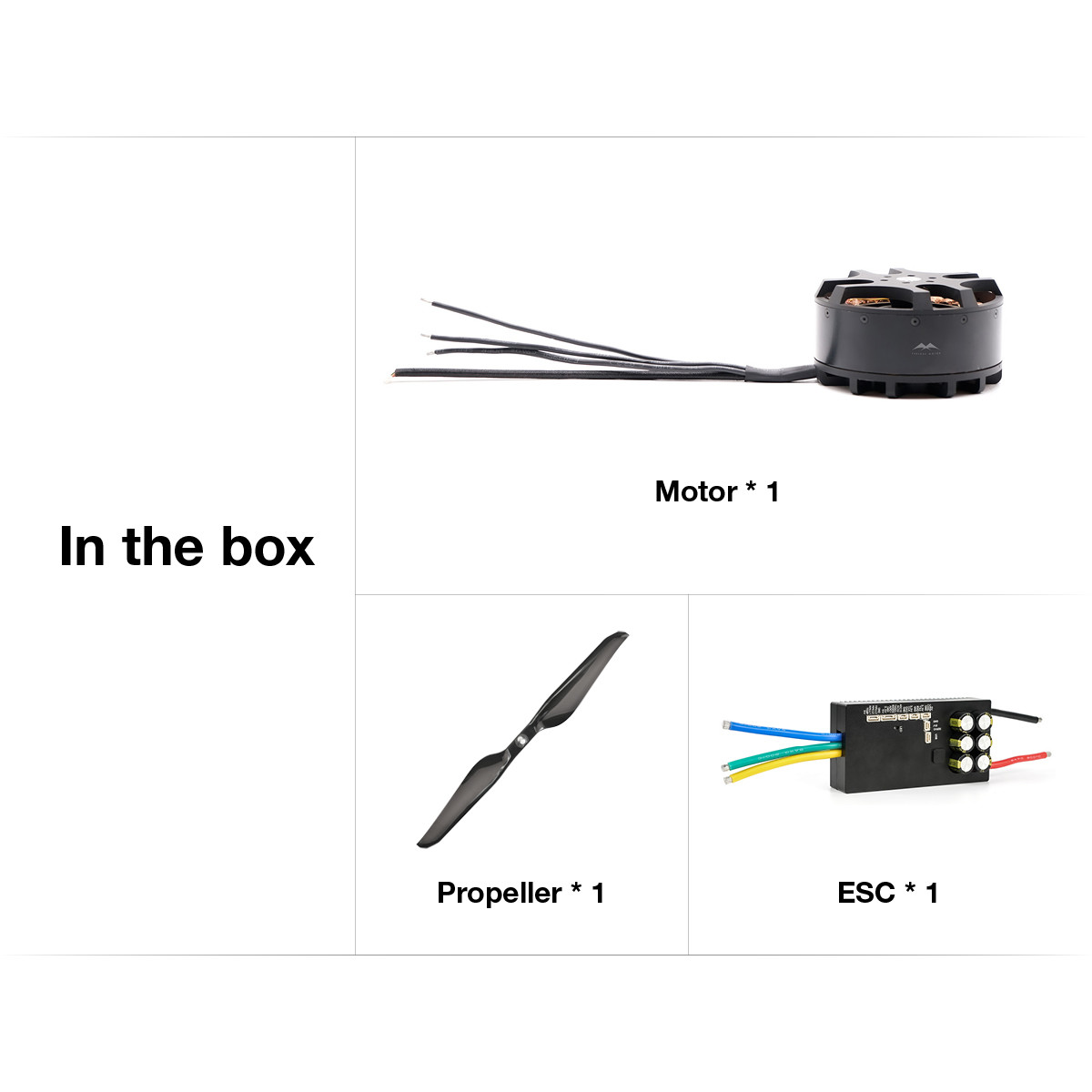

Tech Specs
System
| Max. Thrsut | 26 kg / rotor |
| Takeoff Weight | 8 kg - 13 kg / rotor |
| Suggested ESC | 75 S 200 A |
| Suggested Propeller | 36 inch 2-blade propeller |
| Suggested Battery | 12 S - 16 S |
| Working Temperature | -20 °C ~ 50 °C |
| Total Weight | 1.85 kg |
| Application | Multi rotor drone |
Motor
| Model | 108-60 |
| KV | 100 |
| Max. Thrsut | 26 kg |
| Max. Torque | 16 N·m |
| Max. RPM | 5100 |
| Dimension | 108 mm * 60 mm |
| Weight | 1.19 kg |
ESC
| Model | 75 V 200 A |
| Suggested Battery | 12 S ~ 16 S (Li-Po) |
| BEC | 5 V 1 A |
| Mode | DC, BLDC, FOC |
| ERPM | 150000 |
| Communication Ports | USB, CAN, UART, SPI, IIC |
| Compatibale Sensors | ABI, HALL, AS5047, AS5048A |
| Input Source | PPM, ADC, NRF, UART |
| Weight | 450 g |
| Dimension | 130 mm * 68 mm * 40 mm |
Propeller
| Model | 36 inch 2-blade |
| Diameter | 36 inch |
| Material | Carbon fiber |
| Weight | 0.2 kg |
