| Categories | Acoustic Partition Wall |
|---|---|
| Brand Name: | AE |
| Model Number: | AE65 |
| Certification: | ISO9001 SGS |
| Place of Origin: | Guangdong, CHINA |
| MOQ: | 10 Square Meter |
| Price: | USD 70-98Per Square Meter |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 SQUARE METER PER MONTH |
| Delivery Time: | 20-30days for 10-100㎡, if more than 100㎡need to be negotiated |
| Packaging Details: | Foam layer and hard cardboard with plywood case or steel pallet |
| Product: | Acoustic Operable Partitions |
| Compliance: | Restaurant, office building |
| Finishing option: | 68mm MDF board |
| Dimensions: | Customization (Height: up to 4.5M, Width per Panel: up to 1.2M) |
| Design: | OEM & ODM |
| STC Rating: | 42-56dB |
| Company Info. |
| FOSHAN AE PARTITION TECHNOLOGY LIMITED COMPANY |
| Verified Supplier |
| View Contact Details |
| Product List |
Office Acoustic Operable Partition Wall System with wooden finish
Our cost-effective soundproof movable partition wall systems come equipped with a built-in passageway door, providing both privacy and accessibility. These partitions are perfect for creating quiet, adaptable spaces without breaking the budget.
AE65 series operable partition system features manually operable panels that do not require any special tools. Simply use the operating handle to lock the panels in place and activate the top and bottom seals, creating an effective acoustic barrier.
Strengths:
1) German Partition Technology Global Professional Space Solutions
2) Highly competitive prices
3) Good quality control
4) Smooth communication
5) state-of-art technology products
5) Experience in doing project with heavy customers
6) Delivery time control for decent orders
Roller Option & Feature
1. Dupont POM roller
2. 304 stainless steel heavy duty roller with safety device & CNC machining
3. Unique and patented wheel surface and shape make the whole movable partition easy to use
Panel Option & Feature
1. Thickness: 68mm & 89mm & 105mm
2. Wide variety of acoustical and decorative finishes available
3. 6061-T6 profile and inside Q235 steel frame for superior durability
4 Top & bottom jack lifting mechanism seal are with power of 800N. Magnetic seal in concave & convex profile has magnetic attraction of 40N/m.
| GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSONAL SPACE SOLUTIONS | ||||||
| Dimensions in mm* | Design | |||||
| Series | Element thickness | Element width* (min./max.) | Clear height* (min./max.) | Framed construction | Panel fixing | Element interconnection/design of the vertical profiles |
| AE65 | 68 | 600/1,250 | 2,000/4,500 | Aluminium-steel | Freely oscillating | Aluminium profile with magnetic strip and sealing lips |
| AE85 | 89 | 600/1,250 | 2,000/5,500 | Aluminium-steel | Freely oscillating | Aluminium profile with magnetic strip and sealing lips |
| AE100 | 105 | 600/1,250 | 2,000/18,000 | Aluminium-steel | Freely oscillating | Aluminium profile with magnetic strip and sealing lips |
| Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56 Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m * Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department. ** Depending on the sound insulation/weight | ||||||

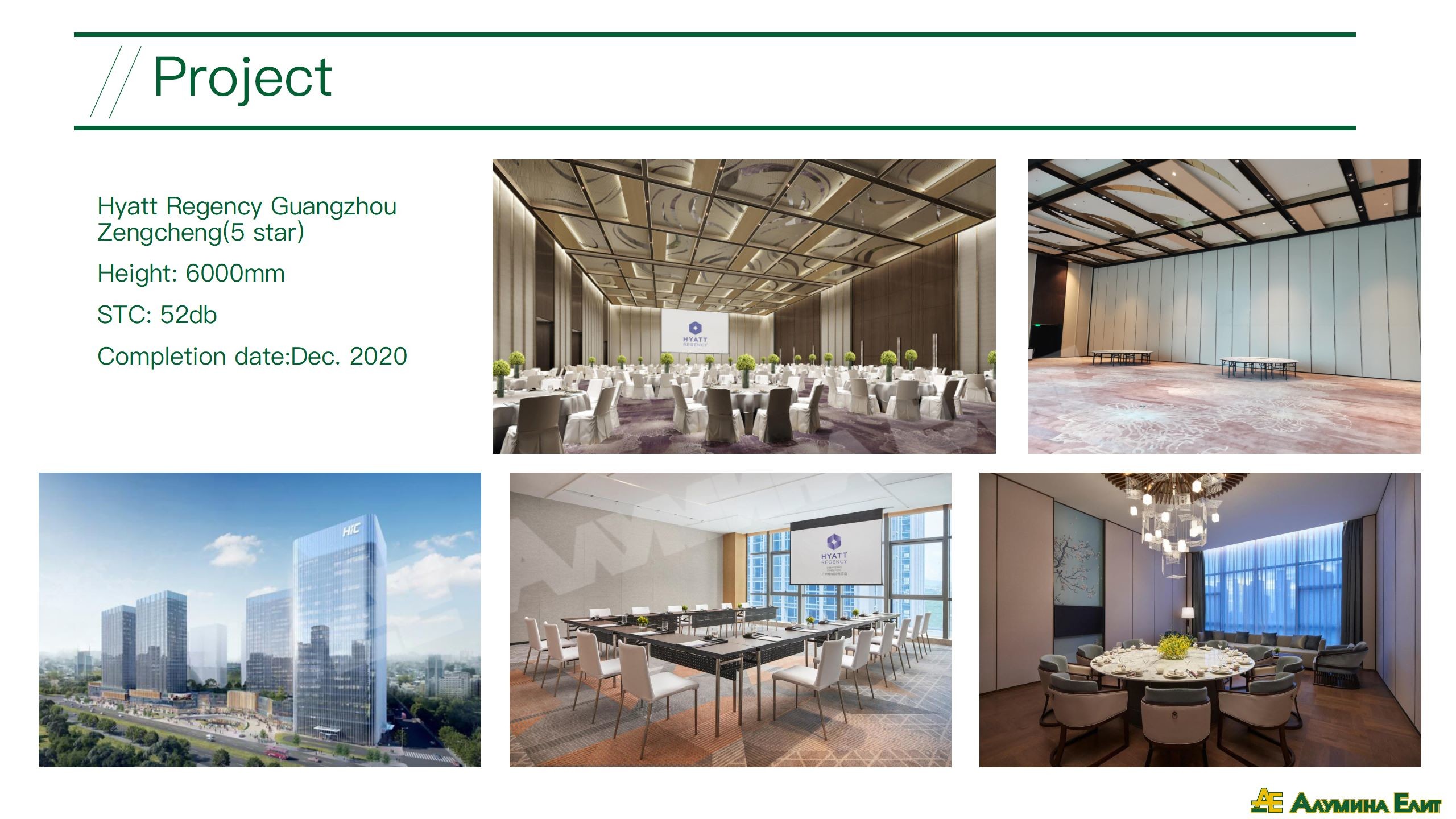

PROJECT:
ABOUT US:
|
