Makinopc ZPS014H Magnetic Sensor CNC Machine Tool Magnetic Proximity Switch Sensor with Indicator Light

Makinopc ZPS014H Magnetic Sensor CNC Machine Tool Magnetic Proximity Switch Sensor with Indicator Light

Makinopc ZPS014H Magnetic Sensor CNC Machine Tool Magnetic Proximity Switch Sensor with Indicator Light
Makinopc ZPS014H Magnetic Sensor CNC Machine Tool Magnetic Proximity Switch Sensor with Indicator Light
Categories Sensor Switch
Current consumption: 4mA MAX
Place of Origin: Guangdong, China
Response time: 16μ sec
warranty: 1 Year
Detection Poles: S-pole
Magnetic sensitivity: 3~4mT
Output current: 15mA MAX
Indicator light: Red color
Price: $7.90-10.80 / piece
Supply Voltage: DC5~24V
Machine Type: Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine
MOQ: 1 piece
Brand Name: Makinopc
Magnetic detection direction: Forward
Output mode: NPN normally open (ON when close)
weight (kg): 0.5
Protection class: IP65
Contact Now
Company Info.
Shenzhen Muye Precision Control Electromechanical Co., Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

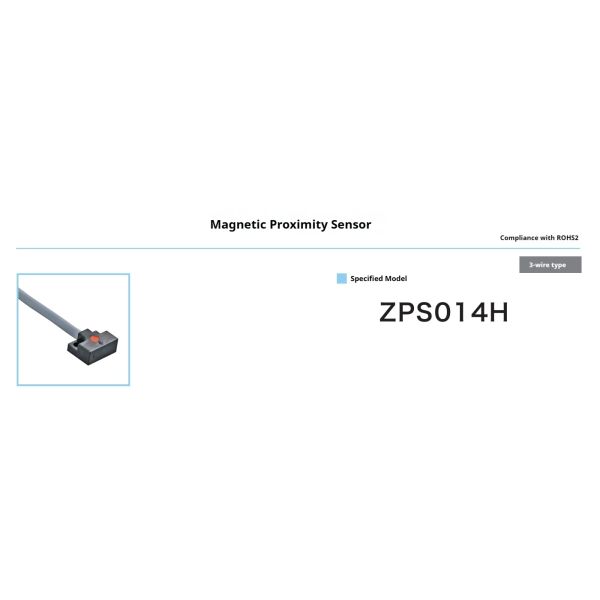

Makinopc ZPS014H Magnetic Sensor CNC Machine Tool Magnetic Proximity Switch Sensor with Indicator Light

Products Description
Makinopc Reed Switch Magnet Sensor NPN Magnetic Proximity Switch Sensor With Cable

Key Features

●Magnetic proximity sensors are sensors that operate ON and OFF according to changes in the strength of the magnetic field. ●The operating principle is the Hall principle, which detects the magnetic field according to its polarity, and the standard detection pole is the S pole. ●Because of the short response time (5μsec or less), it can also be used for tachometers and speedometers. ●Compared with general proximity sensors, it is characterized by high sensitivity, large detection distance, and small size. ●Can perform both home position and over-travel detection of servo mechanisms with only one dual sensor. ●Strong resistance to electromagnetic interference and high reliability.
Product Paramenters
Supply Voltage
DC5～24V
Detection Poles
S-pole
Magnetic sensitivity
3～4mT
Magnetic detection direction
Forward
Output mode
NPN normally open (ON when close)
Output current
15mA MAX
Current consumption
4mA MAX
Response time
16μ sec
Withstanding Voltage
AC1000V
(1 minute, between the whole charging part and the case)
Insulation resistance
DC250V
(20MΩ or more, between the whole charging part and the case)
Operating Ambient Temperature
-20℃～+85℃ (no condensation)
Humidity
20～95%RH
Wire Specification
φ2.8×1m
S pole: Gray
N-pole: Black
Shell material
Glass fiber reinforced resin: black
Installation
M2 screw, tightening torque 0.15N-m
Indicator light
Red color
Protection class
IP65
※Output conversion and current increase can be realized by wire attachment.
Details Images
※Output conversion and current increase can be realized by wire attachment.
Product packaging
We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it. Package : carton or wooden box Lead time : 1-2 days All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.
Company Profile
Founded in 2014, Shenzhen Muye Precision Control Electromechanical Co., Ltd. is a service-oriented enterprise integrating R&D, design and sales of CNC numerical control machine tools accessories, and the products currently put on the market mainly include CNC numerical control machine tools with automatic tool setting instrument, electronic handwheels, hand-cranked pulse generators, on-line measuring probes, band switches, spindle encoders, system panels, electronic handwheel accessories supporting programs, and the realization of automatic tool setting installation and debugging solutions. Commissioning solutions, etc. Our factory is located in Songgang, Bao'an District, Shenzhen City, covers an area of more than 3,000 square meters, with 20 professional and technical personnel, 15 sets of testing instruments, two production lines. The production capacity reaches 100,000 units per month. We have exclusive patent design and own brand, and have won many quality certificates. The products are widely used in Fanuc, , Mitsubishi, Fagor, Heidenhain, Bao Yuan, New Generation, HANUC, Guangzhou CNC GSK, open CNC, Kain Emperor KND, Nuoxin, Delta, a variety of PLCs, CNC CNC machining centers, engraving machines, engraving and milling machines, drilling and tapping machines, EDM, milling machines, lathes and so on. The company in line with the "customer first, integrity first" principle with a number of enterprises to establish long-term cooperative relations, warmly welcome friends from all over the world to visit and negotiate business.
Our Advantages
1. We specialize in the field of CNC machine tool accessories and have more than ten years of industry experience. 2. We have our own brand called Makinopc and exclusive patent design and quality certification. 3. We provide you with friendly English user manual or operation video for free. 4. We have 24 hours technical support by email or phone. 5. Warranty: 1 year free warranty, 2-3 years warranty at cost, and always provide free technical support. 6. We have no MOQ limit and accept OEM/ODM bulk orders.
FAQ
Q1. Can I have a sample order? A: Yes, we welcome sample order to test and check quality. Q2: How to choose the appropriate model or specifications? A:Based on your requirement and application, our professional engineers will offer you a detailed suggestions regarding models and specifications. Q3:Can I become your dealer? A:Of course, we need partners to create value together. Q4: Do you accept customized service? A:Yes, we can provide not only standard products, but also customized service and solutions. Q5: Do you have any MOQ (minimum order quality)limit? A: For standard product, usually 1pcs/item. For the OEM order, need to communicate product solutions. Q6.How long is the product shelf life? A: Our product watranty period is one year. Q7: How to proceed an order? A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a paying link.Online trading is safe and convenient.
