Industrial Rotary Drum Dryer with PLC Control for High Capacity and Customizable Gold Ore Processing

Product Description

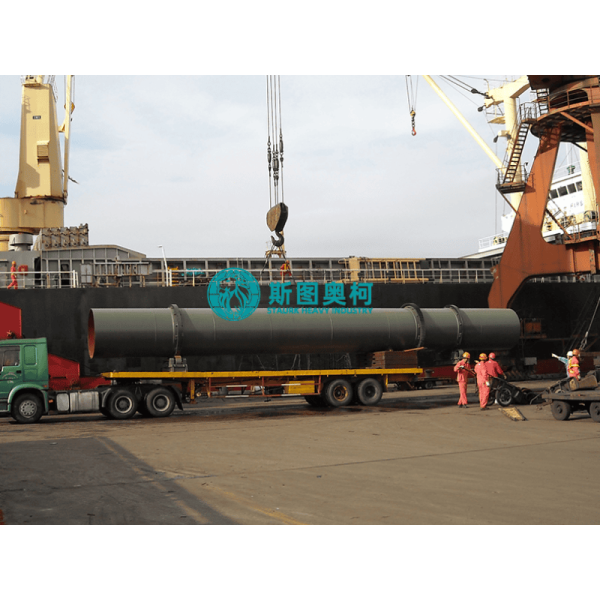

The industrial rotary drum dryer is a mainstream large-scale continuous drying equipment designed for industrial mass production scenarios. It uses a slowly rotating inclined drum as the core carrier, supports customized configurations such as carbon steel, stainless steel, explosion-proof and anti-corrosion, and can stably handle the drying demands of various bulk materials. It is widely used in core production links of new energy, chemical, mining, food, environmental protection and other industrial fields.

Working Principle

The obliquely installed industrial-grade drum is driven by a heavy-duty high-torque transmission system to rotate stably at a low speed. Wet industrial materials are continuously fed into the drum from the higher feeding end. The built-in wear-resistant lifting plates continuously lift and scatter the materials to form a uniform material curtain, making the materials fully contact with the large-flow hot air flowing through the drum. The free moisture in the materials is efficiently evaporated through the multi-section constant temperature drying zones, and the dried industrial finished materials are stably discharged from the lower discharging end, realizing 24-hour uninterrupted large-capacity industrial drying operation.

Key Features

• ‌Ultra-wide industrial adaptability‌: It can stably cope with the drying demands of almost all conventional industrial materials, and supports targeted optimization for special properties such as corrosion resistance, high temperature resistance and heat sensitivity.
• ‌Super high production capacity‌: The processing capacity can cover the range from 50kg/h to 2000t/d, with thermal efficiency as high as 93%, far exceeding that of small intermittent drying equipment.
• ‌Durable and stable operation‌: The industrial-grade reinforced structure has few vulnerable parts, supports long-term 24-hour continuous operation, and the operation rate is over 98%.
• ‌Highly customizable‌: It can be flexibly matched with feeding, dust removal, PLC intelligent control and other supporting units, and can meet the diversified production demands of different industrial scenarios.

• Technical Specifications

  Product Specs (m)	Capacity (T/H)	Main Motor Power (kW)	Main Motor Model	Main Gearbox Model	Ratio
  φ1.2×10m	2.5	7.5	Y160M-R3	ZL50-16-1	-
  φ1.5×12m	3.3 - 4.9	10	Y160L-6B3	JZQ500-III-2F	-
  φ1.5×15m	4 - 6	18.5	Y200L-6	JZQ500-III-2F	-
  φ1.8×12m	4 - 6	11	Y200L-6	ZQ50-16II-2	16.46
  φ2.2×12m	7 - 12	18.5	Y160L-6	JZQ650-III	31.5
  φ2.2×14m	7 - 12	18.5	Y160L-6	JZQ750-III	31.5
  φ2.2×16m	12	30	Y225M-6	JZQ750-III	31.5
  φ2.4×14m	12	30	Y250M-6	JZQ750-III	31.5
  φ2.4×18m	10 - 13	37	Y250M-6	ZL85-13-1	27.16
  φ2.4×20m	10 - 14	37	Y250M-6	ZL85-13-1	27.16
  φ3×20m	25	55	Y250M-4	ZL100-16-1	41.52
  φ3×25m	32 - 36	75	YR280M-4	ZL100-16-1	41.52

•
