| Categories | Lithium Polymer Battery Cell |
|---|---|
| Brand Name: | RESKY |
| Model Number: | LP906090 |
| Certification: | CE, RoHS, MSDS, Un38.3,IEC62133,ect |
| Place of Origin: | China |
| MOQ: | 10pcs |
| Price: | Negotiable |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 10000PCS/Day |
| Delivery Time: | 7-10days |
| Packaging Details: | Exporting standard package |
| Model NO.: | LP906090 |
| Nominal Capacity: | 6000mAh |
| Continuous Discharging Current: | 0.2c |
| Max Discharging Current: | 0.5c |
| Weight: | 85g |
| MOQ: | 10PCS |
| Cycle Life: | 500cycles |
| Specification: | 9*60*90mm |
| HS Code: | 8507600090 |
| Company Info. |
| Shenzhen Resky Electronics Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
| NO. | Items | Specifications |
| 1 | batteries | 3.7v 6000mah lipo battery |
| 2 | Charge voltage | 4.2V |
| 3 | Nominal voltage | 3.7V |
| 4 | Nominal capacity | 6000mAh 0.2C Discharge |
| 5 | Charge current | Standard Charging:0.5C Rapid charge: 1.0C |
| 6 | Standard Charging method | 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C |
| 7 | Charging time | Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.) |
| 8 | Max.charge current | 1.0C |
| 9 | Max.discharge current | 1.0C |
| 10 | Discharge cut-off voltage | 2.5V0.25V(0.2C) |
| 11 | Operating temperature | Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C |
| 12 | Storage temperature | -10°C~ +45 °C |
| 13 | Dimension | Length:90±2mm (not including tabs) Width:60±0.5mm Thickness:9±0.5mm |
| 14 | Drop Test | The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage |
| 15 | cycle time | ≥500times |
Advantage:
Lithium polymer battery cells offer significantly higher energy density compared to traditional battery types, enabling them to store more energy per unit weight or volume. This makes them ideal for devices where space is a constraint and long operational times are required.
They can store a relatively large amount of energy in a small volume and light weight. This enables longer runtimes for devices without significantly increasing their size or weight, making them ideal for powering smartphones, tablets, and other portable electronics that require high energy in a compact package.
Lightweight and Flexible Design:
Due to their polymeric composition, lithium polymer batteries can be designed in various shapes and sizes, offering greater flexibility in integration into devices. Their lightweight nature also contributes to reducing the overall weight of the products they power.
They are often thin and can be made in various shapes and sizes, making them highly adaptable to different device designs. This flexibility allows for more creative and space-efficient packaging in portable electronics. The lightweight nature of lithium polymer battery cells is particularly advantageous in applications where weight is a critical factor, such as in drones, portable medical devices, and wearable electronics.
Application:
Consumer Electronics and Smart Home
Power Banks:
Smart Locks:
Portable Projectors:
Drones and Model Aircraft:
Camping Lanterns and Emergency Equipment:
Medical and Health Monitoring:
Portable Monitors:
Beauty Devices: High-Rate Discharge Supports High-Frequency
Vibration

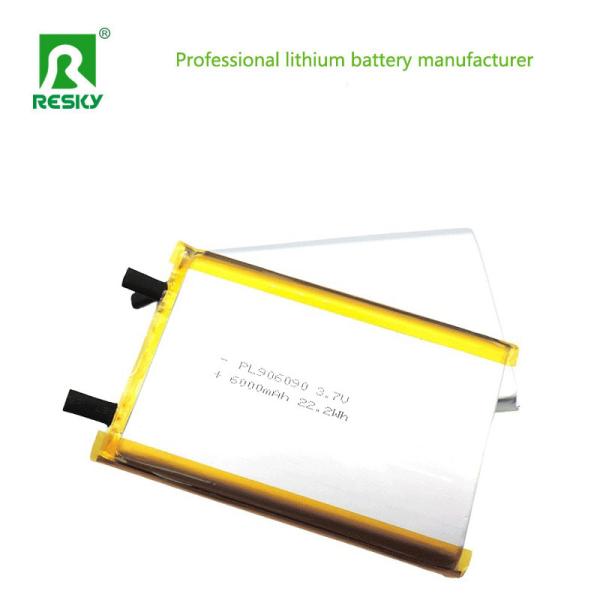

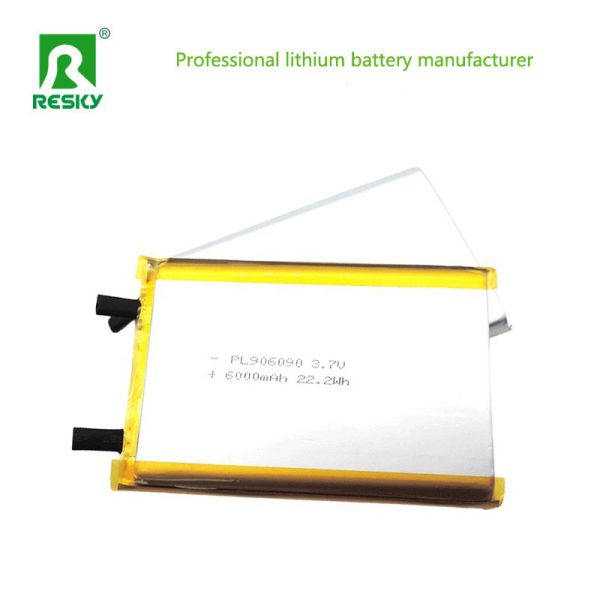

Product Pictures:
|
Flat Lithium Polymer Battery Cell 523450 603450 803450 103450 3.7v 2000mAh Lipo Batteries
Rechargeable Lithium polymer battery cell 503759 3.7V 1200mAh for Dog Trainer
Lithium Polymer Battery Cell 3.7V 1500mAh 103048 For Digital Device
3.7V Lipo Li-ion Battery Pack 805085 4000mAh 854565
Smart Phone Lithium Polymer Battery Cell 7.4V 505573 2S 2500mAh
Rechargeable Lipo Batteries Lithium Ion Polymer Battery Cell 606090 3.7V 4000mAh
803040 3.7V 1000mAh Pouch Lithium Polymer Battery Cell for Storage Lipo Batteries
Digital Lithium polymer battery cell 304045 3.7V 500mAh Lipo Battery with PCB
Square Lithium Polymer Battery Cell 602535 3.7V 4.2V 400mAh For Smart Watch
Rechargeable Lithium Ion Polymer Battery 502025 3.7V 200mAh Lipo Batteries For Earphone
