Automatic Aluminum Ultrasonic Heavy Wire Bonder For 18650 21700 26800 Lithium Battery

Automatic Aluminum Ultrasonic Heavy Wire Bonder For 18650 21700 26800 Lithium Battery

Product Description

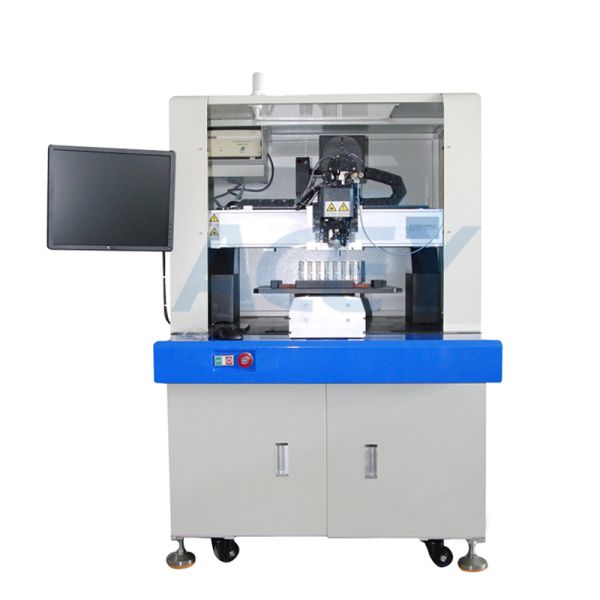

ACEY-3740A ultrasonic wire bonding machine is a specialized device developed for inner lead welding in lithium battery packs. It features a rotating welding head, a fully digital automatic frequency-tracking ultrasonic system, digitally controlled pressure adjustment, advanced vision recognition, and fully closed-loop motion control. The machine enables low-resistance, high-reliability connections for large-current conduction through aluminum wire welding, and is widely used in Tesla 18650, 21700, 26800 power batteries and energy storage systems.

Product Features

• Material handling can be manual or robotic: automatic identification and positioning, automatic bonding, followed by manual or robotic unloading.
• This assembly machine is dedicated to bonding production for customer-specified battery products and is not a universal device.
• For other products, modifications may be required based on actual conditions.
• The machine mainly consists of a frame assembly, XYZC feed module, automatic feeding mechanism, wire delivery system, fixture positioning and clamping components, welding head assembly, and control console.
• X-axis uses an imported linear motor; Y and Z modules use precision ball screw drives with repeat positioning accuracy better than ±0.02 mm; C-axis angle positioning accuracy is ±1°.
• Control system combines an industrial PC with a motion control card to drive servo motors; operation and maintenance are simple, interface is user-friendly, and all parameters are digitally adjustable, offering high flexibility.
• Quick-clamp mechanism with single-button start makes loading simple, safe, and efficient.

Technical Parameter

Product Display

Acey New Energy is a high-tech enterprise specializing in the research, development, and manufacturing of advanced equipment for the lithium-ion battery industry. Established in 2009, Acey is supported by a professional R&D team and an experienced after-sales service team, each with more than 15 years of industry expertise.

Our business covers the full spectrum of lithium battery manufacturing, from laboratory research and pilot-scale production to battery pack assembly. We provide laboratory-scale fabrication equipment for coin cells, cylindrical cells, and pouch cells, turnkey laboratory and pilot line solutions, battery cell testing equipment, battery pack testing equipment, battery pack assembly equipment, as well as semi-automatic and fully automatic battery pack assembly line solutions for cylindrical, prismatic, and polymer battery packs.

Over the years, Acey New Energy has cooperated with universities, research institutes, and battery manufacturers worldwide, delivering over 300 customized solutions for laboratory research, pilot production, and battery pack manufacturing. Our equipment has been successfully exported to more than 40 countries and regions, including the United States, Canada, the United Kingdom, Germany, France, Spain, Italy, Turkey, Japan, South Korea, India, Pakistan, Iran, Indonesia, and South Africa.

With highly reliable and precise equipment, combined with a customer-first service philosophy, Acey New Energy has earned a strong reputation in the international market and become a trusted partner for many leading battery manufacturers.

Moving forward, we remain committed to continuous innovation and customized solutions, focusing on the lithium-ion battery industry and striving to become a globally leading battery equipment manufacturer. We sincerely welcome customers from around the world and look forward to building long-term partnerships for a more sustainable energy future.
