M16 15A+5A Small Waterproof Wire Connectors Quick Release IP67
Connector 2+4 Pin
PA66 Plastic 2+4 Multi Pin IP67 Waterproof Connector M16
Waterproof Male Female Connector Application Industries
- Growth Lights
- Communications Application
- Product Coding Machines
- Inventory Product Coding
- Inkjet Systems
- Solar System
- Industrial Inkjet Equipment
- Electric Power Equipment
- Laboratory Forensic & Pathology Equipment
- Communications Equipment
- Heavy Machinery
IP67 Connector 2+4 Pin Product Overview
M16 2+4 Pin Small Waterproof Quick-Release Connector (IP67) is
specifically designed for integrated power and signal transmission
applications. With dual-specification capability supporting 15A
high-current supply and 5A signal transmission, this connector
provides reliable connectivity for small devices operating in

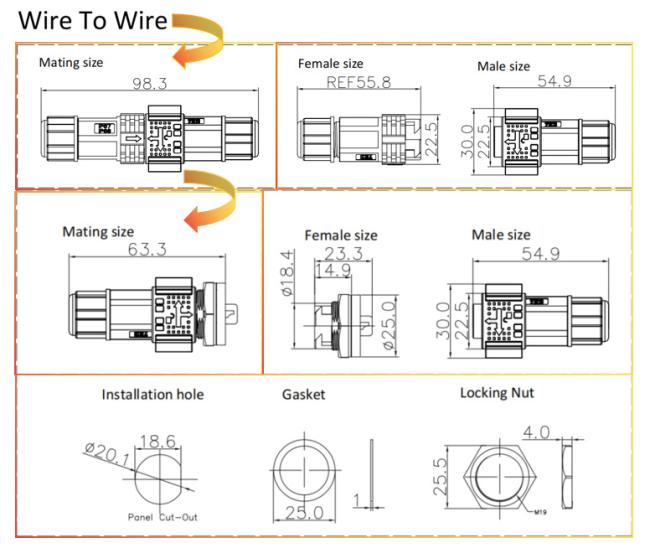

complex environments. Compliant with M16 interface standards, it
features a compact structural design that balances installation
flexibility with connection stability, making it ideal for
equipment with space constraints.

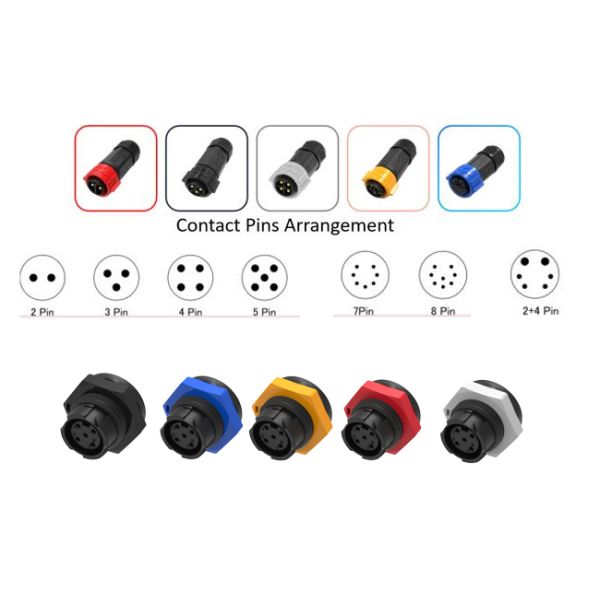

The innovative 2+4 pin functional zoning layout enables independent
transmission of power and signal without interference: the 2-pin
channel carries 15A rated current for stable power supply to small
devices; the 4-pin channel handles 5A signal interaction, ensuring
accurate transmission of control commands and data. The
quick-release mechanism allows tool-free plug-and-pull operations
with automatic locking after insertion, effectively resisting
vibration and external pulling forces to prevent accidental
disconnection, significantly improving installation, maintenance,
and equipment debugging efficiency.
With IP67 protection rating, the connector features a fully
enclosed sealing structure with custom waterproof rubber ring,
providing comprehensive waterproof and dustproof capabilities. It
completely blocks dust intrusion and remains functional when
immersed in 1m water for 30 minutes, easily handling harsh
conditions including rain wash, moisture condensation, and sand
dust intrusion, thereby reducing risks of short circuits and poor
contact.
Material selection prioritizes performance and durability:
conductors use high-conductivity oxygen-free copper with tin-plated
anti-oxidation treatment to reduce transmission loss and heat
generation for 15A/5A dual-current requirements; the housing is
made of high-insulation grade engineering plastic with anti-aging,
impact-resistant, and lightweight properties, capable of
withstanding long-term outdoor or industrial environment exposure
and extending product service life. Widely used in small automation
equipment, outdoor sensors, portable instruments, security
monitoring terminals, and small new energy equipment, providing
all-weather connection reliability for stable equipment operation.
