High Brightness all in one Solar Street Light LED Outdoor Lighting

Categories	LED Solar Street Light
MOQ:	10
Price:	contact us with more details
Payment Terms:	T/T,Western Union
Supply Ability:	8000pcs/Month
Delivery Time:	5-7 workdays
Packaging Details:	carton
Brand Name:	Led Solar Street light
Model Number:	LKH-60W
Certification:	CE,IP65,FCC
Place of Origin:	Shenzhen China
Product Name:	Solar Street Light LKH-60W
Model NO.:	LKH-60W
Charge Time:	6 Hrs
Working Time:	12 Hrs / 3-5 Days
Specification:	1173408150mm
Waterproof:	IP65
Installation Height:	7-8m
Discharge time:	3-5 rainy days
Controller:	MPPT controller
Light angle:	120° / >95%
Cloud platform:	IoT Control Management System (optional)
Lighting Method:	Intelligent + Microwave + Segmented time control
Warranty:	3 years
Applications:	Road Lighting / Industrial Parks / Highways / Urban Street / Countryside

Contact Now

Add to Cart

Company Info.

Shenzhen Kingconn Technology Co., Ltd

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

1. Core Features

High Efficiency, Wide Application

Power range: 30W–120W, luminous flux: 6000LM–24000LM, suitable for rural paths to urban main roads.
Monocrystalline solar panel (18V/50W–18V/150W), 23.8% conversion efficiency, fully charged in 4–6 hours.

3–5 Days Rainy Weather Backup

Built-in high-capacity LiFePO4 battery (3.2V 72Ah–12.8V 75Ah), ensures continuous lighting for 3–5 days in overcast/rainy conditions.

Smart Control, Energy Saving

Three modes: Smart (auto on/off), Microwave Sensor (motion-activated), and Dimming (4h 100% → 2h 50% → rest 30%).
Energy saving up to 30% with motion detection and scheduled dimming.

Industrial-Grade Durability

Die-casting aluminum + pure aluminum heat dissipation, operates in -30℃ to 60℃.
IP65 waterproof, dustproof, corrosion-resistant, ideal for deserts, coasts, and high-altitude areas.
Mounting height: 5–12m, illuminates up to 20m wide roads.

2. Product Specifications Table

Model	Power	Solar Panel	Battery	Luminous Flux	Mounting Height	Rainy Days	Application
LKH-30W	30W	18V/50W Mono	3.2V 72Ah	6000LM	5–6m	3–5 days	Rural paths, alleys
LKH-40W	40W	18V/60W Mono	3.2V 100Ah	8000LM	6–7m	3–5 days	Residential streets
LKH-60W	60W	18V/80W Mono	12.8V 30Ah	12000LM	7–8m	3–5 days	Industrial parks
LKH-80W	80W	18V/105W Mono	12.8V 45Ah	16000LM	8–10m	3–5 days	Urban secondary roads
LKH-100W	100W	18V/125W Mono	12.8V 60Ah	20000LM	10–11m	3–5 days	Main roads, squares
LKH-120W	120W	18V/150W Mono	12.8V 75Ah	24000LM	11–12m	3–5 days	Highways, large areas

3. Technical Highlights

Solar Panel: A-grade monocrystalline silicon, 200LM/W efficiency, anti-UV, anti-aging.
Battery: Grade A LiFePO4, 2000+ cycles, stable performance in extreme temperatures.
LED Chips: SMD 3030, 4-core high-efficiency design, 50,000+ hours lifespan.
Controller: MPPT controller, 98% charging efficiency, overcharge/overdischarge protection.
Optional: IoT cloud platform for remote monitoring and management.

4. Why Choose LKH Series?

Cost-effective: No electricity bill, low maintenance, 3-year warranty.
Eco-friendly: 100% solar powered, zero carbon emission.

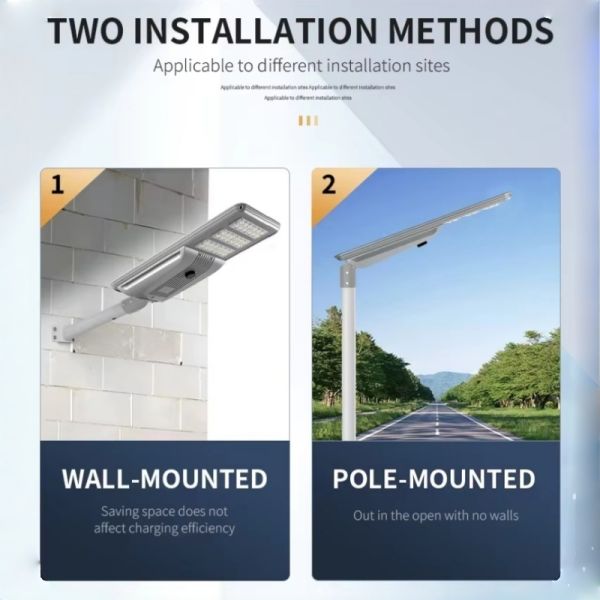

Easy Installation: All-in-one design, no wiring needed, plug-and-play.
Smart Management: Optional IoT system for real-time status monitoring and fault alerts.

5. Applications
