7.2GHz Video Receiver Module RX7500 with CVBS Output and SPI/DIP Switch Control for FPV Drones

7.2GHz Video Receiver Module RX7500 CVBS Output SPI/DIP Switch Control FPV Receiver

Product Description

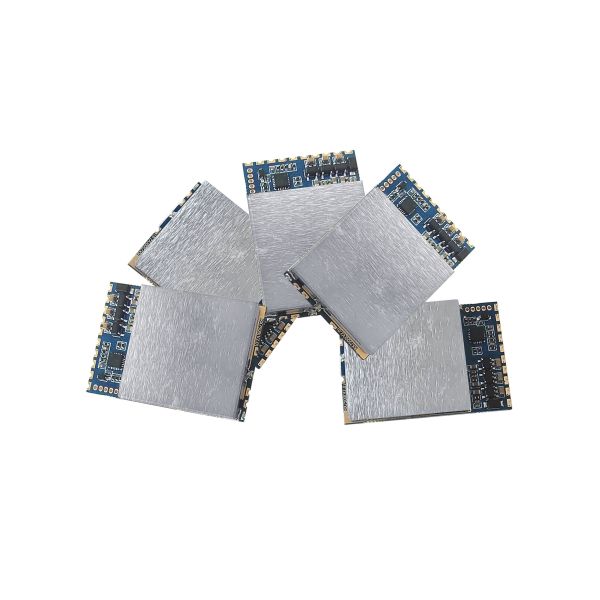

The RX7500 is a 7.2GHz video receiver module designed for FPV drones and wireless video transmission systems. It supports wideband reception from 6000 to 7500MHz with FM/PLL demodulation and provides CVBS analog video output. The module features dual control modes: DIP switches for quick selection of 16 preset channels, and SPI mode for fine frequency tuning in 1MHz steps (default 6150MHz). RSSI signal strength output is included for signal monitoring. Operating on a single 5V power supply, it is ideal for embedded video receiving applications.

Product Features

• 7.2GHz high-frequency reception covering 6000~7500MHz

• Dual control modes: DIP switch (16 channels) and SPI (1MHz step, 6G~7.5G adjustable)

• CVBS analog video output compatible with mainstream FPV goggles and monitors

• High sensitivity of -95dBm for weak signal reception

• RSSI output (0.6~1.2V corresponding to -90dBm~-30dBm)

• Single 5V power supply with low power consumption (≤390mA)

• Compact form factor for easy integration

Parameter Table

Custom Attributes

1. Model Number: RX7500

2. Type: Video Receiver Module

3. Frequency: 7.2GHz (6000-7500MHz)

4. Input Voltage: 5V DC

5. Video Output: CVBS (1Vp-p)

6. Control Mode: DIP Switch/SPI

7. Operating Temperature: -10~65℃

8. Application: FPV Drone, Wireless Video Surveillance
