Clear BIPV Solar Glass with Up to 300W/m2 Power Output for Seamless Building Integration

Clear High-Performance BIPV Solar Glass For Building-Integrated Solar Energy

BIPV (Building-Integrated Photovoltaics) power glass refers to photovoltaic materials embedded into glass panels, allowing buildings to generate electricity while maintaining functionality as windows, facades, or skylights. Unlike traditional solar panels mounted on rooftops, BIPV glass blends seamlessly into architecture, enhancing aesthetics and energy efficiency.

​​Types of BIPV Power Glass Technologies​​

1. ​​Thin-Film Solar Cells (CdTe, CIGS, a-Si)​​

   • ​​CdTe (Cadmium Telluride):​​ High efficiency (~18-22%), cost-effective, semi-transparent.

   • ​​CIGS (Copper Indium Gallium Selenide):​​ Flexible, lightweight, good efficiency (~15-20%).

   • ​​a-Si (Amorphous Silicon):​​ Lower efficiency (~6-10%) but better performance in low light.

2. ​​Crystalline Silicon (Mono/Poly) in Glass​​

   • Opaque or patterned for partial transparency.

   • Higher efficiency (~20-24%) but less design flexibility.

3. ​​Perovskite Solar Glass​​

   • Emerging tech with tunable transparency & high efficiency potential (~30% in tandem cells).

   • Still in R&D/commercialization phase.

4. ​​Dye-Sensitized Solar Cells (DSSC) & Organic PV (OPV)​​

   • Lower efficiency (~8-12%) but highly customizable colors/transparency.

​​Key Features & Benefits​​

✔ ​​Energy Generation​​ – Produces electricity while serving as part of the building envelope.

✔ ​​Aesthetic Integration​​ – Customizable transparency, colors, and patterns.

✔ ​​Thermal & UV Insulation​​ – Reduces heat gain, lowering HVAC costs.

✔ ​​No Additional Space Needed​​ – Replaces conventional glass in facades, windows, and roofs.

✔ ​​Sustainability​​ – Lowers a building’s carbon footprint.

​​Applications of BIPV Power Glass​​

​​1. Solar Windows & Curtain Walls​​

• Semi-transparent PV glass for office towers & residential buildings.

• Example: ​​Ubiquitous Energy’s "ClearView Power"​​ (near-transparent solar coating).

​​2. Solar Skylights & Canopies​​

• Generates power while providing daylighting.

​​3. PV Facades & Spandrels​​

• Replaces traditional cladding with energy-generating panels.

​​4. Balcony Railings & Noise Barriers​​

• Dual-functionality for urban & highway applications.

​​5. Greenhouses & Atriums​​

• Optimizes light transmission for plants while generating energy.

​​Challenges & Limitations​​

⚠ ​​Higher Cost​​ – More expensive than conventional glass (but offsets energy costs over time).

⚠ ​​Efficiency Trade-offs​​ – Higher transparency = lower power output.

⚠ ​​Durability & Degradation​​ – Some thin-film tech degrades faster than silicon.

⚠ ​​Regulatory & Standards Compliance​​ – Building codes must adapt to BIPV.

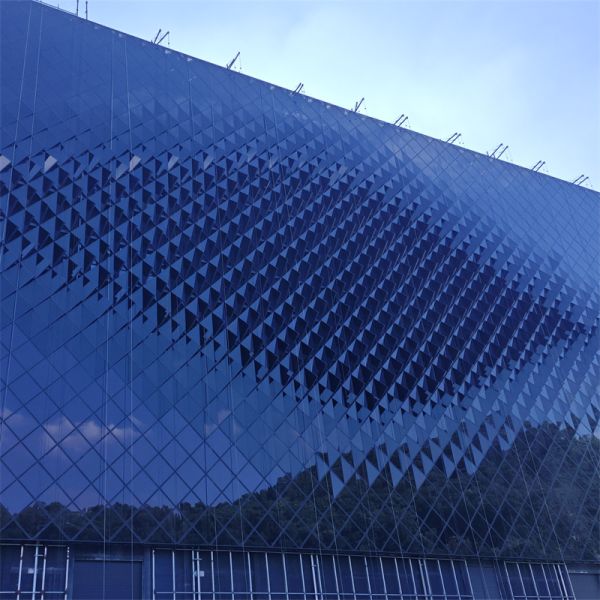

Glass pictures:​

  Our main products covers solar tempered glass, BIPV glass, architectural glass(tempered glass, insulated glass, laminated glass), dectorative glass(frosted glass, printed glass, colored glass ) automotive glass. We have equipped our production lines with world-class manufacturing equipment and established a strict quality control system that complies with international standards such as ISO 9001 and CE. Driven by technological innovation, our R&D team continuously explores new materials and processes to enhance product performance, energy efficiency, and environmental friendliness. With a global sales network spanning, we have established long-term and stable cooperative relationship with customers from more than 50 countries and regions. We adhere to the principle of" Customer-Centric, Win-Win Cooperation' and provide personalized solutions and efficient after-sales support to meet the unique needs of ech customer.

Looking ahead, our company will continue to uphold the spirit of craftsmanship,focus on sustainable development, abd strive to become a world-class glass enterprise that leads the industry's development and creats greater value for customers, employees and society.
