M93C86-WMN6TP 16-Kbit MICROWIRE serial access EEPROM 2MHz 5ms 2.5V~5.5V

Categories EEPROM Chip
Brand Name: ST
Model Number: M93C86-WMN6TP
Certification: rohs
Place of Origin: CN
MOQ: 1
Price: consult with
Payment Terms: T/T,Western Union
Supply Ability: 100000
Delivery Time: 5-8days
Packaging Details: T/R
Operating Temperature: -40℃~+85℃
operating voltage: 2.5V~5.5V
Interface Type: SPI
Storage Capadity: 16Kbit
Clock Frequency (fc): 2MHz
Write Cycle Time (Tw): 5ms
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

M93C86-WMN6TP 16-Kbit MICROWIRE serial access EEPROM 2MHz 5ms 2.5V~5.5V

M93C86-WMN6TP 16-Kbit MICROWIRE Serial Access EEPROM
16-Kbit MICROWIRE serial access EEPROM with 2MHz clock rate, 5ms programming time, and 2.5V~5.5V operating voltage range.
Product Family Overview
M93C86-x, M93C76-x, M93C66-x, M93C56-x, M93C46-x series - 16-Kbit, 8-Kbit, 4-Kbit, 2-Kbit and 1-Kbit (8-bit or 16-bit wide) MICROWIRE™ serial access EEPROMs
Key Features
  • Industry standard MICROWIRE™ bus
  • Single supply voltage: 2.5V to 5.5V for M93Cx6-W / 1.8V to 5.5V for M93Cx6-R
  • Dual organization: by word (x16) or byte (x8)
  • Programming instructions that work on: byte, word or entire memory
  • Self-timed programming cycle with auto-erase: 5ms
  • READY/BUSY signal during programming
  • 2MHz clock rate
  • Sequential read operation
  • Enhanced ESD/latch-up behavior
  • More than 4 million write cycles
  • More than 200-year data retention
Device Specifications
DeviceNumber of bitsNumber of 8-bit bytesNumber of 16-bit words
M93C861638420481024
M93C7681921024512
M93C664096512256
M93C562048256128
M93C46102412864
Product Documentation

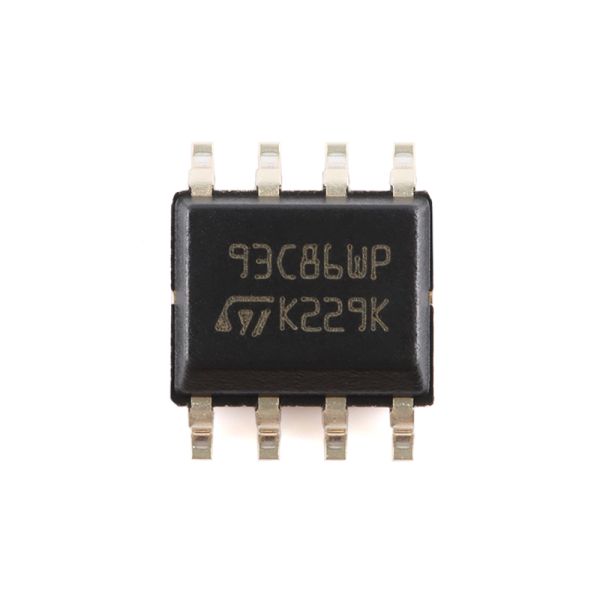

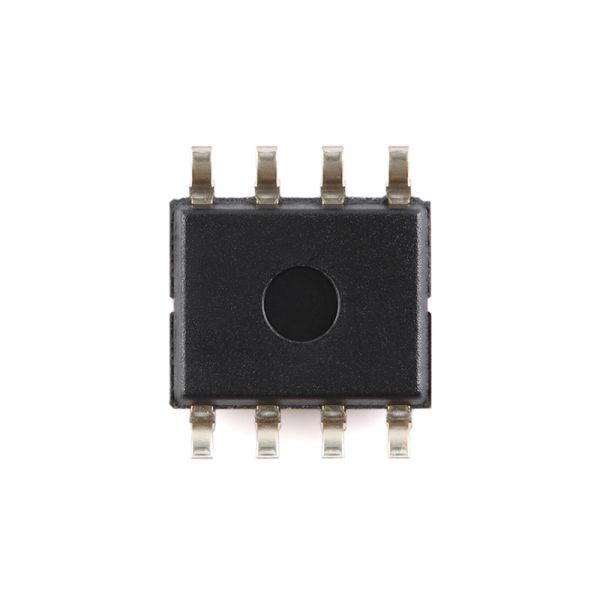

M93C86-WMN6TP EEPROM technical diagram M93C86-WMN6TP EEPROM pin configuration M93C86-WMN6TP EEPROM timing diagram M93C86-WMN6TP EEPROM package dimensions
