AAPS0650M220A 22uH Molding Power Inductor with 4.04A Saturation Current and AEC-Q200 Qualification

Categories Power Module
Brand Name: Coilank
Model Number: AAPS0650M220A
Certification: rohs
Place of Origin: CN
MOQ: 1
Price: consult with
Payment Terms: T/T,Western Union
Supply Ability: 100000
Delivery Time: 5-8days
Packaging Details: T/R
Product Catalog: Power Inductor
Inductive value: 22uH
Accuracy: ±20%
Saturation Current (Isat): 4.04A
DC Resistance (DCR): 138mΩ 2
Vehicle Gradeevel: AEC-Q200
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

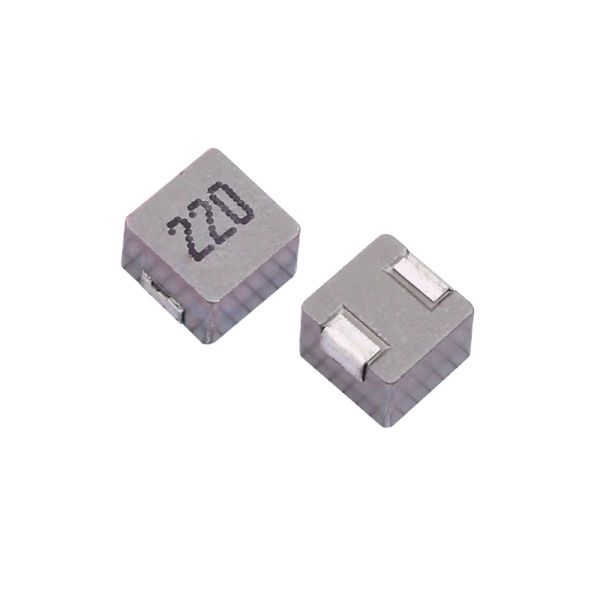

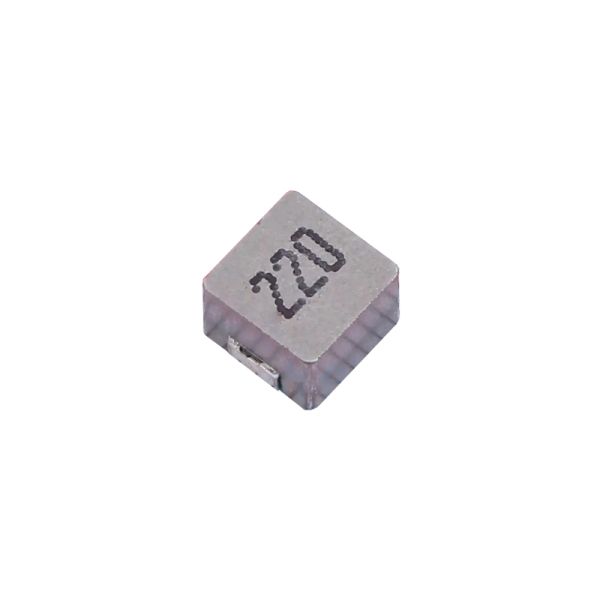

AAPS0650M220A 22uH Molding Power Inductor with 4.04A Saturation Current and AEC-Q200 Qualification

AAPS0650M220A Molding Power Inductors 22uH ±20% 4.04A
Features
  • Qualified to AEC-Q200.
  • Alloy powder Inductor.
  • 100% lead (Pb)-free.
  • Lowest DCR/uH, in this package size.
  • Handles high transient current spikes without saturation.
  • Ultra low buzz noise, due to composite construction.
  • RoHS compliance.
  • Halogen Free.
Applications
  • Automotive applications.
Test Equipment and Conditions

All test data is referenced to 25℃ ambient.

Operating temperature range -55℃ to +155℃.(Including self - temperature rise)

DC current(Irms)that will cause an approximate△T of 40℃.

DC current(Isat)that will cause Lo to drop approximately 40%.

For AAPS04~07 size project ,absolute maximum voltage 60VDC;

Above AAPS10 size project, absolute maximum voltage 100VDC.

TYPEAB MaxC MaxD typE typF typG typH typQ’TY/Reel
AAPS04124.2±0.34.81.22.00.85.22.52.23000
AAPS04204.2±0.34.82.02.00.85.22.52.23000
AAPS05155.2±0.35.81.52.21.252.52.23000
AAPS05185.2±0.35.81.82.21.26.02.52.22000
AAPS05305.2±0.35.83.02.21.26.02.52.22000
AAPS06156.6±0.37.71.53.01.68.43.53.72000
AAPS06186.6±0.37.71.83.01.68.43.53.71500
AAPS06246.6±0.37.72.43.01.68.43.53.71500
AAPS06306.6±0.37.73.03.01.68.43.53.71000
AAPS06506.6±0.37.75.03.01.78.43.53.61000
AAPS07547.2±0.38.25.43.02.09.03.52.6500
AAPS08408.2±0.39.24.051.49.55.54800
AAPS103010.0±0.511.53.03.02.013.64.15.41000
