EPDM Rubber Extrusion Machine Cold Feed Extruder/High Efficiency Cold Feed Rubber Extruder for Rubber Belt Production

EPDM Rubber Extrusion Machine Cold Feed Extruder
EPDM Rubber Extrusion Vulcanizing Line Cold Feed Rubber Extruder designed for efficient production of rubber components with superior quality and performance.
Basic Specifications
Model No.: SJ-90
Customization: Available
Automation Grade: Semiautomatic
Structure: Vertical
Name: Cold Feed Extruding Machine
L:D Ratio: 20:1
Screw Diameter: 90mm
Motor Power: 55kw
Screw Speed: 0-55 R/Min
Heating Power: 6kw * 5
Reducer: Hardened Reducer
Transport Package: Packed in Wooden Case
Trademark: SFC
Origin: China (Mainland)
HS Code: 8477800000
EPDM Rubber Extrusion Vulcanizing Line Cold Feed Rubber Extruder
Product Overview
Our rubber extruder equipment is widely used in rubber machinery for extruding tread, inner tube, rubber tube, and various rubber strips. The equipment operates efficiently by stirring, mixing, and plasticizing rubber with the help of the screw extruder, then moving it toward the machine head where the product is extruded from the die head.
This rubber extruder is also suitable for producing rubber seals. The exhaust rubber extruder can be equipped with a vacuum pump to eliminate bubbles during production, making it ideal for styrofoam strips. The Pin rubber extruder is designed for extrusion hoses, featuring multiple rows of pin barrel screws that provide sufficient pressure ratio for superior product quality and appearance.
Key Features
  • Energy-saving design with high productivity, excellent plasticization, and refined glue quality
  • Compatible with various extrusion heads as required by users
  • Machine body temperature measuring and indicating device installed
  • Feeding zone equipped with side rolls for enhanced feeding capability
  • Screws and bushes undergo nitrogenation treatment for superior strength and wear-resistance
  • Reducer features forced lubrication unit with high transmission efficiency, long service life, and low noise
  • Variable-speed motor drive system
  • Side-open type side rolls for easy rubber removal
Technical Specifications
TypeScrew Diameter (mm)Screw L/D RatioMax Screw Speed (r/min)Motor Power (kw)Max Capacity (kg/h)Net Weight (KG)
SJ-45φ4516:1707.550500
SJ-65φ6520:165371201200
SJ-75φ7520:160371201700
SJ-90φ9020:155553003200
SJ-120φ12020:1501106005200
SJ-150φ15020:1451357206500

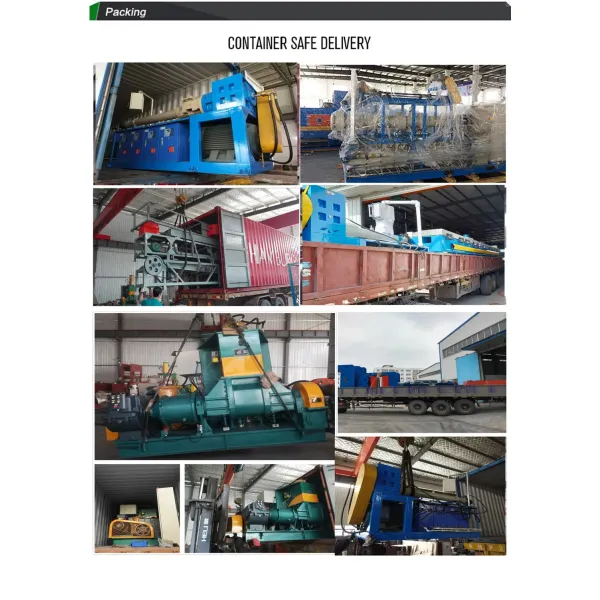

EPDM Rubber Extrusion Vulcanizing Line installation view EPDM Rubber Extrusion Vulcanizing Line close-up EPDM Rubber Extrusion Vulcanizing Line operation EPDM Rubber Extrusion Vulcanizing Line components
Manufacturer Profile
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd. is an established Chinese manufacturer founded in 2007 with over 10 years of experience in producing various rubber machines. The company holds ISO 9001:2008, SGS, and CE certifications.
Our factory specializes in rubber kneader/rubber mixing mill; various plate vulcanizing presses; 2-roll/3-roll/4-roll rubber calenders; rubber batch off coolers; waste tire recycling lines; reclaimed rubber production lines; conveyor belt production lines; and rubber seals extruding & vulcanizing lines.
Our machinery has been exported to America, Mexico, India, Vietnam, South Africa, Singapore, Malaysia, Indonesia, Australia, Sri Lanka, and many other countries and regions.
With professional engineers and teams, we accept OEM/ODM machines based on customer requirements and provide overseas engineer services.
Qingdao Shun Cheong Rubber Machinery Manufacturing facility
