50KG Mini Welding Positioner 360° Rotation Electric Tilting Welding Positioner

50KG Mini Welding Positioner 360° Rotation Electric Tilting Welding Positioner

50KG Mini Welding Positioner 360° Rotation Electric Tilting Welding Positioner
50KG Mini Welding Positioner 360° Rotation Electric Tilting Welding Positioner
Categories Rotary Welding Positioner
Brand Name: LEMAR
Model Number: BWJ-05
Certification: CE
Place of Origin: WUXI
MOQ: 1
Price: 500-1000USD
Payment Terms: D/A,L/C,D/P,T/T,Western Union
Supply Ability: 500 units/month
Delivery Time: 10-20 work days
Packaging Details: 55.00cm * 55.00cm * 60.00cm
Model: BWJ-05
Max Eccentricity Distance: 320mm
Voltage: 110V/220V
Welding Tilter Type: No
Product Name: 50kg Welding Positioner
Produnt Type: Rotary Welding Positioner
Application: Pipe / Circular Welding
Material: Steel Structure
Contact Now
Company Info.
Wuxi Lemar Machinery Equipments Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

50KG Mini Welding Positioner 360° Rotation Electric Tilting Welding Positioner

50KG Mini Welding Positioner 360° Rotation Electric Tilting Welding Positioner
Product Introduction
50KG Mini Welding Positioner - Compact design for small workpieces

This 50kg mini welding positioner is lightweight portable welding auxiliary equipment, specially designed for small workpiece processing. It features compact size and flexible movement, ideal for small workshop daily welding work.

Adopts stable drive structure and stepless speed regulation, running smoothly with low noise. It can rotate and tilt workpieces freely, helping workers finish circumferential welding quickly and easily.

  • Body Material: Thickened high-strength carbon steel, solid integrated frame, high rigidity, stable structure and anti-deformation
  • Drive Treatment: Precision gear drive assembly, smooth transmission, low noise and long service life
  • Running Accuracy: Stable rotating balance, accurate tilting positioning, ensure uniform welding seam effect
  • Multi-angle Design: Support 360° horizontal rotation and electric tilting angle adjustment, flexible workpiece placement
  • Speed Control: VFD stepless speed regulation, wide speed range, easy adjustment to meet different welding processes
Welding positioner technical diagram Welding positioner operation view
Technical Specifications
ModelBWJ-05Input powerAC220V
Horizontal loading50KGVertical loading25KG
Work table diameter315mmWork table height340mm
Rotate speed0.5-5rpmRotate motor120W
Flip angle0-90°Flip modeManual
Suitable chuckKP-65/125/200/300Warranty1 year
Product Production Process
  • Raw Material Cutting: Adopt high-quality steel plate raw materials, cut materials accurately according to drawing standards
  • Integral Welding: Integrate frame welding, conduct stress relief treatment to avoid structural deformation
  • Precision Machining: Process core rotating parts via CNC machining to ensure assembly precision
  • Drive Assembly: Install reducer, motor and frequency converter, complete internal wiring layout
  • Debugging Test: Carry out no-load running, speed test and load bearing test one by one
Product Configuration
Standard ConfigurationOptional Configuration
High-strength carbon steel main body, anti-deformationVFD stepless speed regulation system
Standard motor and reducer drive systemHandheld remote control pendant
360° rotation + fixed angle tiltingFoot pedal control switch
Standard welding table / chuckHigh-precision positioning brake device
Wired control panelCustomized fixtures for different workpieces
Anti-rust painting surface treatmentWaterproof & high-temperature resistant parts
Welding positioner configuration options Welding positioner accessories

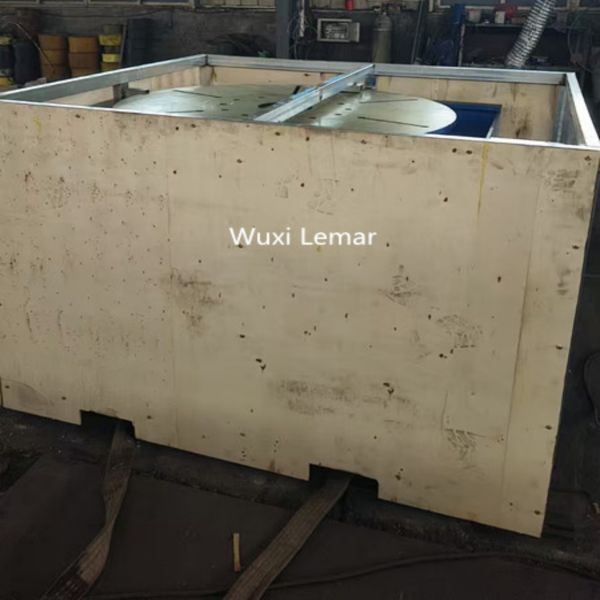

Product Packaging
Frequently Asked Questions
Q: What is the rated load of 50kg welding positioner?
A: Its safe bearing capacity is 50kg, specially suitable for various small workpieces welding processing.
Q: Can this mini positioner adjust rotating speed freely?
A: Yes, it supports VFD stepless speed regulation, runs smoothly and keeps stable rotating speed.
Q: What angle can this welding positioner tilt?
A: It can realize 360° horizontal rotation and 0-120° electric tilting for omnidirectional welding.
Q: Is it convenient to operate this light duty positioner?
A: Simple control design, easy to start and adjust, labor-saving and high working efficiency.
Q: What kinds of workpieces is it mainly used for?
A: Widely used for small pipes, hardware parts, small cylinders and other miniature workpieces welding.
