High Pressure Solar Hot Water Storage Tank

water storage tank(From 100 liter to 1000 liter)

low pressure big water tank(1000 liter to 30 000 liter)
Integrated pressure solar water heater tank(80 liter to 500 liter)

Water tank for flat plate solar water heater( 100 liter, 200 liter, 300 liter, 500 liter)

More details, please send email

From 100 Liter to 8000 Liter up-right pressure solar water tank, customized design will be welcomed.

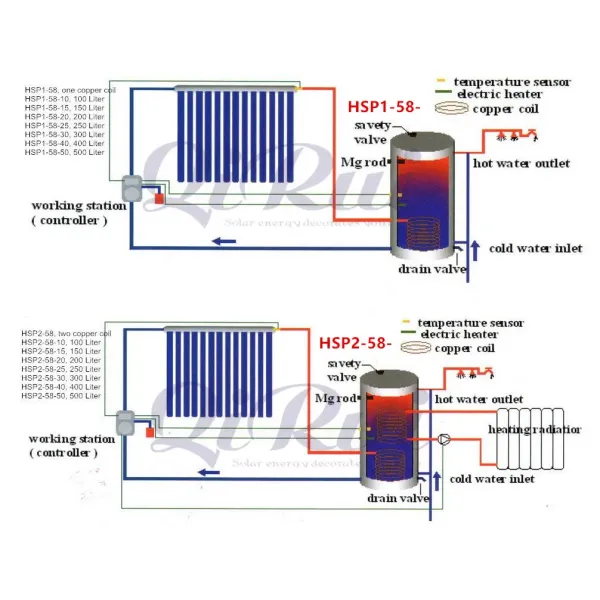

Big volume Pressurized split solar water heater tank-SUS304 inner tank

800L

1000L

1500L

2000L

3000L

4000L

5000L

6000L

7000L

8000L

9000

10000L

Diameter of the inner tank (mm)

φ800

φ1000

¢1200

¢1500

¢1800

¢2000

Diameter of outer shell(mm)

¢900

¢1100

¢1300

¢1600

¢1900

¢2100

Material of the inner tank

SUS304stainless Steel

Thickness of the inner tank

2.5mm

3.0mm

4.0mm

Material of outer shell

Color Steel Plate(enamal white)

Thickness of Outer shell

0.5mm

Insulation material

High dense polyurethane foam

Insulation thickness

50mm

60mm

50mm

Installation size of water pipe

NPT3/4"

Rated heating power

Surface area heat exchanger top(m2)

Upper coil (mm*mm*m) (Diameter×Thickness×Lenght)

Surface area heat exchanger top(m2)

Lower coil (mm*mm*m) (Diameter×Thickness×Lenght)

working pressure

0.6Mpa

Test pressure

1.2Mpa

Overall dimension (references)(mm)

¢900×1700

¢900×2100

¢1100×2000

¢1100×2600

¢1300×2700

¢1600×2200

¢1600×2800

¢1900×2400

¢1900×2800

¢2100×2600

¢2100×2900

¢2100×3100

Suitable Flat roof , Pitched roof and Balcony

OUR SERVICE
1, Fast delivery, 40 feet container quantity will deliver in 7 days.
2, Experienced sales team assistant you, fast confirmation for every related questions from you.
3, Rich experiences for differenct Market (countries), kinds of customized design will be welcomed.
4, Assistant you load other goods with solar water heater in one container.
5, Installation guide and train
6, LOGO print and water tank and cartons.
FAQ
1. Is solar water heating a viable alternative to gas or electricity?
Solar should not be seen as a alternative to gas or electricity, but rather a supplement. Solar cannot totally replace the need for gas or electric heating as there are sometimes days when there is little sunlight. When averaged over a year, a correctly sized solar system can provide 60%-70% of a household's hot water needs. Providing more than this is unadvisable, as too much heat will be produced in the summer. The hot water system system can easily be automated so hot water is guaranteed regardless of sunlight levels.
2. How long will it take to recoup my investment?
QIRUI solar collectors are much more affordable than many other solar hot water heaters. For a household of 4, the price of a full system may not be too much more than a new electric or gas system. Depending on you location (solar levels) and current hot water usage the annual electricity or gas saving will differ. However in a normal household that spends 25% of its electricity bill on hot water heating, the full cost of the purchase may be recouped as quickly as 4-5 years in reduced bills. You will definitely make considerable savings during the life of the solar hot water heater.

3. Can QIRUI solar collectors be used in cold conditions?
Yes. QIRUI collectors can be used in temperatures as low as -30oC, although performance is greatly reduced in such extreme conditions. Good heat output is still achieved in mild sub-zero conditions.

4. What happens if one of the tubes is broken?
Firstly, tubes are very strong and not easily broken, but if the worst should happen, solar tubes can be replaced very easily. They are inexpensive and available though your local QIRUI distributor. The HAINING QIRUI solar collectors can operate with several broken tubes, but the efficiency will be reduced, so it is recommended that broken tubes be replaced immediately.

5. Will water be heated on a cloudy day?
Yes. Although the heat output of the solar collector is reduced on overcast days it will still be able to provide heating. If it is a heavily clouded day or raining, then more gas or electric boosting may be required to maintain water at the required temperature. This system will be automated so you don't have to worry about running out of hot water on a rainy day.
6. Can I use a solar collector with my existing hot water system?
Normally yes. Simple retrofit valves can often be used to allow solar to connect to your existing cold water inlet. If your tank cannot accept the solar input directly an additional storage tank can be installed to pre-heat the cold water prior to entering the existing tank.

7. Are the solar collectors noticeable on the roof?
If only the collector is mounted on the roof it should blend into the roof design quite well. HAINING QIRUI solar collectors are very thin and can be flush mounted on a roof. From a distance they look somewhat like a skylight. You may have to check with your local council regarding building restrictions when installing your solar collector. Click here to view installation photos.

8. Can QIRUI solar collectors be mounted on a flat surface?
Yes they may be mounted on a flat roof, or on the ground by using a stainless steel Flat Roof Frame. The collector should be installed at a minimum of 20o angle to ensure optimal heat pipe operation.

9. How do I protect my solar system during subzero temperatures?
If you have a system that is operating in areas with subzero temperatures then freeze protection must be implemented. The easiest means of preventing freezing is to use a controller with a low temperatures setting, so when the manifold temperature drops below a certain pre-set temperature (5oC/40oF), the pump will circulate, warming the collector with water from the bottom of the storage tank. The pump will not run continually, just periodically, the frequency of which will depend on the outside temperature. In extremely cold areas, a closed loop using a glycol/water mix may be appropriate.
10. Will the QIRUI solar collector be a fire hazard during hot, dry weather?
No. The QIRUI solar collector's components are all high temperature rated and non-flammable so even during strong sunlight with the circulation pump turned off (stagnation), the system will not catch alight or give off any sparks. The majority of the solar collector's components are stainless steel, aluminium, glass or glass wool. The manifold outlet should be fitted with a temperature relief valve, which will prevent the manifold temperature from exceeding 99oC / 212oF.

High Pressure Solar Hot Water Storage Tank

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Haining Qiruite Photoelectric Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Solar Water Heater Parts&Accessories
Model NO.:	HSPT
Structure:	Separate Type
Pressure:	Pressurized
Interior Material:	Stainless Steel
Collector Components:	Glass Vacuum Tube
Composition:	Collector
Certification:	CE, ISO9001, CCC
Work Pressure:	0.8MPa/8bar/800kpa/116psi
Heat Preservation:	72hours
Installation:	Pitched Roof and Flat Roof
Solar Water Heater Capacity:	100L 150L 200L 250L 300L 400L 500L
Solar Water Heater Accessories:	Solar Collector, Upright Water Tank, Work Station
Transport Package:	Standard Export Carton
Specification:	50L to 500L
Trademark:	QIRUI/OEM
Origin:	China
HS Code:	8419901000
Production Capacity:	5000 Sets /Month
MOQ:	1
Price:	200
