3HP DN15 Diameter Industrial Chilling Equipment

Categories Laboratory Thermostatic Chiller for EVs
Brand Name: MENTEK
Certification: CE
MOQ: 1 Unit
Price: Negotiable
Payment Terms: T/T
Supply Ability: 30 sets per month
Delivery Time: 25-30 Working days
Packaging Details: strong plywood case
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

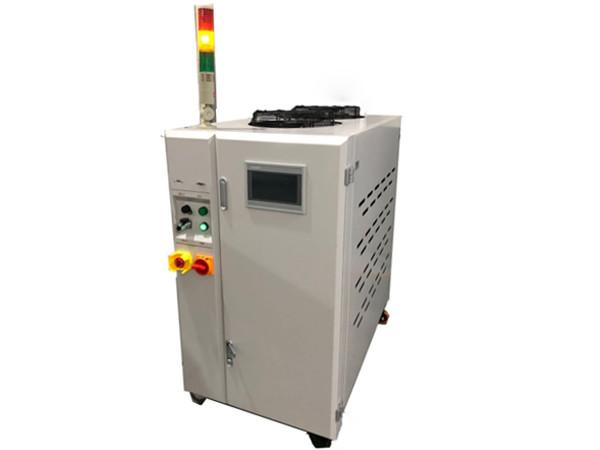

3HP DN15 Diameter Industrial Chilling Equipment

3HP Specification--0-70C Coolant Test System For New Energy Vehicle Battery Pack

Specification

Number

Item

Description

Coolant temperature
  1. ℃~+70℃,adjustable
Chiller size

D 1074×W 634×H 1183mm,Subject to final design (3D as shown below)

Control modelFeed forward PID, model-free self-building algorithm, PLC controller
Control accuracy
±0.2℃,Resolution 0.1℃

Cooling capacity

≥3KW@25℃

Heating capacity

≥4.5KW

Temperature change rateHeating and cooling speed ≥2℃/min(with no load)

Coolant

60% Glycol +40% water(Volume ratio)

Flow

0.5~10L/min adjustable,flow accuracy ±0.05L/min,resolution 0.01L/min

Pressure

0~300Kpa,control accuracy ±2Kpa,resolution 0.1Kpa
Connector with battery/packWater inlet and outlet, 1 inlet and 1 outlet, inlet and outlet pressure and temperature detection, inlet flow detection
Liquid tank1 liquid tank, internal circulation of liquid

Power

About 6.5KW(subjected to final design)
Cooling modeAil cooled

Diameter

DN 15


Function:


High-low temperature coolant test system for batterys is specially designed for thermal and hydrodynamic test on liquit-cooling battery pack . According to the demands of battery performance test for new energy vehicles,Chiller is equipped with a variety of high performance sensors, with this system, you can:

A. Test flow rate, pressure and temperature of the battery pack coolant
B. Provide the temperature simulation, the pressure simulation and the flow simulation of the temperature range.
C. Support RS485, CAN and other communication protocol,which make the communication with host computer or charging machine available.
D. Various working condition for the battery reliability and stability test can be simulated thanks to the multi-PID which controls the heater and refrigeration units.


Main Features

1.Wide temperature control range: -40 ℃ - 85 ℃, 0.1 ℃ for minimum temperature fluctuation
2.Direct cooling technology is used. Compressor takes part in the whole temperature control circulation, heating and cooling are together.
3.Heaters are equipped to pre-heat battery pack
4.VF high temperature circulation pump is used to avoid leakage
5.Flow and pressure can be set by equipping sensor and inlet&outlet pressure gauges.
6.Equipped with equal-square valve to test the cooling channel inner resistance of motors.


Application
 Take away the waste heat produced in the process of battery charging/discharging test.
 Battery pack heating test
 High temperature test, to test battery pack’s high temperature performance and stability.
 Thermal performance test, to test the efficiency of battery pack cooling system.
 Variable temperature test, to test the battery’s performance under different temperature.
 Pressure drop test and flow resistance test, to test the inner resistance of battery pack.
 Pressure proof test, to test the sealing property of the battery pack cooling tunnel.
