| Categories | Cisco Gigabit Switch |
|---|---|
| Brand Name: | Cisco |
| Model Number: | N9K-C9372TX-E |
| Place of Origin: | USA |
| MOQ: | 1 |
| Price: | $100-$120 |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Delivery Time: | 5-8 work days |
| Packaging Details: | Neutral packing/Original packing |
| Brand: | Cisco |
| Model: | N9K-C9372TX-E |
| Warranty: | one year |
| Ports: | ≥ 48, 48 fixed 1/10GBASE-T and 6 QSFP+ ports |
| Switching capacity: | 1150mpps |
| Forward Rate: | PWR-C1-1100WAC |

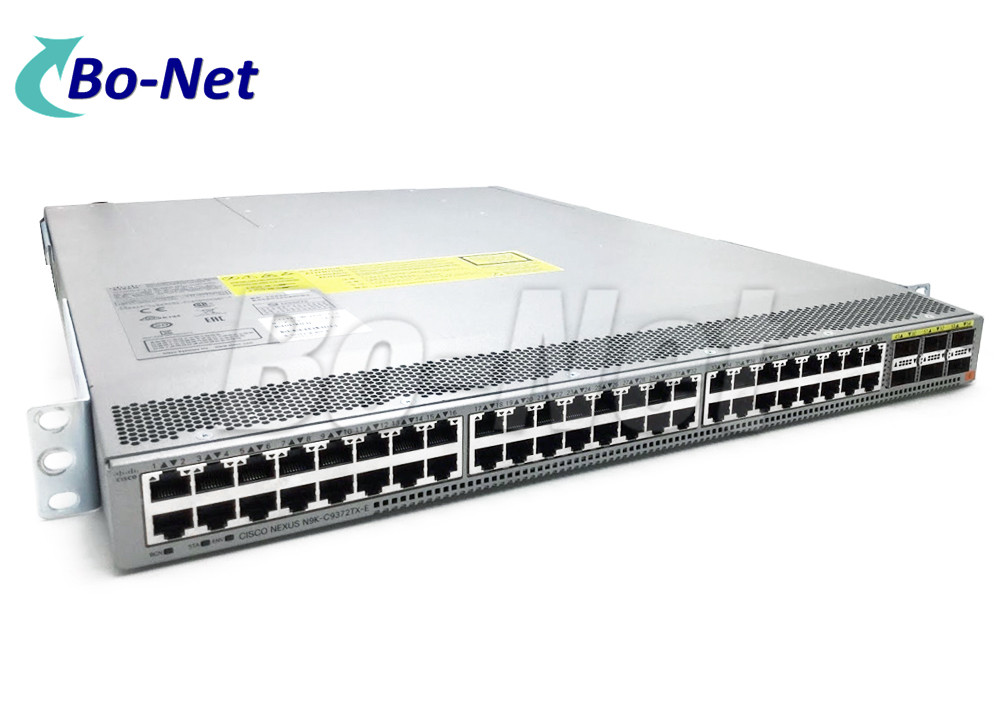

Cisco N9K-C9372TX-E Nexus 9300 Network Switch 48 Port 1/10G-T 6 Port 40G QSFP+ Cisco Gigabit Switch
| Part Number | Product Description |
| Base Part Number | |
| N9K-C9396PX | Nexus 9300 with 48p 1/10G SFP+ and 12p 40G QSFP |
| N9K-C9396TX | Nexus 9300 with 48p 100M/1/10G-T and 8p 40G QSFP |
| N9K-C93128TX | Nexus 9300 with 96p 100M/1/10G-T and 8p 40G QSFP |
| N9K-C93120TX | Nexus 9300 with 96p 100M/1/10G-T and 6p 40G QSFP |
| N9K-C9332PQ | Nexus 9300 with 32p 40G QSFP |
| N9K-C9372PX-E | Nexus 9300 with 48p 1/10G SFP+ and 6p 40G QSFP+ |
| N9K-C9372TX-E | Nexus 9300 with 48p 100M/1/10G-T and 6p 40G QSFP+ |
| Product Code | N9K-C9372TX-E |
| Ports | 48 fixed 1/10GBASE-T and 6 QSFP+ ports |
| Form factor | 1 RU |
| Throughput (Tbps) | 1.44 |
| Supported speeds | 1/10 Gigabit Ethernet speeds |
| 40 Gigabit Ethernet uplink port | 6 fixed QSFP+ ports ·Advanced QSFP+ optics enable connectivity using existing 10 Gigabit Ethernet fiber.·The switch offers 25 MB of additional packet buffer space shared with all ports for more resilient operations |
| Typical power(AC & DC) | 210W |
| Maximum power(AC & DC) | 537W |
| Maximum number of longest prefix match (LPM) routes | 128,000 |
| CPU, SSD, and memory | Dual-core 2.5-GHz x86 CPUs with 64-GB SSD drive and 16 GB of memory provide enhanced network performance. |
| Buffer (MB) | 37 |
| Operating System | NX-OS, ACI |
| Fans | 4 |
| Physical (H x W x D) | 1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm) |
| Acoustics | 48.5 dBA at 40% fan speed, 64.9 dBA at 70% fan speed, and 77.8 dB at 100% fan speed |
| Weight(without power supplies or fans) | 22.2 lb (10.1 kg) |
|
