| Categories | Waterproof Pressure Sensor |
|---|---|
| Place of Origin: | China |
| Brand Name: | OEM |
| Supply Ability: | 20,000 pcs per month |
| Packaging Details: | Stardard Export Packing By carton |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Type: | flush diaphragm waterproof pressure sensor |
| Pressure range: | -0~0.5mH2O,...,200mH2O/0.05bar,..,20bar |
| Output signal: | 4~20mA,0~10VDC,0~5VDC,1~5VDC,0.5~4.5V |
| Accuracy: | 0.1%FS,0.25%FS,0.5%FS |
| Power supply: | 24VDC,12~36VDC,9VDC,5VDC |
| Pressure connections: | KF16,G1/2,1/2NPT,PT1/2,1/2BSP,M20*1.5,others |
| Electrical connections: | Connector DIN43650, M12x1 connector 4-pin, Cable outlet with cable |
| Operating Temp. Range: | -20 to +85°C |
| Material of Diaphragm: | 316L stainless steel, Option Hastelloy C |
| Certificate: | CE, ISO9001 |
| Certification: | CE;ISO |
| Delivery Time: | 5-10days |
| Payment Terms: | L/C, T/T, Western Union |
| Company Info. |
| Beijing Silk Road Enterprise Management Services Co.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

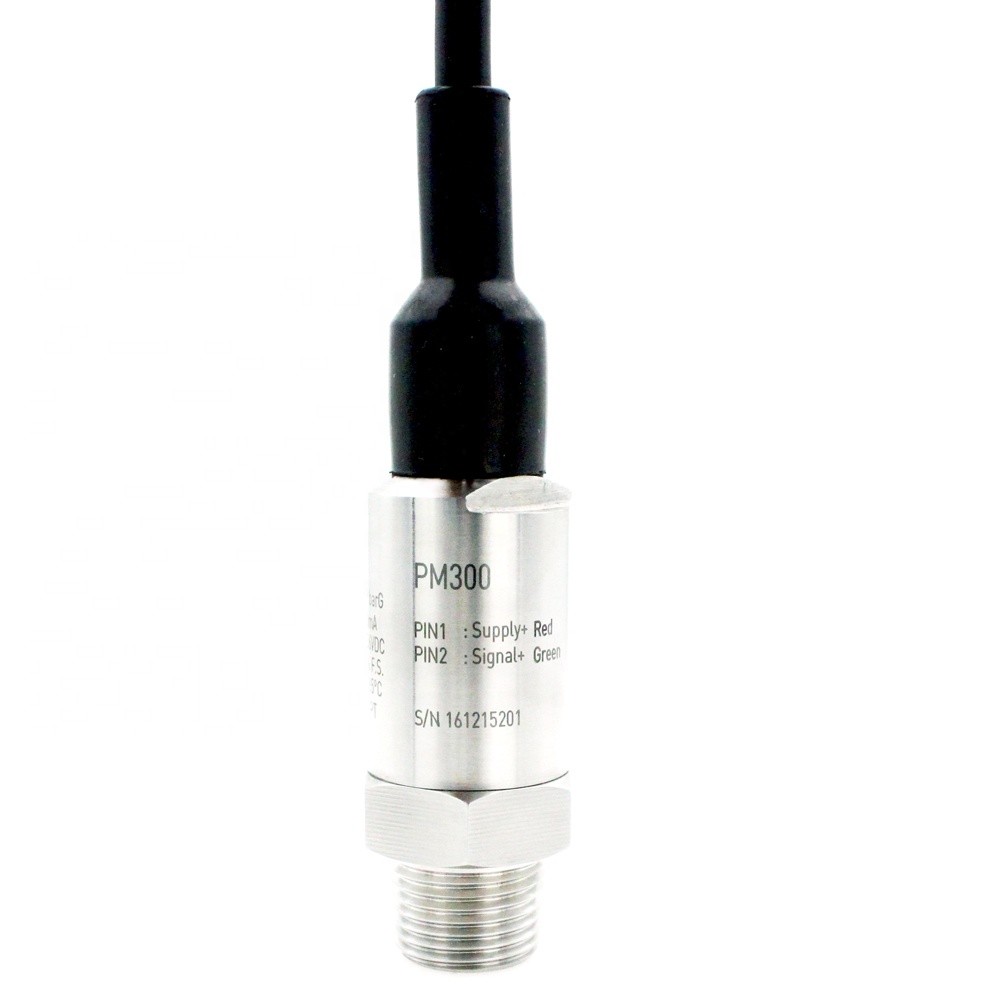

flush diaphragm waterproof pressure sensor for Food and Beverage Industry.
flush diaphragm waterproof pressure sensor is made from high-quality silicon Piezoresistive chip. All process connections of the flush pressure
transmitter are made of stainless steel, fully welded and isolate the process medium from the pressure measuring instrument via a positive seal. The lush diaphragm waterproof pressure sensor is precision engineered to fit food, pharmaceutical and chemical liquid pressure measurement.
A wide range of process connection and electrical connection options are available to meet almost requirement.
Features
- Pressure measuring ranges from 0~0.5mH2O,...,200mH2O/0.05bar,..,20bar
- Absolute, gauge and sealed gauge
- Accuracy: ±0.5%FSO
- Calibrated and temperature compensated
- Flush diaphragm construction
- Piezoresistive pressure sensor design
- Variety of Pressure & Electrical connections
- Output 4...20mA,0...10V,0...5V and others
- IP68 waterproof
Applications
- Process control systems
- Food and beverage
- Medical
- Papermaking
Performance Specifications
Parameter | Value | Units | |
General | Pressure Range | 0~0.5mH2O,...,200mH2O/0.05bar,..,20bar | / |
Overpressure | 1.5xFS | bar | |
Environmental | Operating Temp.Range | -20 to +80 | °C |
Compensated Temp.Range | 0 to 50 | °C | |
Vibration | 10 | g(20 to 2000Hz) | |
Shock | 100 | g(10ms) | |
Cycles | 10x106 | cycles | |
Electrical @25°C(77°F) | Output Signal /Supply Voltage | 4...20 mA: 24 (12...36) VDC 0...5 VDC: 24 (12...36) VDC 1...5 VDC: 24 (12...36) VDC 0...10 VDC: 24 (15...36) VDC 0.5...4.5 VDC: 5 VDC (ratiometric) | |
Load Resistance | <(Vs-12)/0.02A (For current output) >10kΩ (For voltage output) | ||
Insulation Resistance | 100 | MΩ@50VDC | |
Physical Specifications | Media Compatibility | All media compatible with 316L SS | |
Housing | 304 stainless steel | ||
Diaphragm | 316L stainless steel | ||
Seal Ring | Viton or NBR | ||
Oil Filling | Silicone oil | ||
Protection | IP68 | ||
Net Weight | Approx.275g | ||
Performance1 | Accuracy2 | ±0.5[typ.] | % FSO |
Temp. Coeff– Zero3 | ±1.5[typ.] | % FSO | |
Temp. Coeff– Span3 | ±1.5[typ.] | % FSO | |
Long-Term Stability | ±0.3[typ.] | % FSO | |
Notes 1. All values measured at 25°C(77°F) 2. Including non-linearity, hysteresis and repeatability. 3. 0°C to 50°C(32°F to122°F) with reference to 25°C(77°F). The listed specifications and dimensions are subject to change without prior notice. | |||
Connection Diagrams
|
