Blue 45mm 0.9mm LC UPC Fast Connector

FAOC7103-2-ULC 45mm Blue LC UPC Fiber Optic Fast Connector For FTTH Drop Cable

Description:

The fiber optic connector assembly (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.

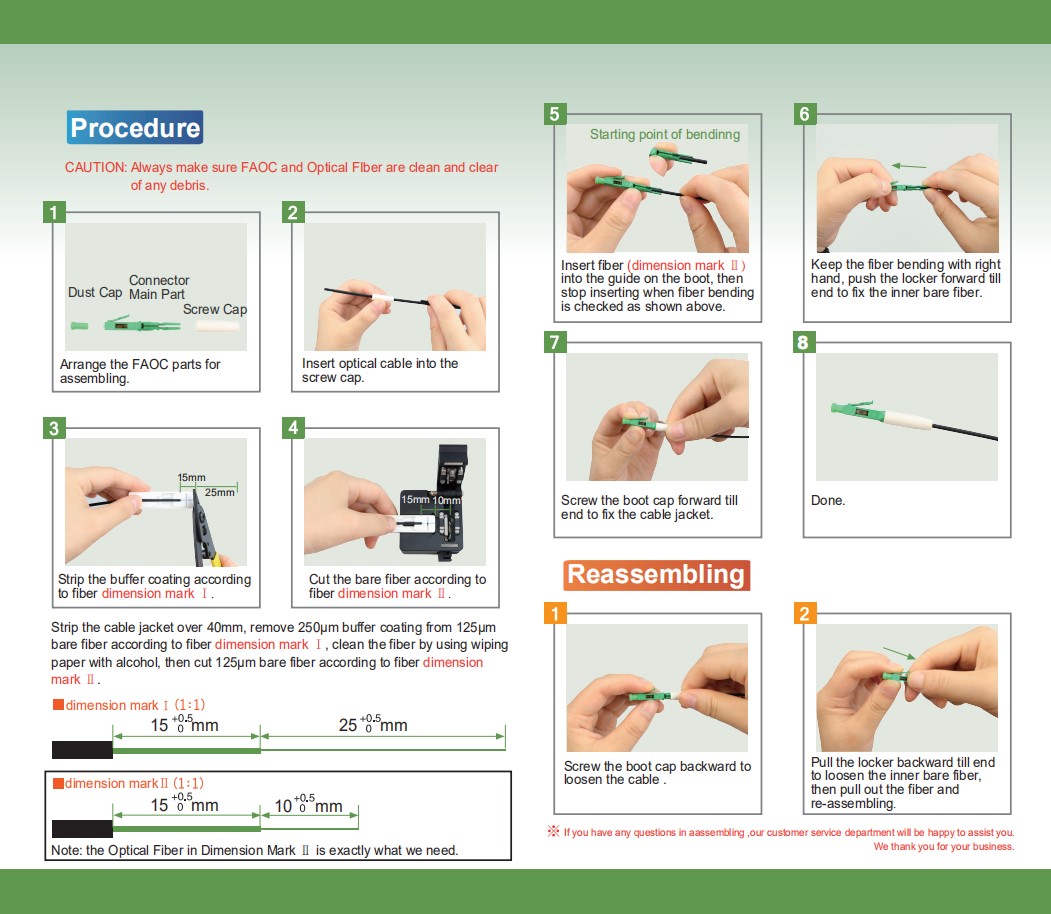

Products Images:

Features:

Field Assembly Optical Connector (FAOC) is designed to enables easy and quick fiber termination on site with unique V-groove mechanical splice technology and double locking system, therefore providing a significant support for users in the construction of FTTH network.

• Compatible with factory-assembled conventional standard SC connectors
• Easy and Quick assembly (within 2minutes) without special tools
• No need electric power, polishing, epoxy or adhesive on site
• Reliable assembly with assembly guide jig
• Available splice inspection with visible light source or optical power meter on site
• Available to re-assembly process after Termination more than 5 times

Specifications:
