Network ccontrol Wall Mount 7" IPS screen Power over Ethernet with RS232 RS485 GPIO

Network ccontrol Wall Mount 7" IPS screen Power over Ethernet with RS232 RS485 GPIO

Network ccontrol Wall Mount 7 IPS screen Power over Ethernet with RS232 RS485 GPIO
Network ccontrol Wall Mount 7" IPS screen Power over Ethernet with RS232 RS485 GPIO
Categories 7" tablet pc for home automation
Brand Name: SIBO
Model Number: Q896
Certification: CE, FCC
Place of Origin: Shenzhen
MOQ: 2 units
Payment Terms: T/T
Supply Ability: 2000pcs/month
Delivery Time: 5-25 working days
colour: black / white
serial port: rs485/ rs232/ gpio
DC IN: 9V-36V
Special: power over ethernet
Power supply: poe / dc in
Service: OEM / ODM
Application: Home application
warranty: 1 year
CPU: Allwinner A20 with dual core
OS: Android 4.2
Packaging Details: 10 pcs in one carton
Contact Now
Company Info.
Shenzhen Sibo Industrial & Development Co., Ltd.
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Network ccontrol Wall Mount 7" IPS screen Power over Ethernet with RS232 RS485 GPIO


Q896 7" Glass Wall Mount Android Home Tablet With POE


Advantage:

  • Android 4.2 OS rooted
  • Inwall flush/onwall surface/glass wall/desktop different mounting ways
  • CBVS , HDMI, USB 2.0(default by USB host),GPIO/RS232/RS485
  • No physical buttons design & No battery design
  • POE (IEEE 802.3 af 48V)
  • Optional to remove Android navigation bar(support full screen software application in kiosk mode)
  • Optional to provide USB jumper to connect PC for debugging
HTB1Ch0xIVXXXXXGaXXXq6xXFXXXM

Specs:

  • Screen:7 inch
  • Capacitive touch screen, glass + glass
  • 1024X600 resolution, 350 nits brightness
  • No any buttons

Power Supply:

  • DC IN : DC 9V-36V
  • POE(optional): IEEE 802.3 AF(48V)

Interfaces:

  • Ethernet Interface(RJ45)
  • HDMI Out
  • USB Socket
  • CVBS IN
  • UART, IO, 3W AMP OUT Available: RS485, RS232

Network:

  • WLAN(WIFI802.1b/g/n)
  • Bluetooth
  • LAN Ethernet RJ45
Product Description

Q896 7" Glass Wall Mount Android Home Tablet With POE

Model NumberQ896
Hardware SpecsSolutionAllwinner’s A20 processor, a dual-Core Cortex™-A7 CPU
CPUARM Cortex A7 Dual-Core, 1.2Ghz
Display7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2
RAM1GB
Nand Flash8GB
Software FeatureSystemGoogle Android 4.2
VideoH.264 2160p video decoding,
Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc.
H.264 High Profile 1080p@30fps or 720@60fps encoding
3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported
Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
AudioOne Speaker 1 X 1 Watt (Integrated 3W Amplifier)
LanguageSupport multi-languages
InterfacesBackEthernet Interface(RJ45)
HDMI Out
USB Socket
CVBS IN
DC IN Power Terminal (9V-36V)
Optional:RS232,RS485,1xGPIO IN, 1xGPIO OUT
NetworkWIFI+BLUETOOTHWIFI (802.11b/g/n), Bluetooth v2.1+EDR/Bluetooth 3.0/3.0+HS/4.0 (Option)
LAN PortEthernet RJ45
Power SupplyDC INDC 9V - 36V
Boot UpAuto BootAuto Boot Up When Power Supplies

bazxcjh_1461224758865_23

glass wall mount picture


IMG_9693

POE


  • Build-in Arduino Board:

An arduino board gives our tablet an ability to control 10 GPIO port(5 analogs and 5 digital/analogs).

Again, sample source code for Arduino and Android is free to use.



We made a unique app that allows you to upload arduino program from the android tablet.

  • RS232 / RS485

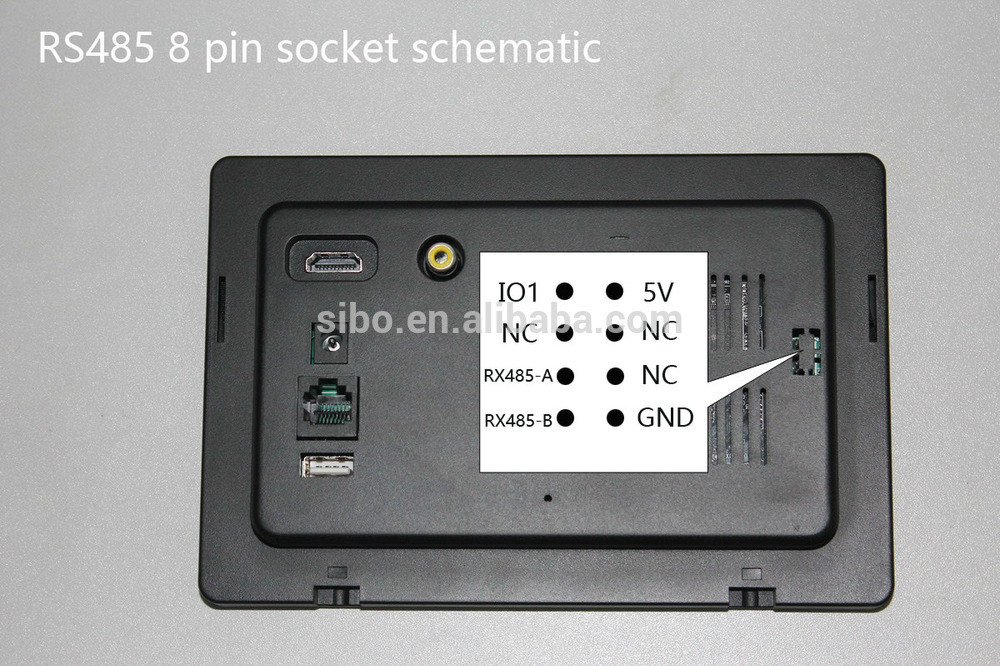

Q896 rs485


  • 10 GPIO + RS 485 solution:



Our Services

  • 15 Years Experiences in Tablet PC for Automation
  • Competitive Price Directly From Manufacturer( Our Own Factory)
  • Excellent Support for Software and Hardware Modification
  • Services for Customized Logo and package
  • Quick Response for after-sale Services
  • 1 Year quality Guarantee

IMG_4724

1IMG_6921

As a manufacturer, ODM/OEM service is provided

Contact Person

Sales: Nancy Li
w.jpg +86 17688897837 s.jpg Nancy@sibo we.jpg chinasibo

c.jpg+86-755-26977944 b.jpg+86-755-26977632

sibo.jpg http://www.sibosz.net/

Co.: Shenzhen Sibo Industrial & developent Co., ltd.


We support sample order. Welcome your inquiry!
