Categories | Collaborative Robot |
---|---|
Brand Name: | Hulk |
Model Number: | HK5404 |
Certification: | CE/ISO9001/IPMS |
Place of Origin: | Jiangsu, China |
MOQ: | 1 Set |
Price: | Negotiate |
Payment Terms: | T/T, L/C |
Supply Ability: | 200 Sets per Month |
Delivery Time: | 21 days after confirm deposit |
Packaging Details: | Fill around the cardboard box with foam, Packing carton dimension for 1 set : 680 * 640 * 380mm |
Product name: | Artificial Intelligence Collaborative Robot Cobots With 540mm Working Envelope |
Axis: | 3, 4, 5 |
Payload: | 1KG |
Position repeatability: | ±0.05 mm |
Working radius: | 540mm |
Wight: | 13 KG |
Power(w): | Single phase 110V-240V 50 Hz |
Application: | Picking,Load,handling,Assembly,Medical Equipments |
Applicable industries: | Manufacturing Plant,Food & Beverage Factory,Retail |
Warranty: | 1 Year |
After-sales service provided: | Online support,Video technical support |
HS Code: | 8428909090 |
Color: | Customized |
Company Info. |
Suzhou Hulk Robot Co., Ltd. |
View Contact Details |
Product List |

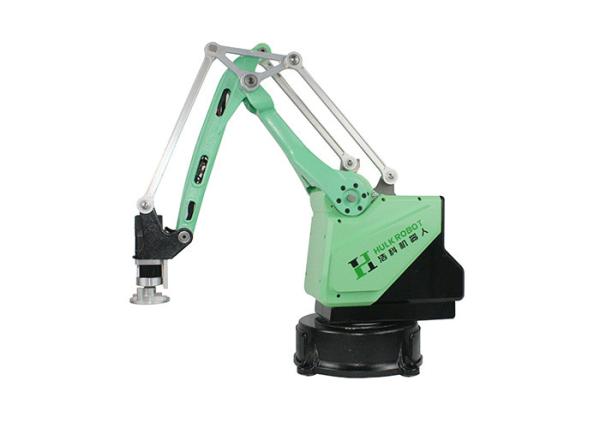

1 Kg Paylod 540mm Small Industrial Cobot Collaborative Robot
This 540mm light mechanical arm is equipped with high security, high flexibility and high precision. It is easy to program and operate intuitively, and even non-professionals can learn and use it quickly.
Product Parameters:
Model | HK5404 |
Working radius | 540mm |
Number of axis | 3 Axis/4 Axis |
installation | Floor |
N.W. | 13kg |
Position repeatability | ±0.05mm |
Max playload | 1kg |
Power Consume | 0.4KVA |
Power supply | Input:Single phase 110V-240V 50Hz Output:DC 24V(400W) |
External communication | WIFI/Ethernet |
Application | Picking, Loading, Casting, Polishing Etc |
Safety standard | ISO 9001-2015 |
Control software | Hulkbot Studio |
Drive System | Steper motor |
Working condition | -10°C~60°C |
I/O | Input 5/Output 5 |
Axis'Working Range:
Working envelope | J1 | ±160° |
J2 | -42°~85° | |
J3 | -20°~100° | |
J4 | ±165° | |
Max Speed | J1 | 360°/s |
J2 | 360°/s | |
J3 | 360°/s | |
J4 | 500°/s |
![]() |
