SUS304 150L Mask Temperature Humidity Test Chamber With Touch Screen

1. Introduction

Sanwood constant temperature and humidity test chamber is widely used in scientific research, research institutes, quality inspection institutes and other industries to do warm and humid heat tests of electronic and electrical products, materials, parts, equipment, etc., alternating heat test and constant temperature test, high and low temperature routine tests, low temperature storage,etc, in order to evaluate the performance of the sample under given environmental conditions.

For mask condition, the temperature humidity test chamber can be used to simulate the test conditions per EN136:

1) Dry atmosphere of 70±3 ℃

2) Atmosphere of 70±3 ℃ and 95%RH ~ 98%RH

3) Low temperature -30±3 ℃

2. Standard Met and Implemented

EN136 8.2 Condition

GB/T2423.2-89 high temperature test method

GB 2423.1-89 test A: low temperature test method

GJB150.4-1986 test at low temperature

IEC60068-2-1 low temperature test method

IEC60068-2-38 temperature cycle

IEC60068-2-78 constant humidity temperature

MIL - STD - 202G - 103B humidity test

IEC60068-2-30 humidity temperature cycle

GB/T2423.3 constant humidity heat test method

3. Temperature Humidity Test Chamber Parameter Specifications

The specifications is measured in the environment of + 25 ℃, temperature and humidity performance measurement comply with related regulation of IEC 60068-3 standard; Sensors placed in the air outlet.

5. Chamber details

Chamber Front view

Observation window: tempered glass with lighting

15L drawer type water tank, located in front of the machine, under the door.

Stainless steel sample holder 2 layers, height is adjustable, load-bearing (uniform): 20kg/layer

Our circuits are arranged in accordance with international UK standards and are equipped with complete circuit diagrams. Each line has a clear line number, which is clearly defined and clearly defined. We use electrical components of internationally renowned brands, such as France Schneider, Switzerland Carlo Gavazzi ,Japan Mitsubishi, Korea Rainbow, Korea SAMWONTECH and so on.

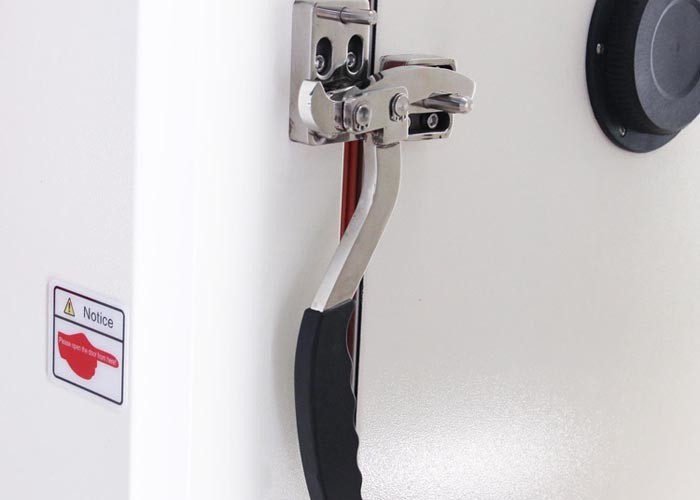

Unique self-made polished door lock design, using the principle of leverage, the door is closed and easy to operate, reliable, stable, durable, easy to operate, long life.
