Brand Name: | Wakestone |
Model Number: | Wakestone |
CertifiC-A-Tion: | ISO |
Place of Origin: | CHINA |
Payment Terms: | L/C, T/T |
Delivery Time: | 8-10 workdays |
MOQ: | 1.00 |
Packaging Details: | Standard export package |
AppliC-A-Tion: | Construction, Excavaotor |
Power of Impulse: | 6.5 ton |
Vibration Frequency: | 2000 rpm/min |
Oil Flow: | 45-85 l/min |
Operating Pressure: | 100-130 kg/cm2 |
Weight: | 550-600 kg |
Carrier Weight: | 12-16 ton |
Company Info. |
Guangzhou Zhenhui Machinery Equipment Co., Ltd |
Verified Supplier |
View Contact Details |
Product List |

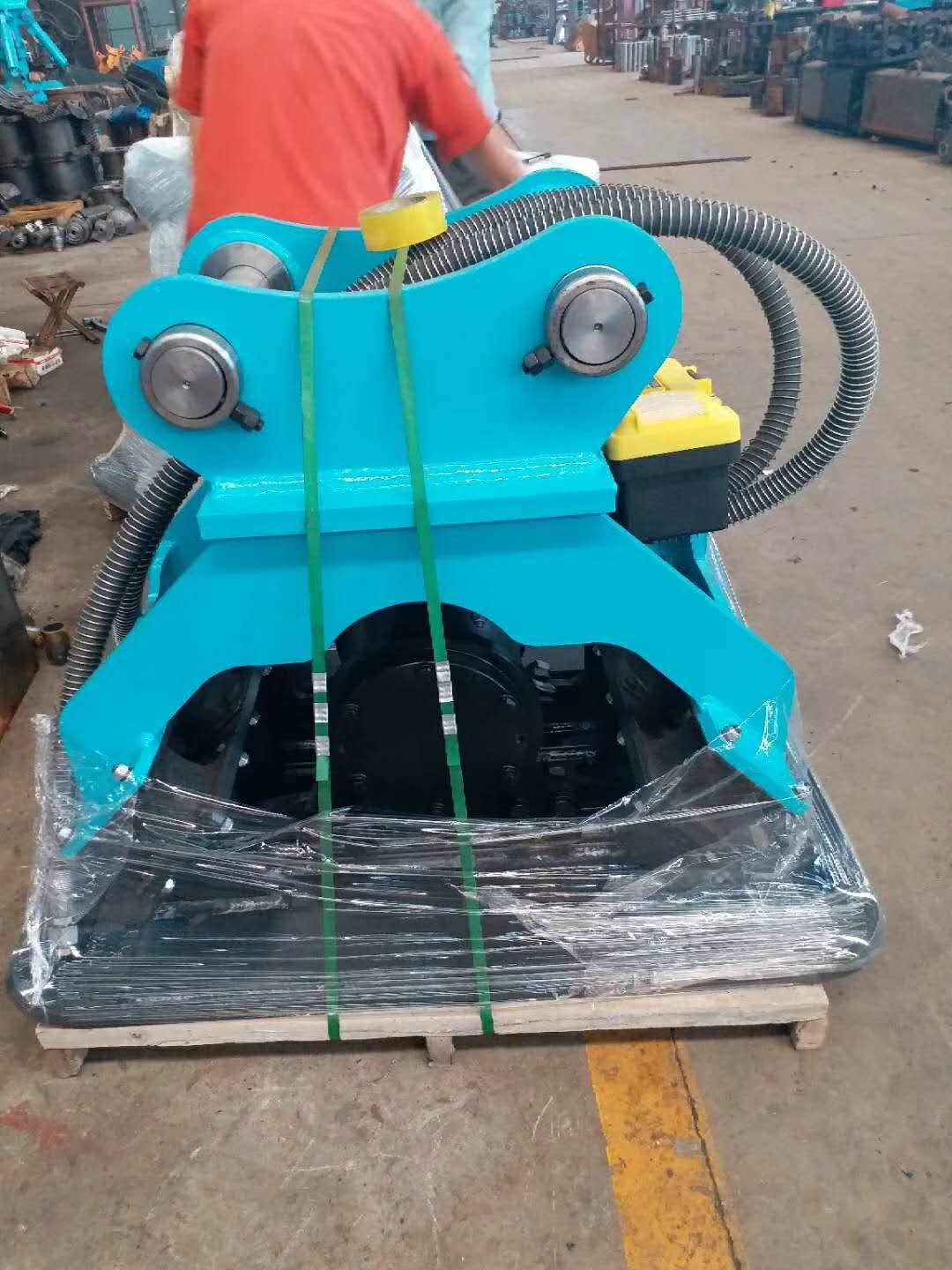

CE Approved Excavator Hydraulic Vibro Concrete Compactor
1. High quality hoses without leakage
2. Wide range of mounting options are avaliable for pinon, skid
steer or quick coupler configurations
3. Damping rubber to be lasting and durable.
Model | Unit | YGC-02 | YGC-06 | YGC-08 | YGC-10 |
Suitable carrier | ton | 4-8 | 12-18 | 19-24 | 25-32 |
Pin Diameter | mm | 45/50 | 60/65 | 70/80 | 90 |
Impact force | ton | 4 | 6.5 | 15 | 15 |
Max. Number for Vibration | rpm | 2000 | 2000 | 2000 | 2000 |
Oil flow | l/min | 45-75 | 85-105 | 120-170 | 120-170 |
Pressure | Kg/cm2 | 100-130 | 100-130 | 150-200 | 150-200 |
Weight | Kg | 400 | 750 | 1000 | 1100 |
Impact size (LxWxT) | mm | 900x550x25 | 1160x700x28 | 1350x900x30 | 1350x900x30 |
Total height | mm | 760 | 920 | 1060 | 1100 |
Total width | mm | 550 | 700 | 900 | 900 |
![]() |
