| Categories | Solid Carbide End Mills |
|---|---|
| Brand Name: | GREWIN/OEM |
| Model Number: | D1-D12 |
| Certification: | ISO,CQC |
| Place of Origin: | Zhuzhou |
| MOQ: | 10pcs for each |
| Price: | USD1.15/pcs |
| Payment Terms: | T/T, Western Union,Paypal, Alibaba |
| Supply Ability: | 50000pcs/month |
| Delivery Time: | 5-8 work days |
| Packaging Details: | Individual plastic box packaging |
| Product name: | Customized Solid Carbide Chamfer Cutter End Mills Cutting Tools |
| Suitable for: | Carbon Steel,Cooper.Cast Iron.Carbon Steel.Mould Steel,Hardened Steel |
| Flute: | 4 Flutes |
| Machine type: | Milling Machine,ANCA, from German |
| Usage: | General High Speed Cutting,Metal |
| Hrc: | 45/55/60/65 |
| Application: | milling,Solid Carbide End Mills |
| Chemical composition: | 6%-12%Co-WC |

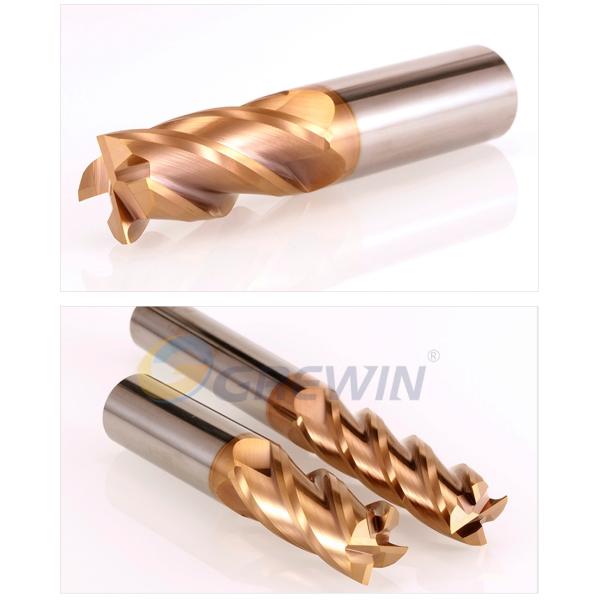

GREWIN HRC 55 Solid Carbide 4F Copper Coated End Mill For Cutting Steel
Our advantage
1 100% raw material
2 HIP Furnace Sintered
3 High precision grinding
4 Bore size up to 0.1mm
5 Produce finished dies with steel case
6 Fast delivery
7 Professional manufacturer of tungsten carbide products with 20
years experience.
8 Complete Quality Control System and strict inspection.
Micro grain raw material
Grain size: 0.4-0.6μm
Co 10%, 12%
TRS >3600 N/mm2
Hardness HRA 91.8-92.5
Work piece HRC45-50 HRC55-60 HRC65 HRC68
Helix angle 30°-45 °
Diameter of cutting edge 0.2-0.9 mm; 1-20 mm
Diameter of rods 4-20 mm
Length 50-100 mm
Cutting Form Flat, Square, Ball nose, Corner Radius, Taper Flute,
etc
Flutes No. 1-7
Introduction of the carbide materials of the End mill
| Carbide Grade | Technical Details of tungsten carbide rod |
| 10U | Co:10% WC 89% rare element: 1% HRA: 90.5°Grain Size: 0.75um |
| 12U | Co:12% WC 85% rare element: 3% HRA: 92.5°Grain Size: 0.4um |
| K40 | Co:12% WC 84% rare element: 4% HRA: 93°Grain Size: 0.4um |
| K44 | Co:12% WC 84% rare element: 4% HRA: 93.5°Grain Size: 0.4um |
Specification:
| Order No. | Flute dia (d) | Cutting length ( l ) | Shank dia (D) | Overall length(L) |
| 1.0×2.5×4D×50L | 1.0 | 2.5 | 4 | 50 |
| 1.5×4×4D×50L | 1.5 | 4 | 4 | 50 |
| 2.0×5×4D×50L | 2.0 | 5 | 4 | 50 |
| 2.5×7×4D×50L | 2.5 | 7 | 4 | 50 |
| 3.0×8×4D×50L | 3.0 | 8 | 4 | 50 |
| 3.5×10×4D×50L | 3.5 | 10 | 4 | 50 |
| 4.0×10×4D×50L | 4 | 10 | 4 | 50 |
| 4.5×11×6D×50L | 4.5 | 11 | 6 | 50 |
| 5.0×13×6D×50L | 5.0 | 13 | 6 | 50 |
| 5.5×13×6D×50L | 5.5 | 13 | 6 | 50 |
| 6.0×15×6D×50L | 6.0 | 15 | 6 | 50 |
| 6.5×15×8D×60L | 6.5 | 15 | 8 | 60 |
| 7.0×17×8D×60L | 7.0 | 17 | 8 | 60 |
| 7.5×17×8D×60L | 7.5 | 17 | 8 | 60 |
| 8.0×20×8D×60L | 8.0 | 20 | 8 | 60 |
| 8.5×25×10D×75L | 8.5 | 25 | 10 | 75 |
| 9.0×25×10D×75L | 9.0 | 25 | 10 | 75 |
| 9.5×25×10D×75L | 9.5 | 25 | 10 | 75 |
| 10.0×25×12D×75L | 10.0 | 25 | 12 | 75 |
| 10.5×25×12D×75L | 10.5 | 25 | 12 | 75 |
| 11.0×28×12D×75L | 11.0 | 28 | 12 | 75 |
| 11.5×28×12D×75L | 11.5 | 28 | 12 | 75 |
| 12.0×30×12D×75L | 12.0 | 30 | 12 | 75 |
| 13.0×33×16D×100L | 13.0 | 33 | 16 | 100 |
| 14.0×40×16D×100L | 14.0 | 40 | 16 | 100 |
| 15.0×40×16D×100L | 15.0 | 40 | 16 | 100 |
| 16.0×40×16D×100L | 16.0 | 40 | 16 | 100 |
| 17.0×40×20D×100L | 17.0 | 40 | 20 | 100 |
| 18.0×40×20D×100L | 18.0 | 40 | 20 | 100 |
| 19.0×40×20D×100L | 19.0 | 40 | 20 | 100 |
| 20.0×40×20D×100L | 20.0 | 40 | 20 | 100 |
| 25.0×40×25D×100L | 25.0 | 40 | 25 | 100 |
Our Services
More than 2000 products are available. Assembly line production,
high standard and strict requirements.
OEM Services Offered
Customized Tools Offered
Free laser marking on tools and boxes Offered
Fast delivery time and Convenient Transportations. We have discount
on shipping cost from our courier companies, such as FedEx, DHL,
TNT, UPS etc.
|
