| Categories | Exploration Drilling Rigs |
|---|---|
| Brand Name: | GLORYTEK |
| Model Number: | XY-4 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram, D/P, D/A |
| Supply Ability: | 30 sets/month |
| Delivery Time: | 20 days |
| Packaging Details: | Standard exporting packing |
| Name: | Xy-4 Exploration Drilling Rigs 1000m Capacity Geotechnical Investigation Drill Rig |
| Keyword: | Xy-4 Exploration Drilling Rigs |
| Depth: | 1000m |
| Drill dia.: | NQ,HQ, PQ |
| Dimension: | 1620*970*1560mm |
| Company Info. |
| Glorytek Industry (Beijing) Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

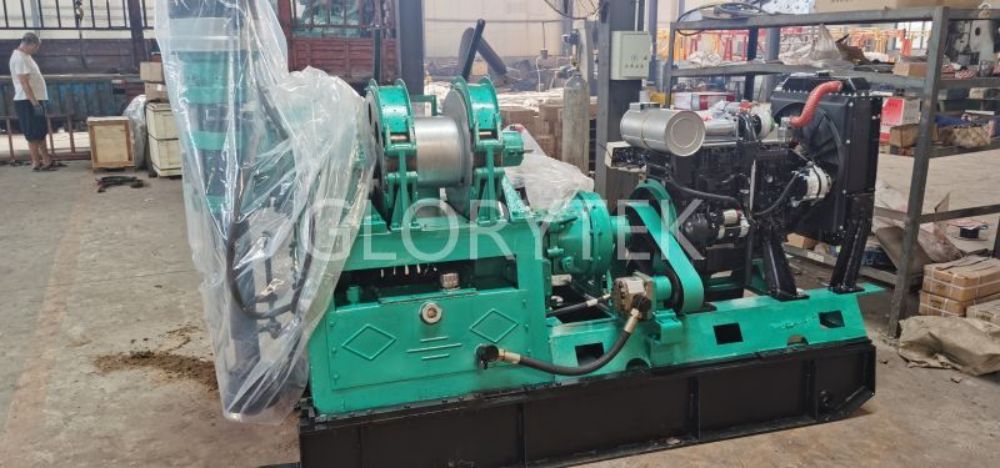

Xy-4 Exploration Drilling Rigs 1000m Capacity Geotechnical Investigation Drill Rig
XY-4 Core Drill is a new type high speed diamond core drill
designed according to the development of geological work in China
and developed to meet the requirements of clients.
The drill has 8 rotary speed stage, the Max, speed 1588 rpm, the
min speed 101 rpm, so it is suitable for various drilling for solid
mineral deposits with diamond or tungsten-carbide tipped bit.
It is suitable for engineering geological subterranean water explorations as well as explorations of shallow layer oil and natural gas, and can be used to drill holes for ventilation and drainage of main gallery.
| 1. Basic Specification of XY-4 Skid model core drill rig | |||
| Drilling Depth | 1000m(Φ42mm Normal Rod) | ||
| 700m(Φ50mm Normal Rod) | |||
| 1000m(BQ Rod) | |||
| 700m(NQ Rod) | |||
| Rotary Angle of Spindle | 0～360° | ||
| Dimensions (L×W×H) without crawler | 2710×1100×1750mm | ||
| Weight of the Rig (without power unit)) | 1720kg | ||
| 2.Rotator(equipped with52kW,2200r/min power unit) | |||
| Spindle Rotation Speed | Positive in Low Speed | 148；274；392；569r/min | |
| Positive in High Speed | 456；841；1201；1747r/min | ||
| Negative in Low Speed | 122r/min | ||
| Negative in High Speed | 338r/min | ||
| Stroke of Spindle | 600mm | ||
| Max. Lifting Capacity of Spindle | 80kN | ||
| Max. Pressuring Force of Spindle | 60kN | ||
| Max. Torque of Spindle | 3355N·m | ||
| I.D. of Spindle | 68mm | ||
| 3. Winch | |||
| Max. Lifting Force | 45kN | ||
| Lifting speed(the 3rd layer) | 0.82；1.51；2.16；3.15m/s | ||
| Diameter of steel wire | 16mm/19mm | ||
| Drum capacity for wire | 90m | ||
| 4. Rig Travelling Device on Skid | |||
| Sliding Stroke of Cylinder | 460mm | ||
| Max Distance to the hole after back travelling of rig front end | 310mm | ||
| 5.Hydraulic System | |||
| Set System Working Pressure | 8MPa | ||
| Gear Hydraulic Pump Displacement | 20ml/r | ||
| 6.Power Unit | |||
| Model | Y2-200L-4 Electromotor | Diesel Engine | Diesel Engine |
| Power | 37kW | 52kW | 42kW |
| RPM | 1480r/min | 2200r/min | 1500r/min |
Glorytek Industry ( Beijing) Co., Ltd is a professional
manufacturer and supplier of drilling equipment and drilling tools
with over 20 years experience. We are supported and assisted by
highly experienced R & D team and engineers that enable us to
complete all the assigned projects successfully as per clients’
requirements.
Glorytek Drill is one of the most important member of “Sundrill
Corporation”.Our factory covers an area of 250,000 square meter,
construction area is about 150,000 square meter, having machining
machinery, CNC processing center, friction welding machine, testing
equipment etc. over 200 sets and more than 600 employees.Our
products have been exported more than 60 countries around the
world.
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling
depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing
and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is
about 25-30 days after receiving payment, the drilling tools would
be about 15 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the
quick wear parts).
Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
|
