13MP AF 3.5" IPS 1D 2D Barcode Scanner IP65 Waterproof Handheld Terminal Pda

Categories Android Barcode Scanners
Brand Name: SPEEDATA
Model Number: SD35
Certification: CCC、CE、ROHS、FCC
Place of Origin: Beijing, China
MOQ: 1pc
Supply Ability: 10000pcs/Mouth
Packaging Details: Standard
OS: Android 8.1
CPU: Octa-core 2.0GHz
RAM: 2GB
ROM: 16GB
Display: 3.5-inch IPS high light screen
Resolution: 640*960
Weight: 5200mAh
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

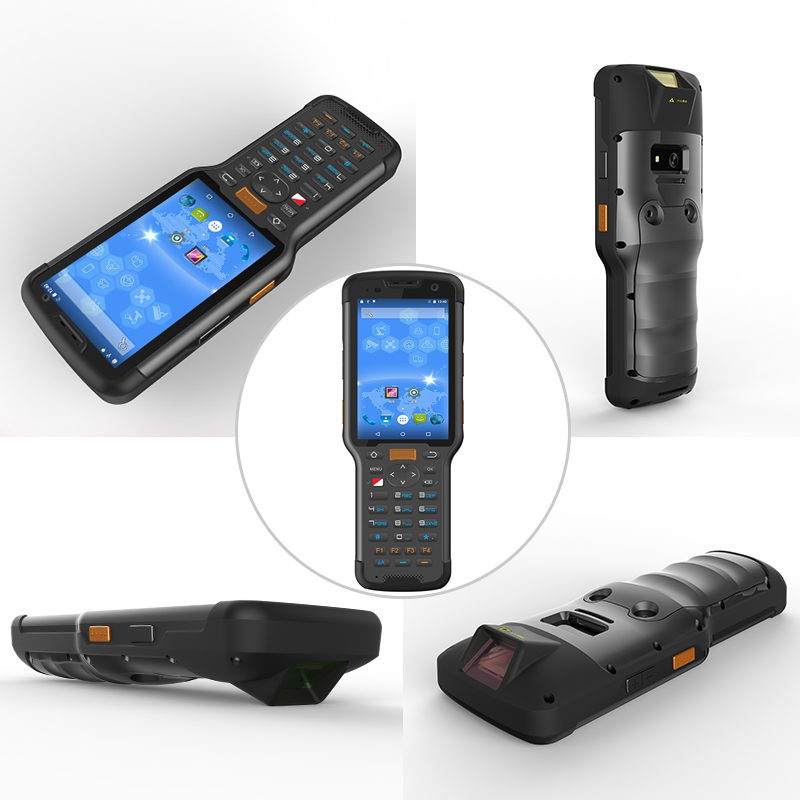

13MP AF 3.5" IPS 1D 2D Barcode Scanner IP65 Waterproof Handheld Terminal Pda

Product Introduction


Strong functions

SD35 is especially designed for high-intensity scanning work in logistics, express delivery, warehousing management, retailing, etc. With large capacity battery, it is able to support long time continuous working without interruption.


Comfortable use

It can be found that the scan head of SD35 is at an angle of 30 degrees and the handle uses special arc design. Additionally, side scan button design allows operators to scan barcodes with only one hand. In this way, easy and convenient operation is realized.


Visual enjoyment

The SD35 screen is 3.5-inch IPS high light screen, with high resolution of 640*960. Operators could take a clear and accurate look at the screen, even if under the bright sun.


Other configurations

The SD35 device supports bluetooth, gps, 2G/3G/4G, 2.4G and 5G dual-frequency wifi. And with IP 65 protection level, it is waterproof, dustproof and shock resistant.



SD35 Basic Parameters
OSAndroid 8.1
CPUOcta-Core 2.0GHz
RAM2GB
ROM16GB
ExpansionMicro SD (TF) card slot up to 128GB
Keypad35 physical buttons(include 5 side buttons)
NotificationSound/vibration/LED prompt
AudioBuilt-in speaker, Dual silicon mic noise reduction
Dimentions184*70*29.8mm
Weight( with battery)290g
Camera
CameraRear camera 13MP AF+High brightness LED flash+Front Camera 5MP FF
Focus modeAutofocus ; Fixed focus
Display
Display3.5 inches,IPS high light screen
Resolution640*960
Touch Panel5-point capacitive touch screen
Power
BatteryLarge-capacity Removable Li-ion Battery 5200mAh
ChargingPE fast charging, full charging time< 4 hours
Interface2Nano SIM cards
1micro SD card slot up to 128GB
USB-Type C, support fast charging
OTG,Support fast charging5V/9A 1.67
charging and bottom USB connector
Communication
BluetoothBT5.1 BLE
WLANWiFi 802.11 a/b/g/n 2.4G 5G Dual Frequency
WWANFDD-LTE B1/B3/B5/B7/B8
TDD-LTE B38/B39/B40/B41
TDSCDMA B34/B39
WCDMA B1/B2/B5/B8
GSM B2/B3/B5/B8
CDMA1x/CDMA2000 BC0/BC1
GPSGPS+BD+GLONASS
Performance
Operation Temperature-20℃ ~55℃
Storage Temperature-30℃ ~+70℃
Humidity5%~95%(No condensation)
SealingIP65
Drop TestIn the operating range, 6 sides can withstand the impact of 1.5 meters
drop to the concrete floor
Tumble Test6 contact surfaces rolling for 1000 times/ 0.5M
ESD±15kV Air Discharge, ±8kV Contact Discharge
CertificateCCC,CE,ROHS,FCC
Extensibility
NFCSupport agreement:ISO14443A/B, ISO15693
reading distance: 0~5cm
Code scanning
Support code
system
CM60, Support code system:EAN13
EAN8, UPCA, UPCE, Code 128, Code 39
Codabar, UCC/EAN128, RSS,ITF, ITF14
ITF6, ISSN, ISBN, Standard 25, Matrix 25
Industrial 25,Plessey, MSI Plessey
Code 11, Code 93, PDF417, QR Code
DataMatrix, AZTEC, Hanxin Code
Maxicode, Micro QR,Micro PDF417
Composite
PSAMSupport
SensorGeomagnetism, acceleration, optical distance
Optional Accessories
PG35 Scan the handle
Hall control
DC35 Single charging baseCharging input:9V 2A
DC35-6 Six connected charging baseCharging input:9V 2A

About SPEEDATA



As a listed company from china manufacturer, we support you:

  • Completely Free SDK and technical support for you.
  • ODM/OEM customization services according to your needs.
  • 13 months warranty for your devices and other parts as well as 6 months for the batteries. Exend warranty,it'll cost 0.5% for each per year.
  • Free maintenance of the devices and part of accessories replacement in the warranty .if out of the warranty, you'll have to pay the basic cost for them.


FAQ


Question 1: What's your MOQ?

The MOQ of barcode scanner handheld PDA is 1 piece.


Question 2: How long is the delivery time?

The delivery time of barcode scanner goods is different from quantities:
If 1~100 pcs, It's about 5--10 working days;
If 100~500 pcs, it's about 10--20 working days;
If More than 500 pcs, It's about 20-30 working days.


Question 3: Would you like to supply 1 sample for testing?
Yes, Of course. We can provide 1 sample Terminal PDA for your testing.


Question 4: What's the total price for 1 sample?

As a manufacturer of barcode scanner terminal PDA,the more you buy, the cheaper it'll be.
The sample price is a little bit higher than the common wholesale price excluding the freight fee.


Question 5: Are you a manufacturer of Handheld PDA?

Yes, we are a R&D orientation China Listed Company, mainly producing industrial PDA Terminal Hardware and as a software solutions supplier with over 8 years' OEM/ODM experience. We are also cooperating with Foxconn Factory.


Question 6: What kind of services do you support ?

We provide you Free SDK and Technical Support for your Barcode Scanner.
We also provide ODM/OEM Customization Services based to your demands.
We support 13 months Warranty for all the device and 6 months for the batteries. Exend warranty, it costs 10% at the first year, and 15% for the second year.


Question 7: What's for payment term and delivery term ?

It's generally 30%-100% TT in advance for all orders. Meanwhile, Paypal or West Union is acceptable.
FOB Shenzhen as Trade Term.


Question 8: Who are your customers?
Our products have been sold to worldwide,especially market in South/North America, Europe, Asia, Africa Mid-east, etc.
The market share is increasing quickly every year and we get more and more positive feedbacks from our customers.
