LDPE Plastic Shredder Machine

PP PE HDPE LDPE Plastic Shredding Machine Plastic Shredder Machine

Description:

PP PE HDPE LDPE Plastic Shredding Machine Plastic Shredder Machine

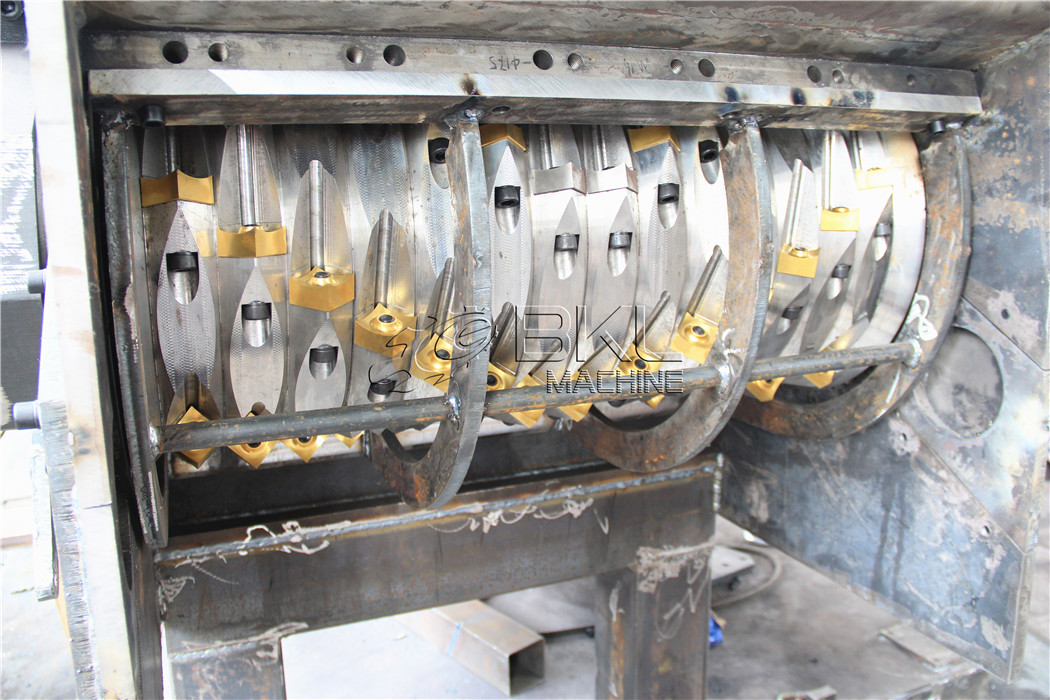

YPS/YPG series Single Shaft shredder has a large diameter profiled rotor made of solid steel, operating at a speed of 74rpm. The concave ground,aggressive 4-way rotating knives are mounted in the grooves of the profiled rotor with special knife holders. This enables a reduction of the cutting gap between the counter knives and the rotor which guarantees a high flow rate,low power consumption and maximum output of shredded material.

The hydraulically operated ram feeds the material automatically in the rotor's cutting chamber by load-related controls. The hydraulic system is equipped with high-pressure valves and volumetric flow controls which can be set according to the requirements of the input material.

Extremely robust pedestal bearing housings are mounted outside the machine and separate to the cutting chamber to prevent dust and dirt penetrating into the oversized bearings. This ensures a long service life and minimum service and maintenance.

Power is transmitted from the motor by a drive belt via an oversized gearbox which is located on the shaft end on one end of the rotor.

A safety switch prevents machine startup when the front panel is open and the machine features emergency stop buttons on the machine body and control panel.

Main technical parameter:

Application:

General purpose REcycling use all applicable. Plastic lump, plastic purgings, plastic pipe, plastic sheet, PE film, PP woven bag, PET bottle, industrial waste paper, wood pallet, circuit board, aluminum material, copper material, wire, cable, etc.

Final Products:

Features:

1.Easy for operation and maintainence

2.Low Power consumption,low noise,low price

3.Large diameter rotor,Low speed, high torque geared drive

4.Compact structure,low occupation place.

5.Powerful hydraulic swing type ram

6.Robust welded steel construction.

7.Two rotor designs with concave ground square knives

8.Electrical hydraulic control to open screen cradle

9.The screen filter sizes ranges for varies material particle size control.

10.PLC program control system, automatically rotating, stop and realize fully automatic operation of equipment, safe and reliable running of the machine.

11.Electrical overloading protective
