Single Mode Functional 1x64 Fiber Optic Switch With Multi Port

1XN 1x64 Fiber Optical Switch Connect Multi Port

1. Product introduction
OSW-1×N single-mode optical switch is a functional device with the function of switching optical paths, and its main purpose:
Remote multi-channel optical monitoring system Establish an optical fiber self-healing network
Optical test system multi-channel test Fiber optic subsystem integration
Product Features:
Low loss and high reliability Multiple parallel interface control Modular design
Product performance:
Working wavelength: 850nm, 1310nm, 1550nm or customized according to user needs
Fiber type: N/125um, single-mode, multi-mode, polarization maintaining fiber

Insertion loss: ≤1.0dB

Crosstalk: ≤－70dB Switching time: ≤10ms (adjacent channel switching)
Repeatability: ≤0.05dB
Working temperature: 0℃～60℃
Storage temperature: -20℃～70℃
Return loss: ≥55dB (single-mode fiber)
Lifespan: 107 times
Power requirements: 5V DC power supply, 1A current.

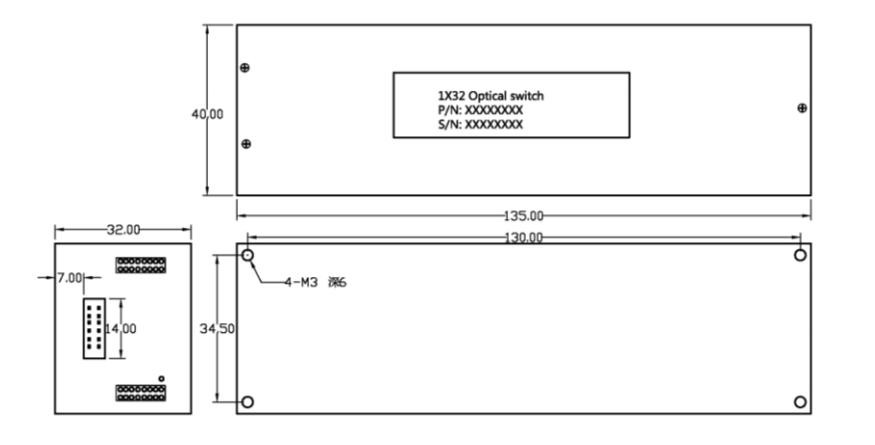

2. Outline drawing of optical switch module

1XN(N<64) Optical Switch Dimensions (mm): (L)135×(W)40×(H)32

Notice:
When installing the optical module, the optical fiber core wire must not be excessively bent (refer to the figure below), so as not to affect the optical module
Performance indicators. The bending radius should not be less than 5cm
