| Categories | All In One PC Touchscreen |
|---|---|
| Brand Name: | LONGYU |
| Model Number: | LYA156K20C-W-BT |
| Certification: | CE RoHS |
| Place of Origin: | China |
| MOQ: | 1 pcs |
| Price: | TBA |
| Payment Terms: | T/T, Western Union，Paypal |
| Supply Ability: | 10000PCS/Month |
| Delivery Time: | 7-10 Work Days |
| Packaging Details: | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Material: | Plastic face frame, metal back cover |
| Luminance: | 300 cd/ m² |
| Touch form: | Capactive 10 touch |
| Operating System: | Android11.0/Ubuntu18.04/Linux 4.19 |
| CPU: | RK3568 / Cortex A55 4 core main frequency at 2.0GHZ |
| IP Grade: | Industrial grade IP65 dustproof and water proof |
| Working Temperature: | -10℃ ~ 60℃ |
| Storage temperature: | -20℃ ~ 70℃ |
| Size: | 15.6 Inch |
| Company Info. |
| Shenzhen Huayao Hengsheng Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Product Description

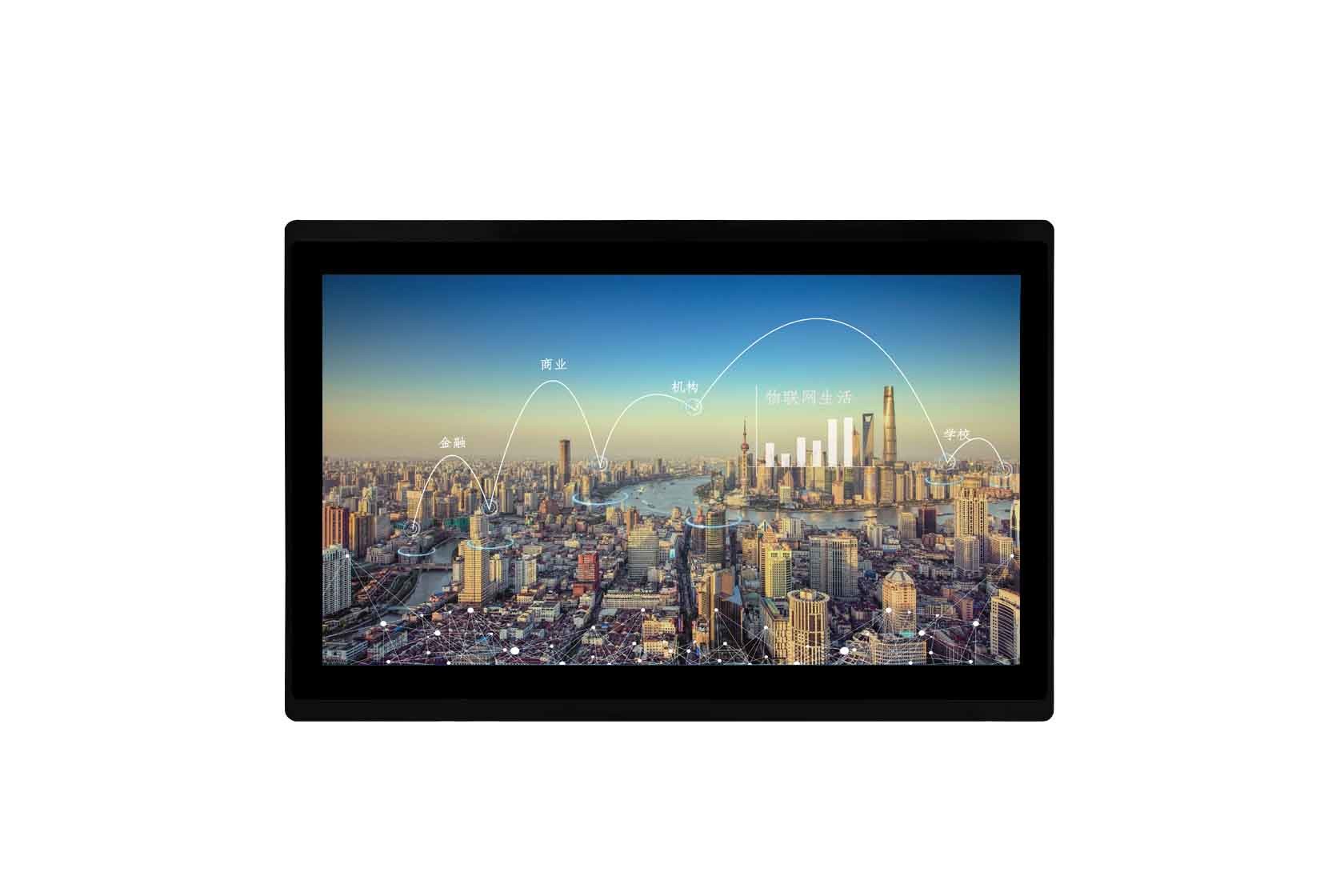

15.6 Inch Capacitive Touch Screen Embedded USB / WiFi / VGA / HD-Mi Industrial Panel All in One PC
Specifications:
CPU:RK3568 / Cortex A55 4 core main frequency at 2.0GHZ
RAM: DDR 2GB (Selectable 4Gb)
ROM: 32Gb(Selectable 64Gb)
Operating System: Android11.0/Ubuntu18.04/Linux 4.19
GPU: Mali-G52 1-Core-2EE
Luminance:300 cd/ m²(Select a 450cd / m² s)
Material quality:Plastic face frame, metal back cover
Product Performance:
| Performance | Detail | |
System | CPU processor | RK3568 / Cortex A55 4 core main frequency at 2.0GHZ |
| Operating System | Android11.0/Ubuntu18.04/Linux 4.19 | |
| Running memory | 2GB/4GB | |
| EMMC | 16GB/32GB/64GB/128GB | |
| GPU | Mali-G52 1-Core-2EE | |
Display | Size | 15.6 Inch |
| Resolving power | 1920 * 1080 | |
| Touch form | Capactive 10 touch | |
| Luminance | 300 cd/ m²(可选择450cd/m²) | |
| Angle of view | Full perspective | |
Material | Material quality | Plastic face frame, metal back cover |
| Way to stall | Flat, outer, embedded | |
| Dimension | 383 * 249 * 51mm | |
| IP protection grade | Industrial grade IP65 dustproof and water proof (operating face) | |
Power | Power interface | 3 PIN*2.54mm terminal DC24V provides power supply |
| Power input | 12-30V Recommended value of 24V | |
Environmental Characteristics | Working temperature | -10℃ ~ 60℃ |
| Storage temperature | -20℃ ~ 70℃ | |
| Operating humidity | 5-90 RH% | |
| Serial port | 2 RS232,2 RS232 / RS485 switch; 6-Road TTL serial port (reuse with serial port) | |
| Audio interface | 1-way MIC interface | |
| Gigabit Ethernet interface | 1 Route 10 / 100 / 1000 Mbps Ethernet port | |
| HDMI interface | 1-Way HDMI output, up to 3840 * 2160 resolution | |
| TF | 1-Route TF card interface | |
| SIM card | 1 Standard drawer-type interface with reserved eSIM interface | |
| RTC | 1 Built-in supercapacitor | |
| WIFI/BT | 2.4G WIFI / BT4.2 | |
| 4G interface | The GPS function 4G module should be replaced | |
| GPIO interface | Expand the miniPCIE 4G module | |
| GPIO | 4-way GPIO, IO direction is input and output configurable, and IO level is 5.0V； | |
| USB2.0 | 1 Vertical plug interface USB 2.0,4 horizontal plug interface USB 2.0,1 built-in row pin (USB 2.0) | |
| USB3.0 | 1 Vertical USB 3.0 (switch through dial switch) | |
|
