| Categories | Cube Ice Machine |
|---|---|
| Brand Name: | ICEMEDAL |
| Model Number: | CV2000 |
| Certification: | CV2000 |
| Place of Origin: | Hunan, China |
| MOQ: | Hunan, China |
| Price: | $11,000.00 - $12,800.00/sets |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30 Set/Sets per Month |
| Delivery Time: | ≤1 Set 35 Days |
| Packaging Details: | 1. Standard wooden case. 2. Completely ice machine include ice machine, cooling tower, water pump, water pipes and water pipe fittings. 3. All required components for install |

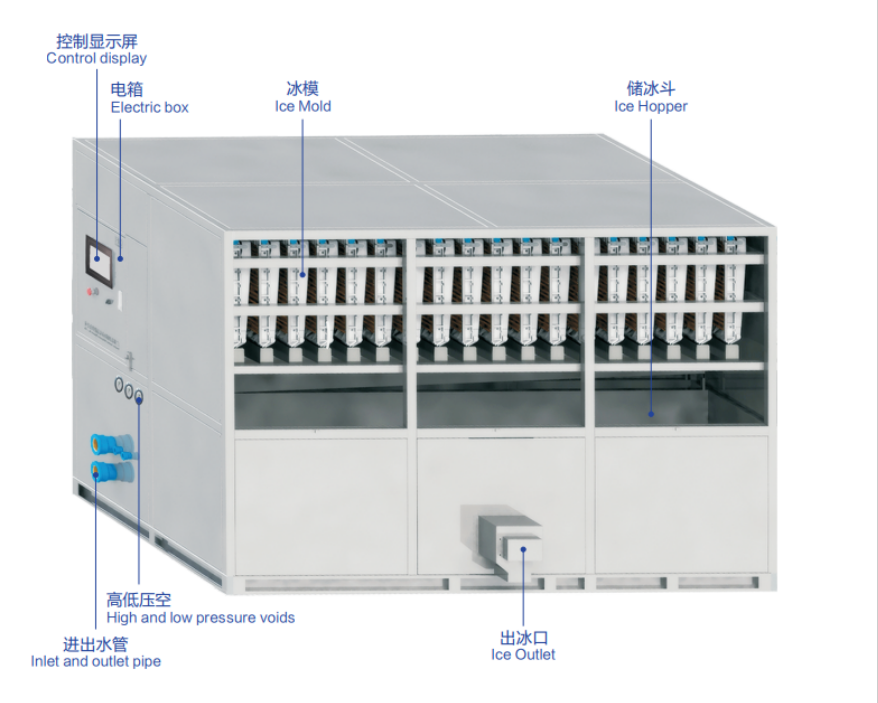

Icemedal IMC2 2 Tons Commercial Automatic Ice Cube Making Machine
Features
1. Ambient temperature adaptive system ensures consistent ice thickness.
2. The flat-wall heat transfer technology is unique in ice extraction design and has obtained a national patent.PATENT: ZL201420070472.X
3. The ice consumes 80 kw per ton of electricity.
4.The ice consumes 80 kw per ton of electricity.
Specifications
| Model | TONS/DAY Capacity | Compressor Power(KW) | Circulating water pump power(KW) | Cooling water pump power | Cooling fan power(KW) | Ice machine dimensions(MM) | Weight(KG) |
| IMC1 | 1 | 3 | 0.37 | 1.1 | 0.18 | 1800*1000*1700 | 800 |
| IMC2 | 2 | 6 | 0.37 | 1.5 | 0.37 | 1630*1600*1760 | 1000 |
| IMC3 | 3 | 9 | 0.37 | 1.5 | 0.55 | 1980*1630*1860 | 1200 |
| IMC5 | 5 | 18.25 | 0.55 | 2.2 | 1.5 | 2890*1780*1860 | 1600 |
| IMC8 | 8 | 30 | 1.1 | 4 | 1.5 | 4820*1780*2000 | 2500 |
| IMC10 | 10 | 37.5 | 1.1 | 4 | 1.5 | 5730*1780*2000 | 3000 |
| IMC15 | 15 | 56.25 | 1.5 | 5.5 | 2.2 | 8620*1780*2000 | 4500 |
| IMC20 | 20 | 75 | 2.2 | 7.5 | 3 | 11460*1780*2100 | 6000 |
Prpoduct Details
Nickle-plated copper ice mould 304 stainless steel ice hopper PVC pipe
Selection of ice model 304 stainless steel outlet 304 stainless steel water pump
wi with two specifications
Nickel-plated copper ice mould
NICKEL-A material with better resistance to accelerated oxidation at high temperatures. The melting point of nickel is about 2 times that of copper, which can protect the plated conductor effectively at high temperature.
304 stainless steel ice hopper
Possessing corrosion resistance, heat resistance, low temperature strength and mechanical properties. Stamping, bending and other hot processing, no heat treatment hardening phenomenon is suitable for food processing, storage and transportation.
PVC Pipe
Additive. With non-inflammable, high strength, resistance to climate change and excellent geometric stability. PVC has strong resistance to oxidant, reductant and strong acid.
|
