Pvc Window Profile Extrusion Line Wpc Door Board Profile Making Machine

Categories Board Extrusion Line
Brand Name: GWELL
Model Number: GWS90/GWS120/GWP75
Place of Origin: China
MOQ: 1 set
Price: USD150000-400000
Payment Terms: L/C, T/T
Supply Ability: 1 set per 90 days
Delivery Time: 5-8 days
Packaging Details: STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Product name: Provide installation and commissioning PEEK/CA board production line
Machine type: plastic board extrusion line
Brand: GWELL
Suitable material: CA/PEEK
Width: 600mm-1500mm
Thickness: 2-20mm
Screw design: Single screw/Parallel twin screw
Country of origin: China
Warranty: One year
After-sales service: installation and machine debug
Company Info.
China Gwell Co., Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Pvc Window Profile Extrusion Line Wpc Door Board Profile Making Machine

Provide installation and commissioning PEEK/CA board production line


CA cellulose acetate Sheet
Acetic acid is a kind of natural cellulose acetate, the main part of it is refined from pulp, and the plate because it is natural, is non-toxic harmless and has environmental protection performance. A lot of hair accessories are now composed of this kind of plate. Compared with the raw materials of other the same type accessories, toughness, gloss, texture of CA cellulose acetate Sheet have significantly improved. It is currently the high-end jewelry manufacturers preferred material. CA acetate plastic particles are suitable for the production of low, medium and high grade glasses, metal glasses foot cover, high-grade hair clips, watchband, screwdriver, screwdriver handle, etc. The texture of CA plastic material is very good, and the surface looks like that is emitting a natural luster, natural color, crystal clear, with a stylish texture. Product has good toughness, and is not easy to truncate, deformation.
PEEK plate is a kind of thermoplastic which has high temperature resistant and high glass transition temperature (143 ℃) and melting point (334 ℃). PEEK plate special plastic products has been successfully applied in automobile engine transmission parts such as wear-resisting support head gasket, motor, solenoid valve core sleeve, textile printing and dyeing machinery chain collar, dust cover, pump, vane, mouth ring, the gear, high temperature and high pressure seal valve, ball filler, compressor valve plates, piston ring, sealing ring , the guide ring, support ring, mushroom head, single screw air compressor star wheel locator, medical apparatus and instruments for bones, CMP wear ring, wafer, chip clip (tweezers), IC test plate, etc.

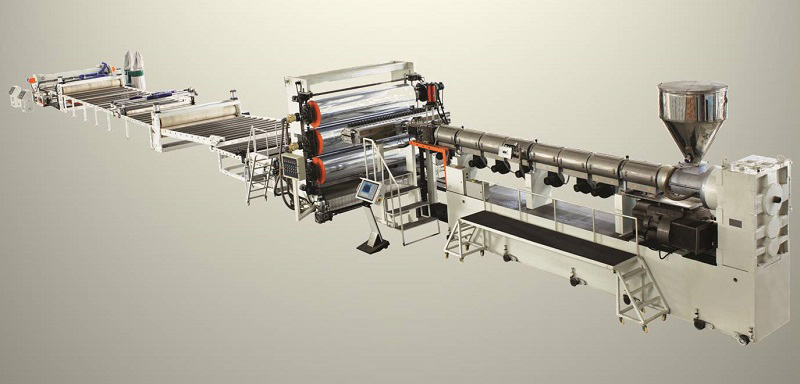

Gwell CA plate and PEEK plate production line can meet the production requirements of products with width of 1220mm and thickness of 2-20mm, the maximum output can reach 650KG/H, and the products have high surface smoothness. China has a large number of equipment ownership, and a large number of exports to Italy, the United States, India, Pakistan, Russia, the Middle East and other countries and regions.

Extruder SpecificationSingle screw extruder GWS90Single screw extruder GWS120Parallel twin screw extruder GWP75
Suitable MaterialCA, PEEKCA, PEEKCA, PEEK
Thickness of Product2mm-20mm2mm-20mm2mm-20mm
Width of Product600mm-1000mm1000mm-1500mm1200mm-1500mm
Output200kg/h-250kg/h350kg/h-400kg/h400kg/h-500kg/h

Gwell Machinery is a high-tech enterprise, committed to providing customers with plastic sheet, board, film and other extrusion lines. Gwell can provide turnkey projects, such as stone paper project, EVA solar film project, PP building formwork equipment,etc. Gwell has a strong technical equipment strength and key capacity, committed to high-end product development, international market development. “Realize customer value" is the company's long-term business philosophy.The manufacturing bases of the company are located in Taicang, Suzhou, which is close to the beautiful scenery of Shanghai, Yancheng Dafeng, the hometown of Red-crowned crane, and Nantong, the hometown of Education and longevity in China. It covers a total area about 150,000 square meters. It has an annual production capacity of more than 200 extrusion lines of various types of sheet and board.
