Lte Ble 20000mAh Mini Magnetic Global Tracker GNSS LBS RV'S Wifi Car Tracker

Categories Equipment GPS Tracker
Brand Name: Kingwo
Model Number: NT08EK
Certification: FCC CE ROHS
Place of Origin: CHINA
MOQ: 2 pcs
Price: Negotiable
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000 pcs per month
Delivery Time: 10-20 days
Packaging Details: 50 pcs per carton , total weight around 25kg
Battery: 10+ years
Standard: IP67 water resistance
G - Sensor: 260
Cellular: Global full frequency
Wifi: 5.0
Bluetooth: 5.1
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

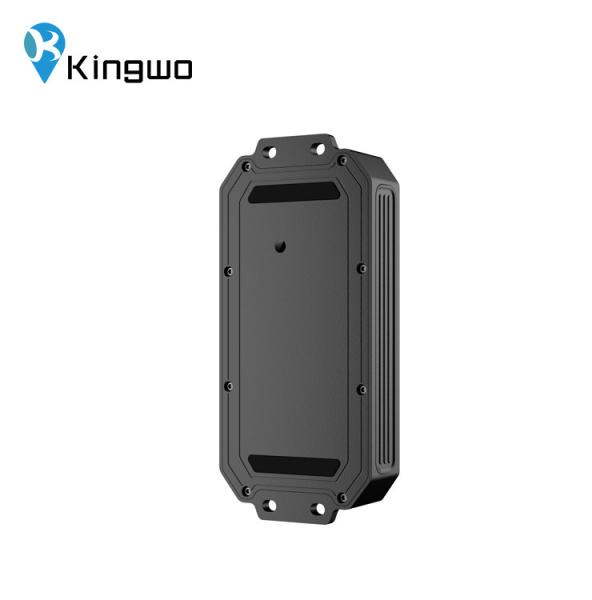

Lte Ble 20000mAh Mini Magnetic Global Tracker GNSS LBS RV'S Wifi Car Tracker

Lte Ble Low Power Consumption Tamper Alert GNSS LBS WIFI RV's Assets Tracker

NT08EK is a Lte Low Power Consumption Tamper Alert GNSS Locate Equpment Tracking Assets GPS , it has built in Wifi and Bluetooth for heavy machine and equipment tracking , this device has many sensors for event detect as well for example tamper alert , collision alert, vibration alert

Features:

1. Low power consumption

2. Support global bands

3. Multiple sensors for event tracking

4. Motion detect and vibration alarm

5. Strong magnets mount

6. Worldwide coverage

7. Magnets and screws

8. 20000mAh Ion long time replaceable battery


Specifications:


PhysicalDimension154X82X31mm(L*W*H)
Weight495±8g
CellularCommunication moduleQuectel BG95 M3
Frequency

Working frequency:

Cat M1: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26*/B27/B28/B66/B85

• Cat NB2: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26*/B28/B66/B71/B85

• EGPRS: 850/900/1800/1900MHz

protocol: Embedded TCP/IP stack

Sensitivity: -107dBm@850/900MHz

-106dBm@1800/1900MHz

Output power: Class 4 (2W)@850/900MHz

Class 1 (1W)@1800/1900MHz

GPRS data: GPRS Class 10, Mobile Station Class B

GPS

Channels: 50

Sensitivity: -147dBm

Position accuracy:5-10m

Accuracy: 5m CEP

Cold start: <27s

Hot start: <1s

ProcessorSTM
Motion sensorDA260
Wifi positionWifi 4.0
BluetoothBluetooth 5.0
PowerBattery

Disposable Lithium-ion battery and (3.6V,20000mAh)

and ultra-low discharge rate:less than 1%, store one year below 25℃

Power consumptionAverage working current <100mA; Power save current 107uA;
GSM antennaInternal High Gain
GPS antennaInternal High Gain
SIMMicrosim
Indicator2 status LEDs, Green: GPS, Red: Celluar(Inside enclosure)
Environmental ParameterWorking Temperature-20℃ ~ +70℃
Humidity5% ~ 95% (no fog)
Ingress Protection RatingIP67

More features:

• Hardware definition


EnclosureIP67 waterproof
MagnetsTo stick the device to metal surface
Power buttonInside the enclosure for hidden installation purpose, to turn on or turn off device
Light sensorTo detect removal alarm ,remove the sticker on the light sensor, when the device expose to light, it will trigger a removal alarm
Temperature sensorTo measure the environment temperature
Motion sensorTo detect the motion or static status of the device, detect motion alarm and collision alarm

Automatic APN adapt

The device has APN adapt features, however if APN is not in APN adapt list, APN configuration is required.


Early sleep mode

In order to reduce the waste of power, the device will not continue to work and directly enter the sleep state under those abnormal status:

The device does not recognize the SIM card;

Cellular module resets 6 times continuously;

Device resets 6 times continuously;

Failed to connect to the server (single IP 3 times, dual IP 2 times each);

No response from server after sending upload data three times in a row.

VCC voltage is lower than 2.9V;

After VCC is lower than 2.7V or devices resets 6 times continuously, if the upload interval is less than 60 minutes, the sleep time will be changed to 60 minutes in mandatory ;
