EX2300-48T Cisco Ethernet Switch 48 Port Gigabit Original Enterprise Network Switch

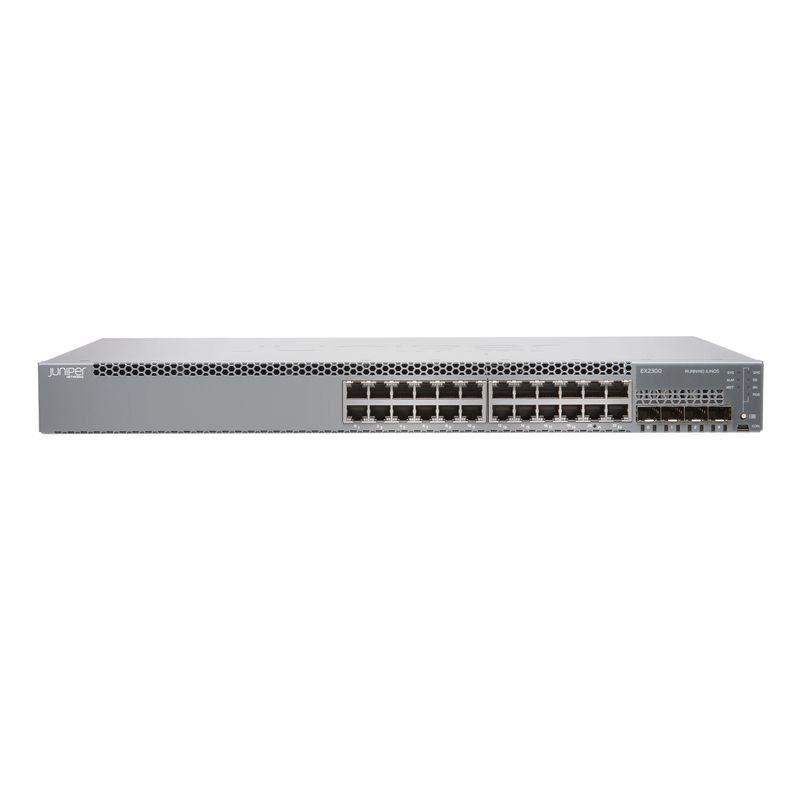

EX2300-24P is a Juniper EX2300 switch with 24-port 10/100/1000BASE-T PoE+, 4 x 1/10GbE SFP/SFP+ (optics sold separately). EX2300 Ethernet Switch delivers a compact, high-density, cost-effective solution for small network environments where space and power are at a premium. With a small, 1 U footprint, the EX2300 is perfect for access-layer deployments in micro branches, and converged network access in larger networks.
SKU | EX2300-24P |
Backplane speed | 80 Gbps |
Data rate | 128 Gbps |
Ports | 24-port 10/100/1000BASE-T PoE+, 4 x 1/10GbE SFP/SFP+ (optics sold separately) |
Dimensions (W x H x D) | 17.4 x 1.75 x 10.2 in (44.19 x 4.45 x 25.9 cm) 1 rack unit |
EX2300-24P Specification | |
Form factor | Fixed platform Virtual Chassis configuration consisting of up to four switches Junos Fusion Enterprise Satellite device |
Ports | 24-port 10/100/1000BASE-T PoE+, 4 x 1/10GbE SFP/SFP+ (optics sold separately) |
Dimensions (W x H x D) | 17.4 x 1.75 x 10.2 in (44.19 x 4.45 x 25.9 cm) 1 rack unit |
Backplane speed | 80 Gbps |
Data rate | 128 Gbps |
Throughput | 95 Mpps (wire speed) |
10/100/1000BASE-T port densities | N/A |
10GBASE-X port densities | N/A |
40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities | N/A |
100GBASE C form-factor pluggable transceiver (CFP) port densities | N/A |
Resiliency | Integrated power supply and fans |
Operating system | Junos OS |
Traffic monitoring | sFlow |
Quality-of-service (QoS) queues/port | 8 |
Jumbo frames | 9216 bytes |
IPv4 unicast / multicast routes | 4096 / 2048 |
IPv6 unicast / multicast routes | 2048 / 1024 |
Number of VLANs | 4093 |
![]() |
