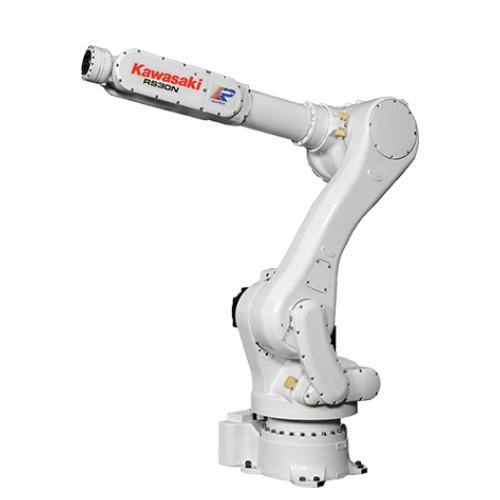

RS030N High Speed KAWASAKI Robot Arm 6 Axis Palletising Robot

Kawasaki 6 Assige Robot Arm RS030N, High-Speed Verpakking Robot

Advantage:

ULTRA HIGH-SPEED OPERATION
The lightweight arm along with high-output high-revolution motors provide industry leading acceleration and high-speed operation. The acceleration rate automatically adjusts to suit the payload and robot posture to deliver optimum performance and the shortest cycle times.

WIDE WORK RANGE
In addition to extending the robot's maximum reach, the rotation range of each axis has also been increased. The extended motion range translates to a larger usable work area with minimal dead-space and greater flexibility.

ENVIRONMENTAL PROTECTION
The R Series incorporates a double-seal construction on all axes and the electrical connections are water-resistant, offering an IP67 classification for the wrist and IP65 for the remaining axes. If a wash-down arm is required, the entire robot can be provided as IP67.

HIGH TORQUE
High-output motors, combined with a rigid arm construction, allow for superior wrist torque and load capacity.

INTEGRATED FEATURES
Built-in pneumatic lines and internal wiring for sensors and solenoid valves are standard. Mounting pads and taps are provided to allow easy installation of additional cabling, tubing or equipment.
SPACE SAVING
The slim arm design requires very little floor space. Multiple robots can be installed in "high-density" applications without impeding performance.

PROGRAMMING FLEXIBILITY
R Series Robots can be programmed in two ways, via the robot teach pendant or a computer, and using one of the two Kawasaki's programming methodologies, Block Step or AS Language. The Block Step programming method eliminates time consuming program teaching with auto-path generating software. The powerful AS Language provides ultimate flexibility via any word processor text file and enables the programmer to create advanced logic, manipulate program locations, integrate peripheral components and control the application process.

Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company.

Application:

dispensing, finishing, material handling, pick and place, assembly, palletizing, 3d printing, and remote tcp.

FAQ:

Q.How Long will You Need before Delivery?

A:We have many common models in stock, so that wecan deliver the goods very soon(less than 3 days).
