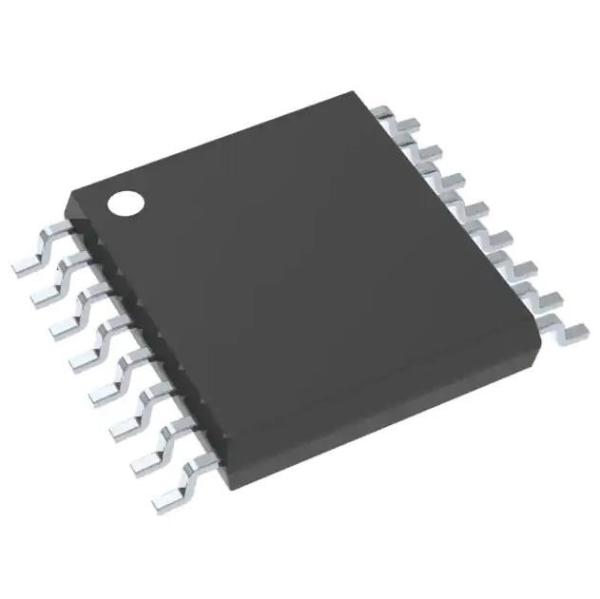

SN75C3221PWR 1/1 Wireless RF Module Transceiver Full RS232 16-TSSOP

Categories Electronic IC Chips
Brand Name: Original
Model Number: SN75C3221PWR
Certification: Original
Place of Origin: Original
MOQ: 1
Price: negotiation
Payment Terms: T/T
Supply Ability: 100,000
Delivery Time: 1-3working days
Packaging Details: carton box
Part no: SN75C3221PWR
Number of Drivers/Receivers: 1/1
Receiver Hysteresis: 500 mV
Data Rate: 1Mbps
Voltage - Supply: 3V ~ 5.5V
Operating Temperature: 0°C ~ 70°C
Supplier Device Package: 16-TSSOP
Type: Transceiver
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

SN75C3221PWR 1/1 Wireless RF Module Transceiver Full RS232 16-TSSOP

SN75C3221PWR 1/1 Integrated Circuit Chip Transceiver Full RS232 16-TSSOP


1/1 Transceiver Full RS232 16-TSSOP

The SN65C3221 and SN75C3221 consist of one line driver, one line receiver, and a dual chargepump circuit with ±15-kV ESD protection pin to
pin (serial-port connection pins, including GND). These devices providethe electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. These devices operate at data signaling rates up to 1 Mbit/s and a driver output slew rate of 24 V/μs to 150 V/μs.

Features of SN75C3221PWR


• Operate with 3-V to 5.5-V VCC supply
• Operate up to 1 Mbit/s
• Low standby current : 1 μA typical
• External capacitors : 4 x 0.1 μF
• Accepts 5-V logic input with 3.3-V supply
• RS-232 bus-pin ESD protection exceeds ±15 kV using human-body model (HBM)
• Auto-powerdown feature automatically disables drivers for power savings


Specifications of SN75C3221PWR


ProductSN75C3221PWR
PackageTape & Reel
Mfr
Texas Instruments
Series
-
Product Status
Active
Type
Transceiver
Protocol
RS232
Number of Drivers/Receivers
1/1
Duplex
Full
Receiver Hysteresis
500 mV
Data Rate
1Mbps
Voltage - Supply
3V ~ 5.5V
Operating Temperature
0°C ~ 70°C
Mounting Type
Surface Mount
Package / Case
16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package
16-TSSOP
Base Product Number
75C3221

range (−10 ̊

Environmental & Export Classifications


wh avck-

ATTRIBUTEDESCRIPTION
RoHS StatusROHS3 Compliant
Moisture Sensitivity Level (MSL)1 (Unlimited)
REACH StatusREACH Unaffected
ECCNEAR99
HTSUS8542.39.0001

APPLICATIONS of SN75C3221PWR


• Industrial PCs
• Wired networking
• Data center and enterprise computing
• Battery-powered systems
• PDAs
• Notebooks
• Laptops
• Palmtop PCs
• Hand-held equipment
