| Categories | Vulcanizing Press Machine |
|---|---|
| Brand Name: | ZL |
| Model Number: | ZL-3022 |
| Certification: | CE,ISO |
| Place of Origin: | CHINA |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40 sets / month |
| Delivery Time: | 5-8 work days |
| Packaging Details: | 20T Double Layer Hot Press Hydraulic Machine is packaged within wooden case. |
| Product name: | 20T Double Layer Vulcanizing Hot Press Hydraulic Machine With Water Cooling |
| Temp. range: | Room temp. ～300℃ |
| Timer: | LED display，time range 0.1S～99min～9.9hr |
| Heating type: | Electrical heating module |
| Pressure surface: | Mirror chrome plated |
| Oil cylinder stroke: | Max 200mm |

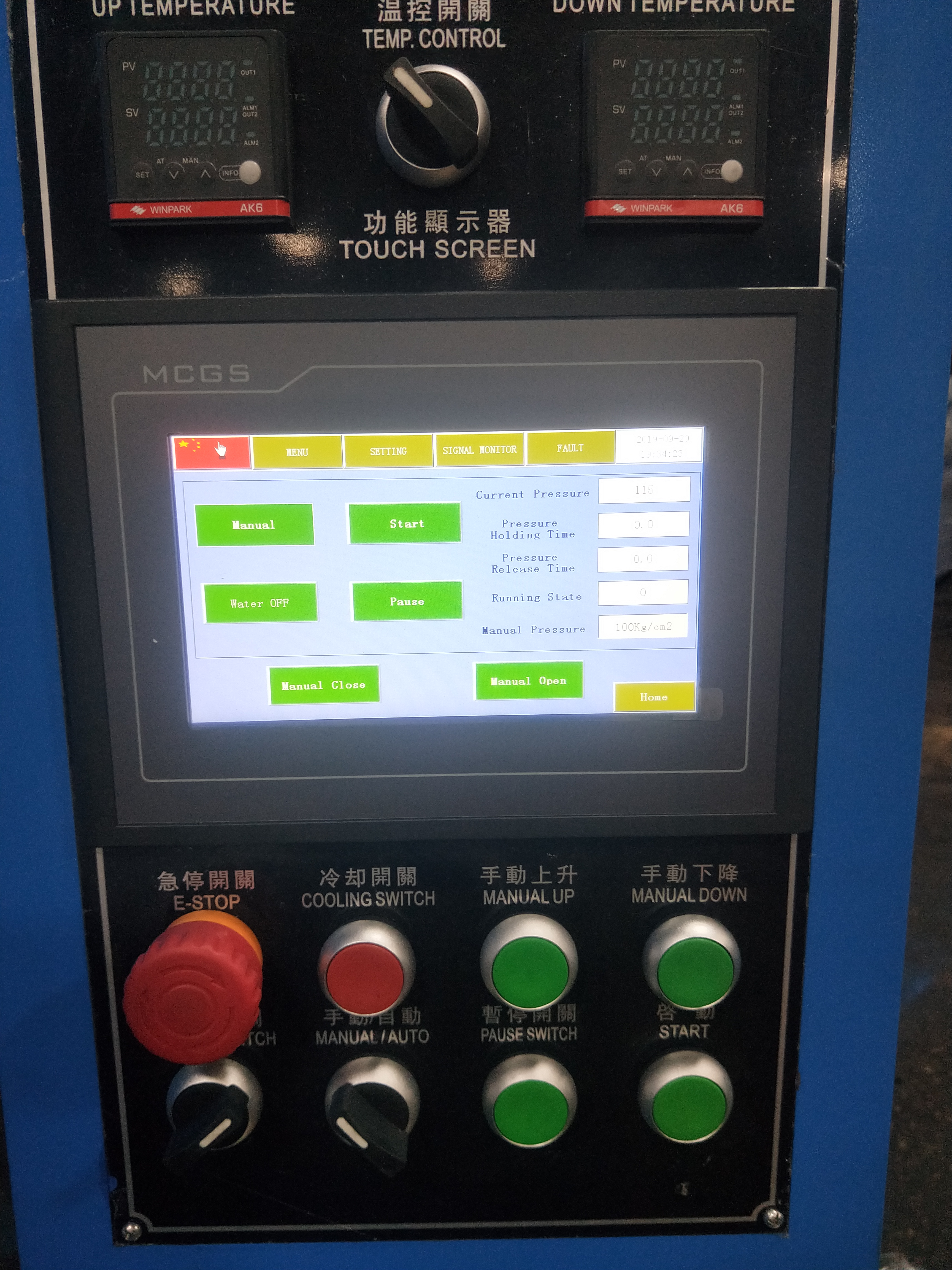

| Temp. controller: | PLC touch screen, the value indicate output |
| Key words: | Hot Press Hydraulic |
| Company Info. |
| Dongguan Zhongli Instrument Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
New Revision 20T Double Layer Hot Press Hydraulic Machine With Water Cooling
Instruction:
A new generation of ZL-3022 with beautiful new revision.The
material is placed in the casting mold and clamped between the
electric-heating flat plates to apply pressure and temperature,make
the material shaping,testing and serving as the basis for the
ingredient of mass production.
Technical Parameters:
| Capacity | 10~50ton ( Option ) |
| Temp. Range | Room temp. ～300℃ |
| Temp. Controller | PLC touch screen, the value indicate output |
| Timer | LED display,time range 0.1S～99min～9.9hr |
| Heating type | Electrical Heating module |
| Hot pressure plate | 300×300mm ( can be customized) |
| Cold pressure plate | 300×300mm ( can be customized) |
| Distance of pressure plate | 100mm |
| Pressure material | SKD chromium-molybdenum alloy |
| Pressure surface | Mirror chrome plated |
| Cooling temperature scope | Room temp. ～＋5℃ |
| Cooling type | Tap water cooling/compressor cooling water(optional) |
| Oil pressure system | The proportion hydraulic pressure current capacity loop circuit control |
| system, the GPY oil pump driver high performance electroencephalographic | |
| matching high accuracy non resistance piston of oil cylinder carry | |
| out constant speed rate control mode, can p reelection one, two | |
| times pressure and time. | |
| Oil cylinder stroke | Max 200mm |
| Oil cylinder speed | 11mm/s |
| Pressure gauge | 0～350kg/sq.cm |
| power | 10.6HP |
| Dimension W×D×H | 1000×500×1500 mm |
| Power supply | 3∮,AC380V,20A |
| Weight | About 658kg |
|
