Fully Automatic Dental Floss Injection Moulding Machine Vertical Mould Clamping

Categories Rubber Testing Machine
Brand Name: ZL
Model Number: ZL-3059
Certification: CE,ISO
Place of Origin: China
MOQ: 1 set
Price: Negotiable
Payment Terms: L/C,T/T,Western Union
Supply Ability: 60 Sets
Delivery Time: 5-8 work days
Packaging Details: Fully Automatic Dental Floss Injection Moulding Machine Vertical Mould Clamping is packaged within wooden case.
Product name: Fully Automatic Dental Floss Injection Moulding Machine Vertical Mould Clamping
Max. Hydraulic Pressure: 140Kg/cm²(mPa)
Injection pressure: 2177 Kg/cm²
Screw stroke: 160mm
Opening Stroke: 250mm
Theoretical shot volume: 222Cm³
Oil Reservoir Capacity: 250L
Key words: Dental Floss
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Fully Automatic Dental Floss Injection Moulding Machine Vertical Mould Clamping

Fully Automatic Dental Floss Injection Moulding Machine
Vertical Mould Clamping System for High-Efficiency Dental Floss Production
Key Features
  • Vertical mould clamping and vertical injection moulding system
  • 4-section temperature control for precise thermal management
  • Stepless adjustments for injection pressure, injection speed, and back pressure
  • Reliable automation with premium brand cylinders (Airtac and SMC)
  • Automatic dental line pulling, floss cutting, and runner separation
  • Sucker system for neat placement of dental floss on collecting sticks
  • Controller screen alerts when collected floss reaches set quantity
  • Two production solutions: 16 floss per cycle or up to 60 floss per cycle
Technical Parameters
TypeModelUnitZL-550-PZL-850-P
Injection SystemScrew diametermm30 | 3636 | 42
Injection pressureKg/cm²2177 | 15132177 | 1600
Theoretical shot volumeCm³98 | 142163 | 222
Max. injection weight (PS)G/oz87/3.0 | 160/5.6145/5.2 | 198/7.2
Injection rateCm³/sec68 | 97127 | 175
Screw strokemm140160
Max. screw speedRPM0-2100-180
Clamping SystemClamping ForceTons5585
Opening ForceTons7.28
Platen Sizemm690*450840*640
Min. Mold Thicknessmm180/240250/310
Opening Strokemm200250
Max. Open Daylightmm380/440500/560
Max. die sizemm450*440500*480
Oil Power SystemMax. Hydraulic PressureKg/cm²(mPa)140140
Pump OutputL/min5759
Oil Reservoir CapacityL166250
Cooling Water Consumption/hr600-800800-1000
Motor PowerKW7.511
Electrothermal CapacityKW2.86.7
OthersMachine WeightTons25003500
Machine Dimensions L*W*HM2.9*2.35*3.63.2*2.55*4.1
Related Machinery

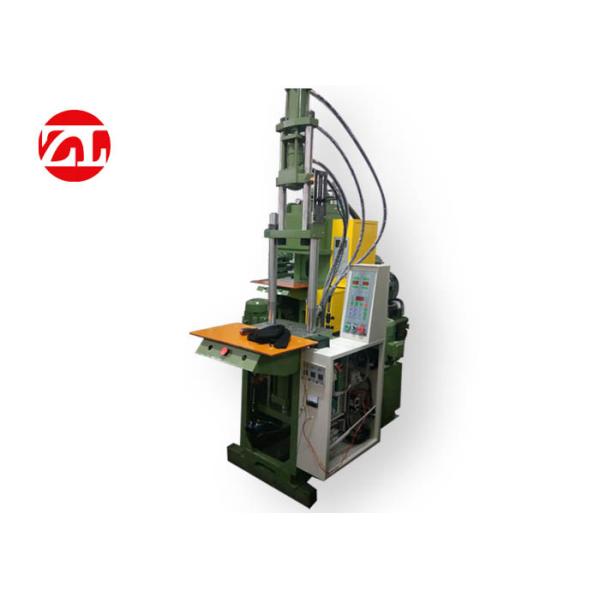

Cheap Fully Automatic Dental Floss Injection Moulding Machine Vertical Mould Clamping for sale
