Electric Hydraulic Automatic Hot Mounting Press with Touch Screen ZXQ-7

Electric Hydraulic Automatic Hot Mounting Press with Touch Screen ZXQ-7

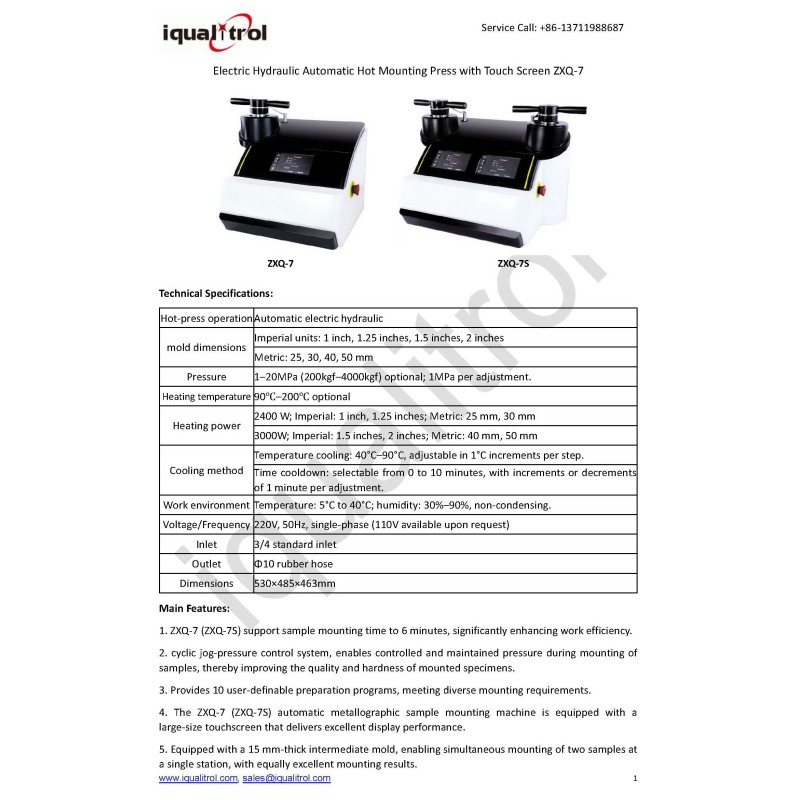

Download Technical Data: iqualitrol Mounting Press ZXQ-7

Technical Specifications:

Main Features:

1. ZXQ-7 (ZXQ-7S) integrated heating and cooling design reduces sample mounting time to just 6 minutes, significantly enhancing work efficiency.

2. Research was conducted on the development of a cyclic jog-pressure control system, associated methods, and sample preparation techniques, enabling controlled and maintained pressure during mounting of samples, thereby improving the quality and hardness of mounted specimens.

3. Pressure-retention circuit has also been implemented, which effectively expels residual air from the material, resulting in a uniformly textured inlaid specimen and preventing bubble formation caused by trapped air, thereby ensuring a smooth specimen surface.

4. The programmable control system of ZXQ-7 (ZXQ-7S) provides 10 user-definable preparation programs, meeting diverse mounting requirements.

5. This machine dispels the conventional image of bulky, clunky inlay equipment, featuring a brand-new ABS housing with a fresh, refined color scheme and sleek design that delivers a comfortable user experience.

6. The ZXQ-7 (ZXQ-7S) automatic metallographic sample mounting machine is equipped with a 15 mm-thick intermediate mold, enabling simultaneous mounting of two samples at a single station, with equally excellent mounting results.

7. During the actual sample preparation process, different pressures are required to accommodate various thermosetting mounting compounds. The ZXQ-7 (ZXQ-7S) can precisely control the pressure according to varying requirements, with an adjustment range of 1 to 20 MPa.

8. The ZXQ-7 (ZXQ-7S) automatic metallographic sample mounting machine is equipped with a large-size touchscreen that delivers excellent display performance.
