Waste Paper Shredder Machine Industrial Paper Shredder Waste Plastisc Machine Shredder

Waste Paper Shredder Machine Industrial Paper Shredder Waste Plastisc Machine Shredder Plastic Bottle Recycling, Plastics Shredder Balde Machine, Double Shaft Shredder Crusher

GL Series Twin-Shaft Shredder

( plastic, paper, fiber, rubber, organic waste)

The GL series shredders have been designed for a wide array of applications and industries,suitable for shredding solid material such as E-waste, metal, wood, plastic, scrap tires,packaging barrel, pallets, etc. Depending on input material and the following process theshredded material can be used directly or go into the next step of size reduction. lt is widelyused in industry waste recycling, medical recycling, electronic recycling, pallet recycling,municipal solid waste recycling, Bagplastic.com plastic recycling, tire recycling, papermaking industry and etc.

● WORKING PRINCIPLE---------------------------------------------------------The twin-shaft shredder mainly rotates relative to each other through two knife rollers. The cutting edge is formed between the cutting edge and the cutting edge. At the same time, the knife hook tears the material, so as to achieve the effect of crushing the knife. Bagplastic.com Its structure is mainly composed of shredding blade group, bearing box, box support, feeding system and power system. The discharge size can be adjusted according to the user's requirements. In the application process of double shaft crusher, the knife speed is low, which ensures no harm to safety, low noise, low energy consumption and strong usefulness


PRODUCT PARAMETERS(partially)-----------------------------------------------------------------------

Model number	GL600	GL 800	GL 1000	GL 1200	GL 1300	GL 1600
Main motor power	11+11	18.5+18.5	22+22	30+30	37+37	55+55
Rotor-blade	20	16	20	24	26	32
Whight /kg	2200	2400	5400	7000	12000	14100
Rotor diameter(mm)	340	340	340	340	400	400
Main shaft speed	15 r/min	14 r/min	15r/min	15 r/min	14 r/min	11 r/min

PRODUCT DETAILS--------------------------------------------------------------------------------

Single shaft shredder: mainly for die head extrusion block shredding,HDPE pipe shredding,profile shredding,film shredding    Double shaft shredder: mainly for tires shredding,film shredding,profile shredding,barrel shreding,tray shredding
Double single shaft shredder: mainly for film shredding with big capacity
Four shaft shredder: mainly for tires shredding,tray shredding

Model	Feeding mouth size	Motor power	Rotate blade	Fix blade
WT600	630*800mm	30kw	39	2
WT800	830*900mm	45kw	57	2
WT1000	1030*1200mm	55kw	63	2
WT1200	1230*1400mm	75kw	75	2

Blades
The blades are divided into fixed and dynamic knives, Bagplastic.com which can be removed and replaced.
According to different materials, the thickness and hooks of blades can be customized.

The GL series double-shaft shredder can be generally used to shred more difficult to crush plastic, rubber, fiber, paper, wood, electrical parts, cables and other solid materials, such as: water mouth material, rubber head, Bagplastic.com PET bottles, cardboard, circuit boards, wood, plastic barrels, etc..Clients can choose the appropriate model according to the size of the material and the processing capacity. If users need to crush especially hard materials, they need to explain the situation.

●ATTENTION-------------------------------------------------------------------------

Install the blade correctly

If the blade is installed too loosely or too tightly, the blade of the shredder can not crush materials normally, which will aggravate the damage to the blade in the long term.

Reduce crushing of wetter materials Bagplastic.com When too wet materials are crushed, due to excessive extrusion, it is easy to squeeze out the water in the materials and stick to the blade of the shredder, which is easy to rust the blade.

Blade screw tightening If the screw of the machine is too loose, the blade will slip during crushing, and the crushing effect cannot be achieved.

Choose different shredders according to different materials Do not put too hard materials in the shredding chamber of the shredder. Too hard materials are easy to wear the blade. Often tear some hard materials, which will directly damage the blade of the shredder and can not crush other materials.

Detail Description

Item/Model	GL400	GL600	GL800	GL1000	GL1200
Rotor diameter(mm)	340	340	340	340	340
Main shaft speed(r/min)	17	15	15	15	15
Rotor-blade	16	20	16	20	24
Thickness of blades(mm)	25	30	40	50	50
Motor power(kw)	12	11*2	18.5*2	22*2	30*2
Weight(kg)	1400	2200	2400	5400	7000

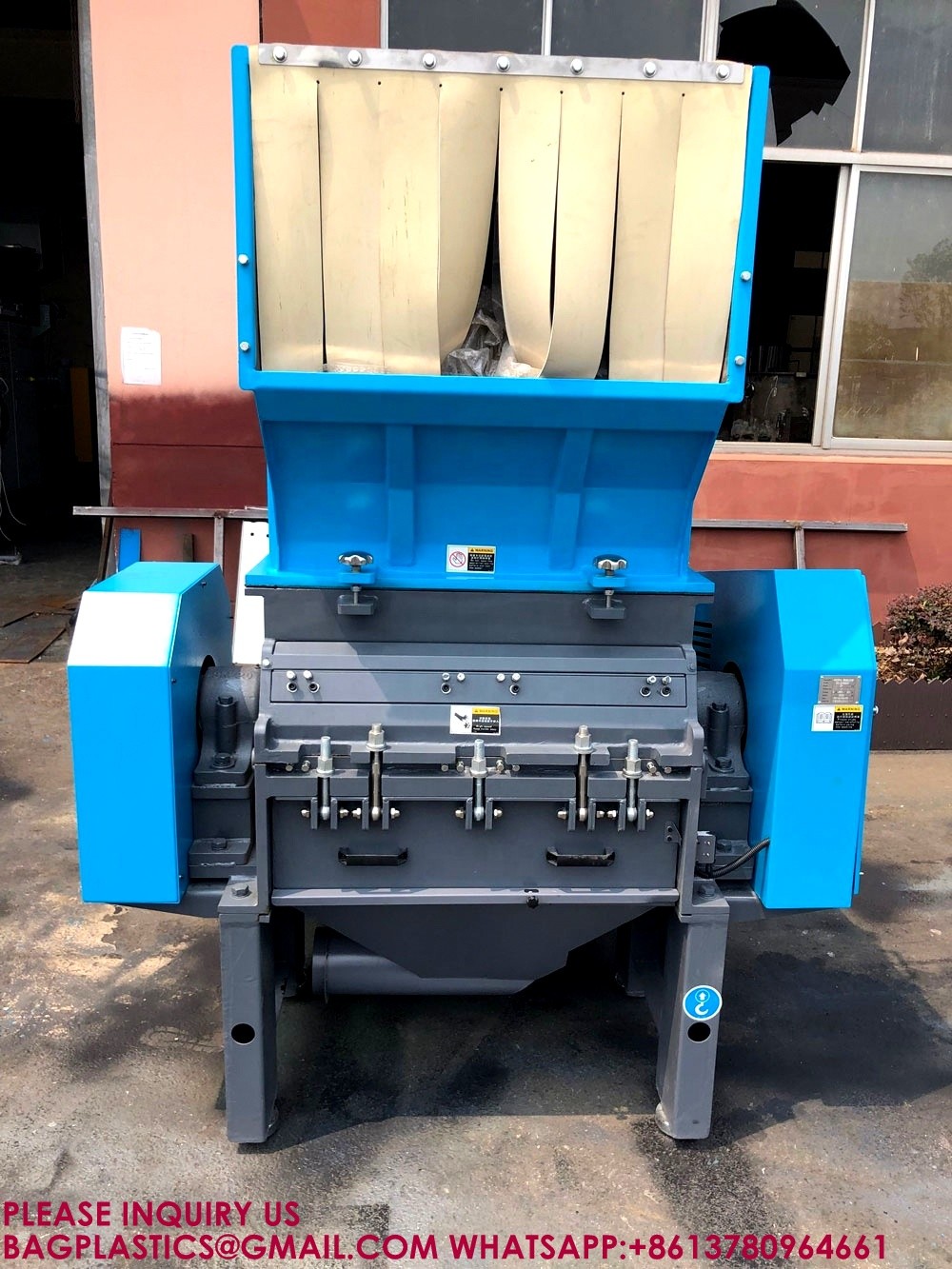

PLASTICS GRINDER CRUSHER

Plastic crusher is specialized in crushing various kinds of plastic materials into different sizes of granules. Crushed plastics can be recycled for the reproduction of plastic products. This machine can help reduce Bagplastic.com the volume of plastic waste, greatly save costs and resources.

Product Description

waste plastic pipe/profile and others product recycled crusher machine

PLastic recycling crusher machine/rigid plastic grinder machine/ plastic bottle grinding /shredder machine /plastic shredding
crushing recycled PLEASE INQUIRY US
BAGPLASTICS@GMAIL.COM WHATSAPP:+8613780964661
1) Suitable for recycle of all kinds of plastic bottles, Bagplastic.com containers, pellicle, plastics sheets,spurs from injection molding machines and extrustion parts.

2) Strong structure, easy to operate, low electricity consumption & durable.
3) Uses high quality steel material especially for making knives of the crushers, the machine stands long use under severe and continuous service conditions.
4) The blades can be grinded for many times and can be used repeatedly.
5) Blades base is made of high quality steel, hard to be broken and damaged; Blades base structure is stable and durable.

PC series plastic crusher absorbs domestic and foreign advanced technology; it has the rational design and repeated tests and keeps improving. PLEASE INQUIRY US
BAGPLASTICS@GMAIL.COM WHATSAPP:+8613780964661
The machine has some features such as light in weight, low energy consumption, good quality, long life and easy to clean. PC series plastic crusher is suitable for smashing polystyrene, polypropylene, nylon, defective plastic products of injecting and extruding machine. If you change the suitable sieve and adjust the space among the blades, it can also be used in smashing the waste of various plastic such as PVC/PP/PE films, PET bottle , Bagplastic.com plastic sheet , ABS, EVA and so on.

This machine is suitable for crush many kind of plastic products like plastic blocks, plastic sheet, plastic injection waste materials and plastic film
Here are some advantages of this machine.
The first one is Low energy consumption, easy to install, operate and maintain
The second one is Change the different diameter sieve, can get different size of final scrap.
The third one is Machine automatic stop when the cutting blades are exposed.
The fourth on is there is a dust curtain fitted at the feed hopper.
PLEASE INQUIRY US
BAGPLASTICS@GMAIL.COM WHATSAPP:+8613780964661

MODEL	MOTOR POWER	FIXED BLADE	ROTARY BLADE	CAPACITY
PC400	7.5	2	6/12	80-250kg/h
PC500	11/15	2	6/15	120-320 kg/h
PC600	18.5/22	2	6/18	180-400 kg/h
PC800	37/55	2/4	6/24	400-800 kg/h
PC1000	45/55	4	6/30	800-1200 kg/h
PC1200	75/110	4	6/34	800-1500 kg/h

Machine details

1	Model	PC1000
2	Input size for plastic crusher	1000x580mm
3	Rotation diameter	580mm
4	Motor power	45kw
5	Qty of rotary blade	10pcs
6	Qty of fixed blade	4pcs
7	Material of blade	SKD11 (good material, with long life)
8	Screen net for plastic crusher	10mm
9	Dimension of the main	2000x1480x2300
10	Weight	2200kg

FAQ

Why choose us?1.Low cost All the machine ,we make by ourselves to reduce the cost for our customers.
2.Genuine product with excellent quality We choose our material very strict. All the material come to our factory must pass the quality test Substandard goods are returned to the supplier.
3. Engerneers available to serve oversea PLEASE INQUIRY US
  BAGPLASTICS@GMAIL.COM WHATSAPP:+8613780964661
4.Quick delivery The company provide just in time delivery with its streamlined supply chain.
5.Cost saving We take strong attention to every detail in the manufacturing process. The quality control in our factory is very strict. All defective semi-manufactures must be treated again or rejected. All the machine must be checked before delivering to our customer. What we want to do is to give our customer a good quality product with stable and long time working life.

PLEASE INQUIRY US
BAGPLASTICS@GMAIL.COM WHATSAPP:+8613780964661
