| Categories | XSS High Pressure Precision Flow Control Valve |
|---|---|
| Name: | Precision Flow Control Valve |
| Working Medium: | Air/oil |
| Max Pressure: | 0.4Mpa |
| Pressure Range: | 0~0.35Mpa |
| Temperature Range: | 0~70℃ |
| Port Size: | G1/4″ |
| Net Weight: | 0.5kg/pcs |
| Voltage: | DC12V,DC24V,AC110V,AV220V |
| Life: | over 10 million times |
| Design Pressure: | 100 KGF/CM2 |
| Valve Body: | special mirror processing and hard treatment |
| FOB Price: | negotiation |
| Min.Order Quantity: | 10PCS |
| Supply Ability: | 10000 Piece/Pieces per Month |
| Port: | NingBo Or ShangHai |
| Payment Terms: | T/T,L/C,PAYPAL |
| Company Info. |
| PRIUS PNEUMATIC COMPANY |
| View Contact Details |
| Product List |
| Name: | Precision Flow Control Valve | Working Medium: | Air/oil |
|---|---|---|---|
| Max Pressure: | 0.4Mpa | Pressure Range: | 0~0.35Mpa |
| Temperature Range: | 0~70℃ | Port Size: | G1/4″ |
| Net Weight: | 0.5kg/pcs | Voltage: | DC12V,DC24V,AC110V,AV220V |

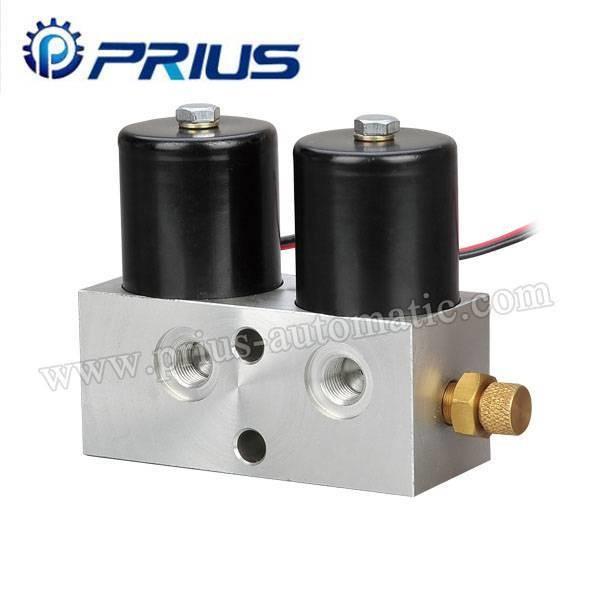

High Pressure Air Flow Control Valve DC12V / DC24V Secondary Shunt Double Coils
Specifiction
1. Life over 10 million times
2. The design pressure of 100 KGF/CM2
3. The valve body by the special mirror processing and hard treatment
| Model | XSS-06 |
| Motion Pattern | Direct Drive |
| Working Medium | Air, Oil |
| Working-pressure Range | 1-50Kgf/c㎡ |
| Ensured Pressure Resistance | 60Kgf/c㎡ |
| Operating Temp. | 0~ 70℃ |
| Operating Speed | 5 times/s |
| Port Size | G1/8″ |
| Weight | 0.5kg |
| Package Volume | 40X80X106mm |
| NO. | Designation | Material | Amount | NO. | Designation | Material | Amount | |
| 1 | M5 Screw with washer | A3 | 2 | 7 | Adjustable Needle Nut | HPB59 | 1 | |
| 2 | Coil | 2 | 8 | Valve Body | 6061 | 1 | ||
| 3 | Barrel | 304 | 2 | 9 | O-ring | NBR | 1 | |
| 4 | O-ring | NBR | 2 | 10 | Brass | HPB59 | 1 | |
| 5 | O-ring | NBR | 1 | 11 | Adjustable cone | PTFE | 1 | |
| 6 | Adjustable Needle | HPB59 | 1 | 12 | Spring | Piano wire | 1 |
Overall Dimension
|
