KEYILASER CNC Fiber Laser Welder 2000W Platform Automatic Laser Welding Machine 4-axis 6-axis Laser Spot Welding Machine

Categories Automatic Laser Welding Machine
Brand Name: Keyi
Model Number: KY-W-AW-2000
Certification: CE
Place of Origin: China
MOQ: 1 set
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 100 sets/month
Delivery Time: 15 working days
Packaging Details: standard wooden package
Welding material: Aluminum, steel and others
Laser Wavelength: 1080nm±5nm
Laser Source: Raycus or JPT
Welding head: Wobble type
XYZ: 400mm*300mm*400mm or customized
Machine Type: Enclosed
Power: 1500W/2000W/3000W
Warranty: 1 Year
Dimensions: 1300*710*1960mm
Beam quality: M2<1.1
Fiber length: 10m (15m for 3000w)
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

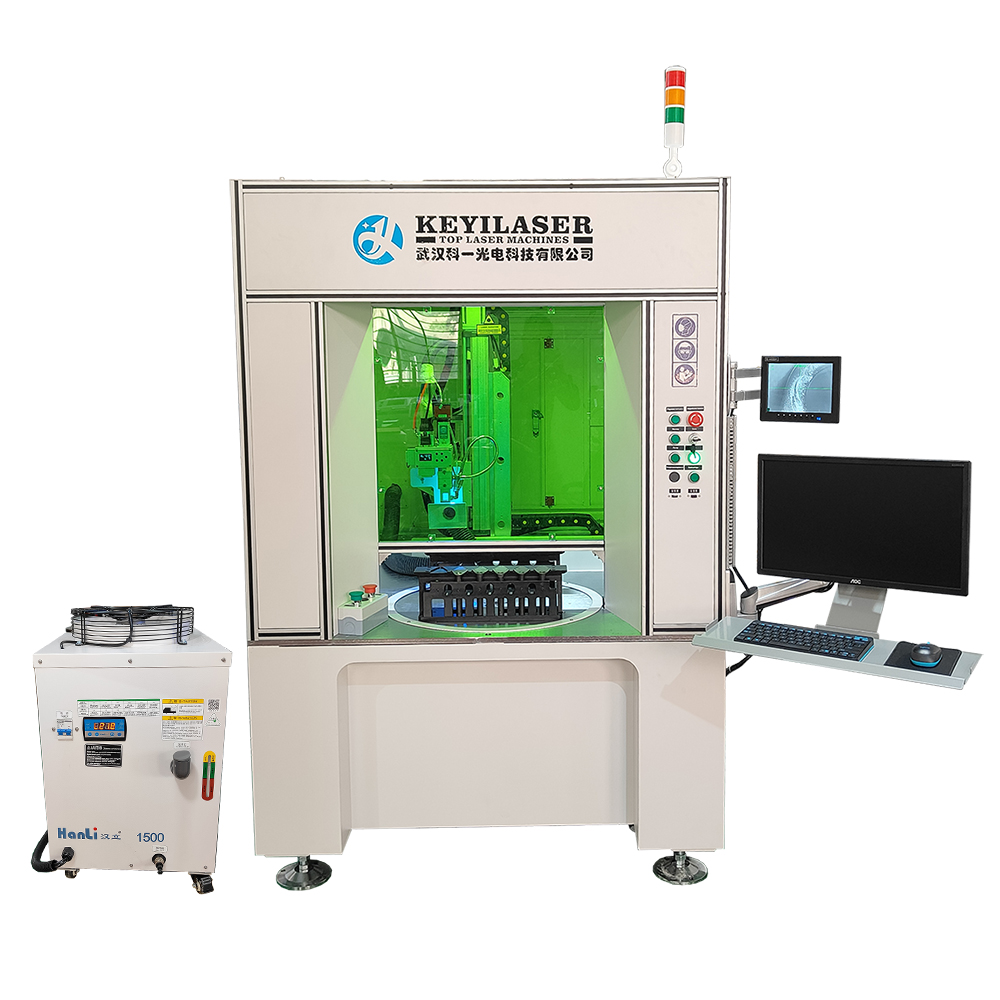

KEYILASER CNC Fiber Laser Welder 2000W Platform Automatic Laser Welding Machine 4-axis 6-axis Laser Spot Welding Machine

KEYILASER CNC Fiber Laser Welder Platform Laser Automatic Welding Machine 4-axis, 6-axis Laser Spot Welding Machine



Product Introduction:


For individuals who want their welding procedures to be as precise and effective as possible, the Multi-station Closed Automatic Laser Welding Machine is the ideal choice. This machine can seamlessly and quickly weld a variety of materials together thanks to its superior technology and several stations.

The automated features make it simple to use and operate, and its closed design guarantees the operator's safety and protection. Invest in this cutting-edge equipment to improve the caliber of your welding projects.
Automatic laser welding machine

Features:

1. The high automation and simple welding process are two characteristics of the automatic laser welding equipment.
2. Clean and environmentally friendly processing standards can be attained through the employment of the non-contact processing method.
3. The advantages of this kind of welding machine include high laser power, a high weld aspect ratio, a small heat-affected area, low deformation, and quick welding speed.
4. Easy to use, centralized button operation, LCD screen display, and humanized design.

Product Parameters:

ModelKY-W-AW2000
Power1000W/15000W/2000W/3000W
Operational ModeCW/modulated
Central wavelength1080±5nm
Size for welding wire0.2-1.2mm
Controling wayCircuit control board, laser welding software + handheld welding head
Welding waysSpot welding/continuous welding
Interface of fiber-opticalQBH
Module life>100000hrs
Cooling styleWater cooling
Laser welding headabout 1.36kg
Polarization StateRandom
Power Consumption(w)4000
Laser welding headWobble welding head
Wobble modeCircle, liner, eight, and infinity
Welding thickness range<3mm
Welding Speed0-150mm/s

Product core components:

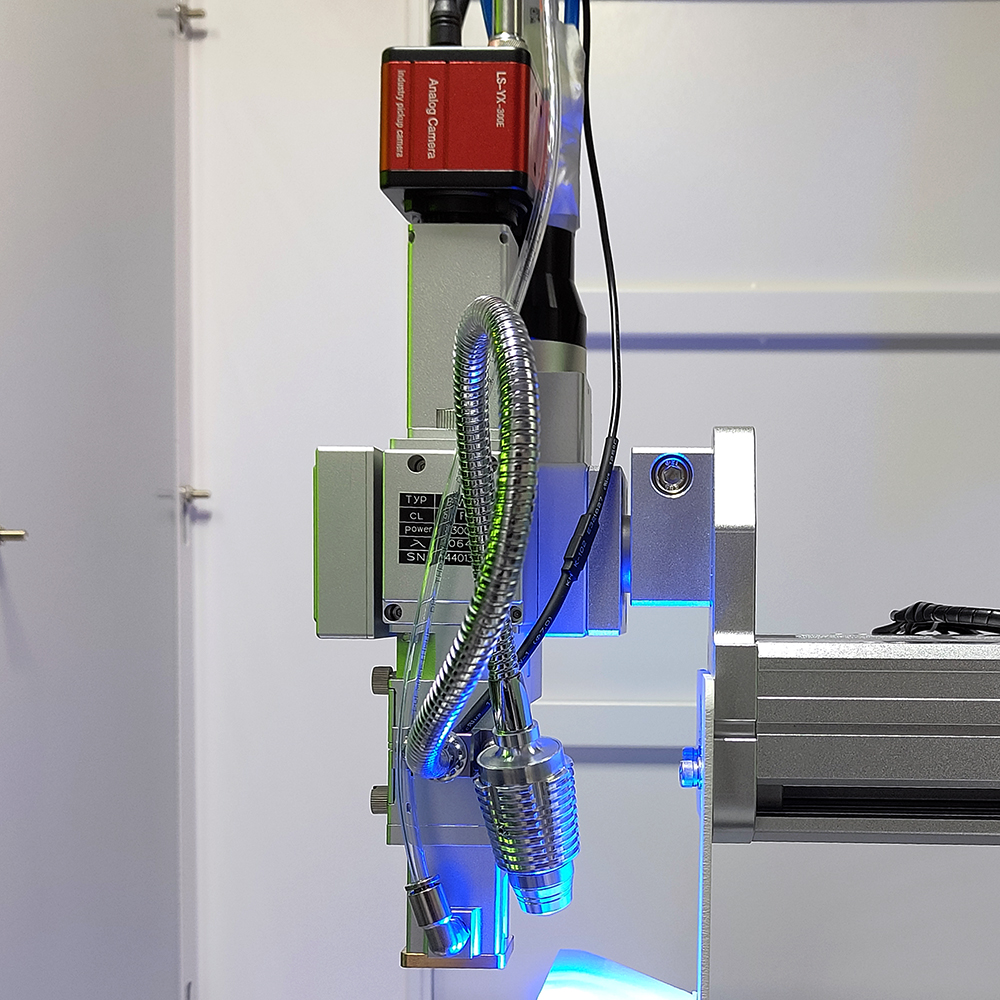

laser welding head

Lifting

Lifting Ruler

Application:

The multi-station closed automatic laser welding machine is transforming the welding process and providing effective solutions for a range of sectors. This machine's cutting-edge technology makes it perfect for precision welding in the electronics, automotive, and aerospace industries.

It is very dependable and perfect for large-scale manufacturing since it guarantees speed, accuracy, and reproducibility.
