14*14mm 2 Phase Nema 6 Bipolar Stepper Motor For Teleconferencing Equipment

Categories Hybrid Stepper Motor
Brand Name: CASUN
Model Number: 14SHD4001-15B
Certification: CE,ROHS,ISO
Place of Origin: CHINA
MOQ: 1pcs-10pcs
Price: US $17.00 - 20.00/ Piece
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100000+PCS+Month
Delivery Time: 7-15 workdays
Packaging Details: Carton:38x29xc14m
Step angle: 1.8degree
Phase: 2
Rated voltage: 6.6V
Rate current: 0.3A
Holding torque: 5.8mN.m
weight: 0.03kg
Customized: The motor can be designed &manufactured with customized request.
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

14*14mm 2 Phase Nema 6 Bipolar Stepper Motor For Teleconferencing Equipment

14×14mm 2 Phase Nema 6 Bipolar Stepper Motor For Teleconferencing Equipment
Product Overview

Compact 14×14mm Nema 6 stepper motor specifically designed for teleconferencing equipment applications. This bipolar 2-phase motor features a black finish and CE certification, delivering reliable performance in space-constrained environments.

Appearance
14×14mm Nema 6 Stepper Motor - Front View
Dimensions

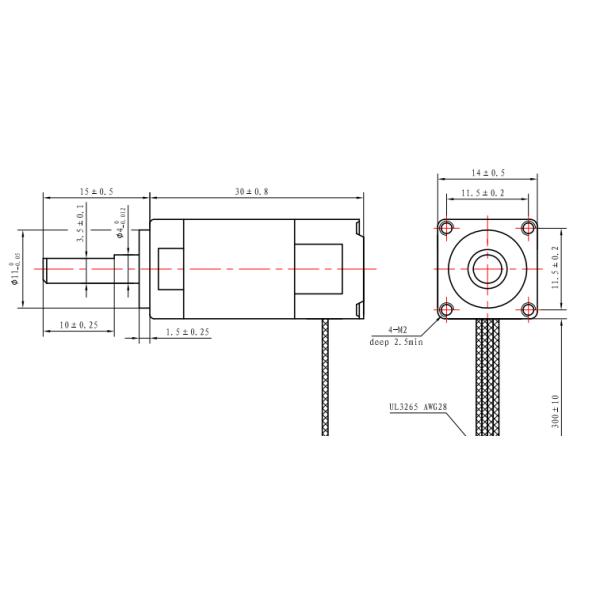

14×14mm Nema 6 Stepper Motor - Dimensional Drawing
Motor Specifications
ParameterValue
Step Angle1.8°
Frame Size14 mm
Number of Phase2 Phase
Rated Current0.3 A
Holding Torque5.8 mN.m
Resistance22 ohm
Inductance4 mH
Rotor Inertia5.8 g-cm²
Motor Weight0.03 kg
Number of Leads4
ConnectionBipolar
Available Options
Encoder
Brake
Gearbox
Connector
Customization Services

If our standard motor cannot meet your requirements, we offer comprehensive customization services including:

  • Special shaft configurations
  • Custom winding parameters
  • Modified installation dimensions
  • Specialized lead wires and connectors
Company Information
  • Location: Guangdong, China
  • Established: 2011
  • Markets: Domestic (63%), Western Europe (12%), North America (9%), Eastern Asia (8%)
  • Employees: 51-100 people
Quality Assurance
  • Pre-production samples before mass production
  • Final inspection before shipment
Payment & Delivery
  • Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery
  • Payment Methods: T/T, L/C, D/P D/A, PayPal
  • Accepted Currency: USD, CNY
  • Languages: English, Chinese, Japanese
